2. To raise the height of the pole, turn the lock actuator (B) counterclockwise and pull up on the telescoping portion (C) of
the pole to raise it to the desired height.
3. Turn the lock actuator (B) clockwise to lock the telescoping portion in place.
4. Hang the IV bags on the IV hook (D).
5. Turn the lock actuator (B) counterclockwise and slide section (C) into the bottom tube.
6. Turn the lock actuator (B) clockwise to tighten.
7. Lift up and pivot the pole down into the storage position (Figure 32).

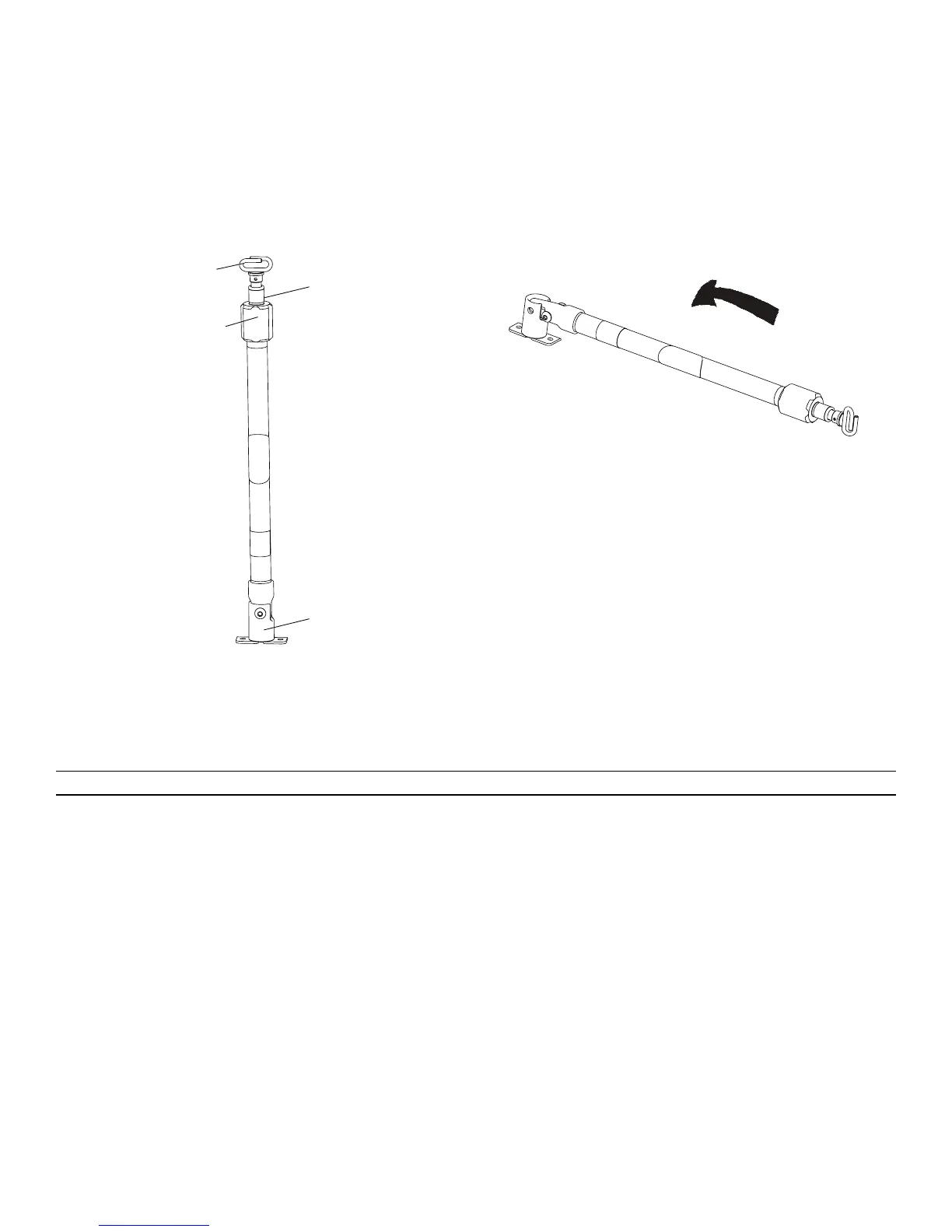

FFiigguurree 3311 –– IIVV ppoollee rraaiisseedd ppoossiittiioonn
FFiigguurree 3322 –– IIVV ppoollee ssttoorraaggee ppoossiittiioonn
PPoossiittiioonniinngg tthhee ooppttiioonnaall tthhrreeee--ssttaaggee IIVV ppoollee
CCAAUUTTIIOONN -- Do not load the IV pole above the safe working load of 25 lb (11.3 kg).
NNoottee -- The dual three-stage IV poles (6500-317-000) are not compatible with either the patient right (6500-315-000) or the
patient left (6500-316-000) three-stage IV pole options.
To position the IV pole (Figure 33):
1. Lift and pivot the IV pole from the storage position and push down until the IV pole locks into the receptacle (A).
2. To raise the height of the pole, turn the lock actuator (B) counterclockwise and pull up on the telescoping portion (C) of
the pole to raise it to the desired height.
3. Turn the lock actuator (B) clockwise to lock the telescoping portion in place.
4. For a higher IV pole, pull up on section (D) until the spring clip (E) connects.
5. Hang the IV bags on the IV hook (F).
6. To lower the IV pole, push in on the spring clip (E) and slide section (D) down into section (C). Turn the lock actuator (B)
counterclockwise and slide section (C) into the bottom tube.
7. Turn the lock actuator (B) clockwise to tighten.
8. Lift up and pivot the pole down into the storage position.
6086-209-001 Rev F.2 39 EN
