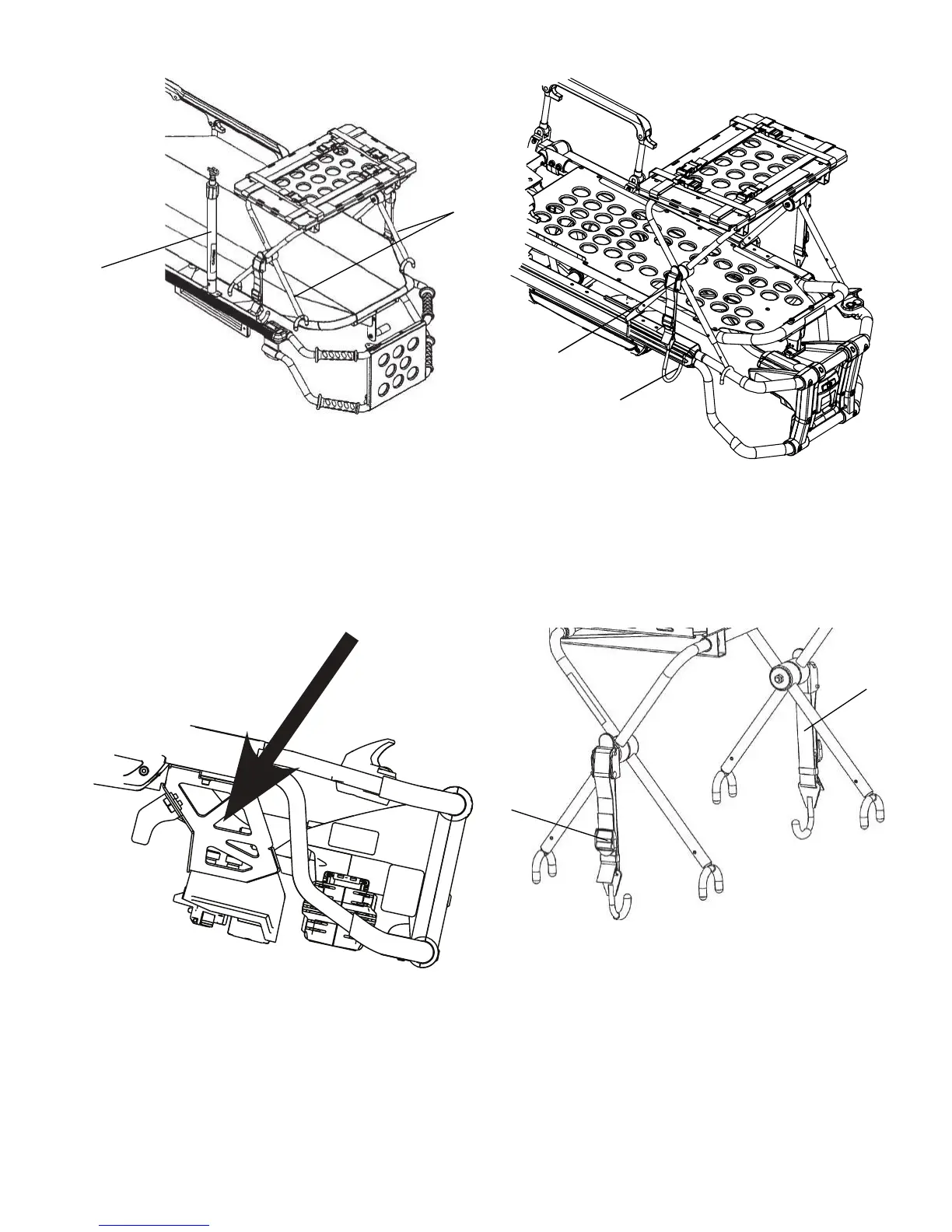

FFiigguurree 2266 –– RRaaiissee IIVV ppoollee aanndd ppoossiittiioonn ddeeffiibbrriillllaattoorr
ttrraayy
FFiigguurree 2277 –– LLaattcchh hhooookk ppllaacceemmeenntt
7. Make sure that the defibrillator platform is secured to the product.
8. Place the defibrillator on the defibrillator platform.
9. Secure the straps (E) to hold the defibrillator on the defibrillator platform (Figure 29).
FFiigguurree 2288 –– TTaabb
FFiigguurree 2299 –– AAttttaacchh ddeeffiibbrriillllaattoorr ppllaattffoorrmm ttoo tthhee ccoott
NNoottee -- If the defibrillator platform is not attached to the product after you connect both latch hooks, unlatch the tab. To
adjust, loosen or tighten the strap and then push the tab up until it locks into place with an audible click.
