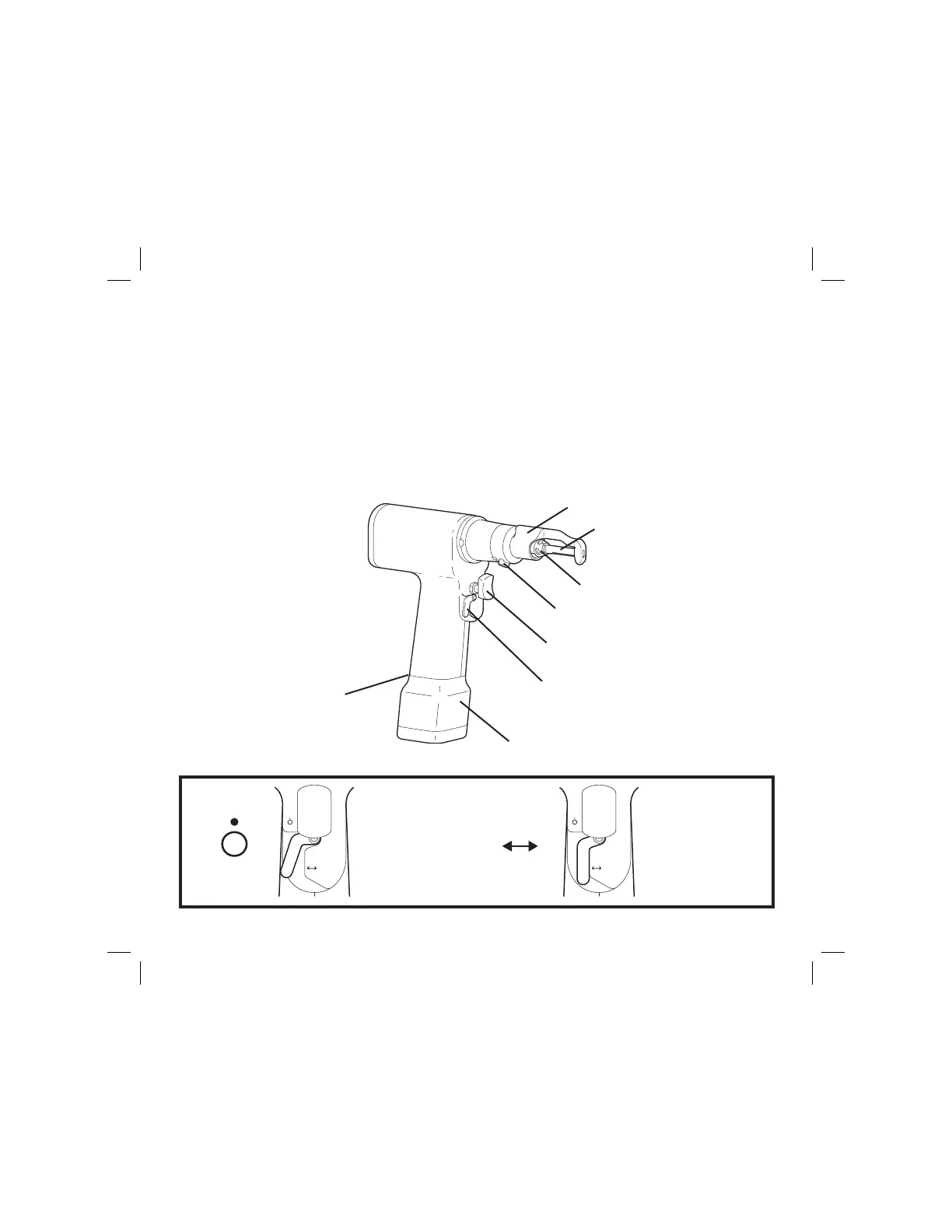

Features and Functions
• Battery Latch - Depress the latch to release the battery pack from the handpiece.
• Battery Pack - Contains a rechargeable battery that provides power to the handpiece.
• Safety Switch - The switch allows the cutting tool to operate in RUN or SAFE mode. The switch prevents
inadvertent operation of the handpiece.
• Blade Collar - The spring-loaded blade collar allows the insertion and release of the blade.
• Blade - The blade teeth may be directed in any of four positions.
• Sternum Blade Guard - Protects soft tissue from coming into contact with the blade.
• Guard Actuating Button - Depress button to release the sternum blade guard.
• Trigger - The trigger is pressure sensitive for variable speed operation.
Battery Pack
Trigger
Sternum Blade Guard
Blade Collar
Symbol Definitions
Guard Actuating Button
Safety Switch
Battery Latch
(other side)
Blade
Safety switch
shown in SAFE
position; the
handpiece can-
not be operated.
Safety switch
shown in the RUN
position; depress
trigger to operate
the handpiece.
RUN
SAFE
SAFE RUN
