Stuart Turner Mainboost MJ3 VM - Dimensions and Noise

- 29 –
9.12 For applications where noise levels are a primary consideration, a sound
attenuation cover is available as an optional extra which reduces sound levels
by up to 15 dB(A) or the Mainsboost Charger™ WM should be considered.
Model
Description
Dim. ‘H1’ Dim. ‘H2’ Dim. ‘W’ Dim. ‘D’
MB 200SV +
MJ3 VM
1280 mm 1300 mm 535 mm 548 mm
MB 250SV +
MJ3 VM
1455 mm 1475 mm 535 mm 548mm
MB 300SV +
MJ3 VM
1740 mm 1760 mm 535 mm 548 mm
MB 450SV +
MJ3 VM
1775 mm 1795 mm 660 mm 660 mm
Model Description Dim. ‘H1’ Dim. ‘H2’ Dim. ‘W’ Dim. ‘D’
MB 200SH + MJ3 HM 815 mm 835 mm 550 mm 1026 mm
MB 250SH + MJ3 HM 815 mm 835 mm 550 mm 1206 mm
Model
Description
Dim. ‘H1’ Dim. ‘H2’ Dim. ‘W’ Dim. ‘D’
MB 100SV +
MJ3 VM
1120 mm 1140 mm 440 mm 485 mm
MB 130SV +
MJ3 VM
1335 mm 1355 mm 440 mm 485 mm
'W'
'D'
'H1'
'H2'
'H2'
'H1'
'D' 'W'

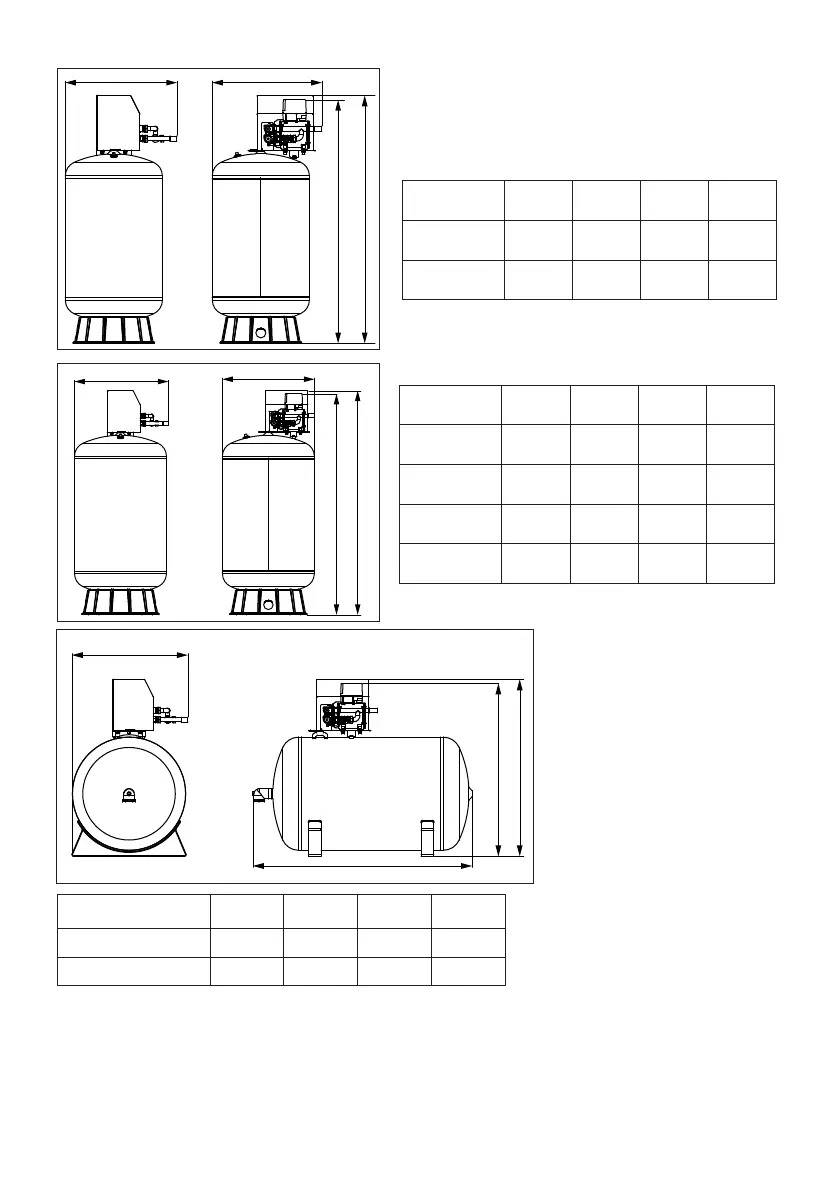

Fig. 30
Fig. 32
'W'
'H1'
'D'
'H2'
Fig. 31
