- 12 –
Cont ...

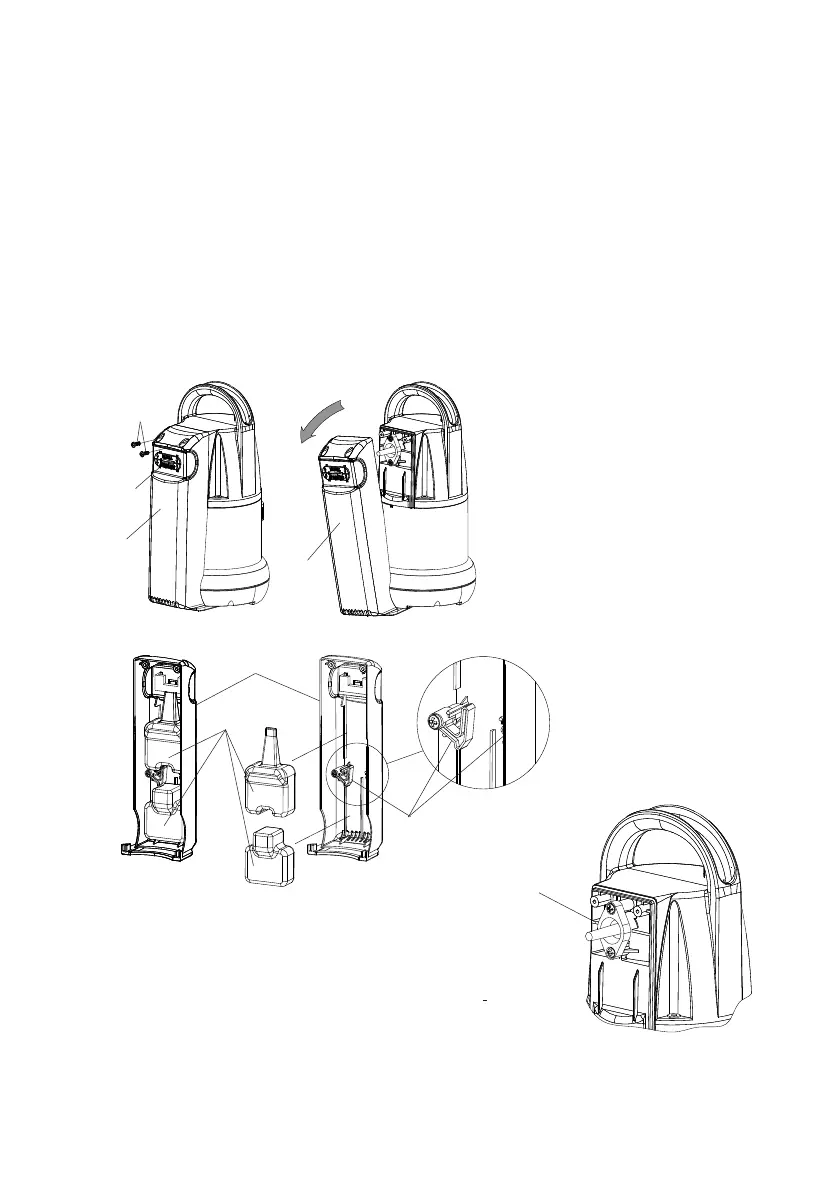

5.16 Float Switch Cleaning:
The float switch assembly can be cleaned as follows:-
1) Move the selector (1) to the ‘Automatic’ (down) position Fig. 8.
2) Remove the two screws (2) located in recesses at the top of the float
housing (3) Fig. 8.
3) Gently pull the float housing (3) away and down from the pump body – DO
NOT INVERT float housing (3) Fig. 9.
4) Note the position of the two floats (4) within the float housing (3) Fig. 10.
5) Remove and clean the floats (4) Fig. 11.
6) Clean the inside of the float housing (3) and the float ratchet stops (5)
ensure these stops are clear of all debris and free to move Fig. 11 & 12.
7) Clean around switch protrusion (6) Fig. 13.
8) Reassembly is the reverse of the above procedure.
9) Refer to commissioning section to re-start the pump.
Fig. 9Fig. 8
Fig. 10
Fig. 11
Fig. 12
Fig. 13
3
3
4
1
2
3
5
6
