D21m System
6-14 D21m Modules Date printed: 25.09.07
S3
S5
S4
12345678
*S1
*S2
12345678
12345678
ON
Default
Setting:
ON
Default Setting:

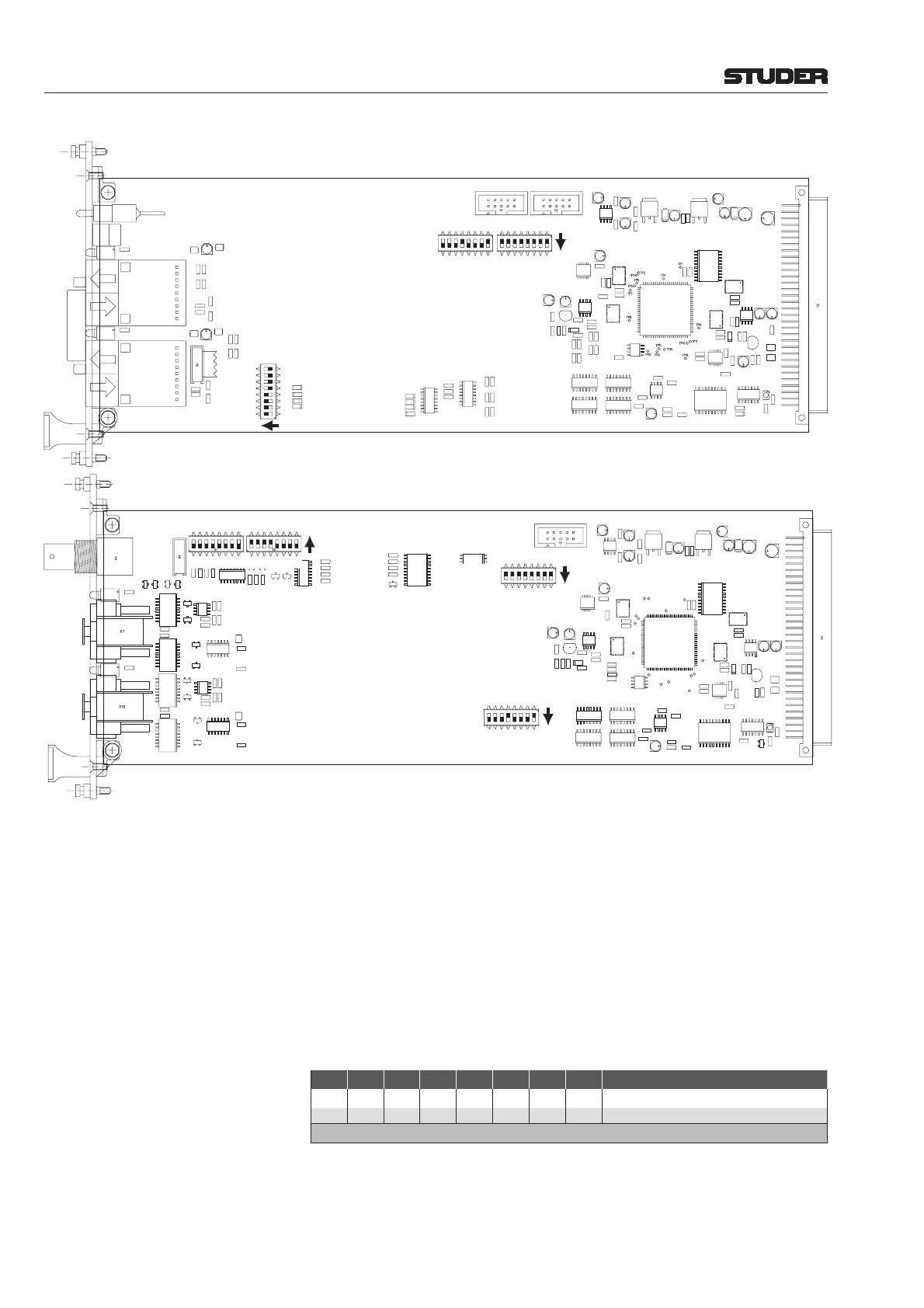

MADI I/O Card, Optical Versions 1.949.430 / 1.949.431
Default
Setting:
Default
Setting:
Default
Setting:
ON
ON
ON
12345678
12345678
1234567812345678
S3
S5**S1
S4
MADI I/O Card, Twisted-Pair Version 1.949.433
Switches: *S1 (On versions 1.949.430, 1.949.431 only)
Toggle switch for 64 (factory default) or 56 channel selection.
**S1 (On version 1.949.433 only)
In case of connecting two cores, they must be synchronized. The twisted-pair
cable version of the MADI card provides a reserved wire pair for both the
main and aux RJ45 sockets on which the sync signal can be transferred. The
sync transfer direction (from master to slave) is set using the DIP switches
S1 and S4.7/.8. Please note that in such a case the twisted-pair wiring has to
be done with a crossover cable. On the slave core, the WCLK output must be
patched to the WCLK input of the audio clock card.
(refer to the block diagram on the opposite page)
1 2 3 4 5 6 7 8 Setting
OFF OFF OFF OFF ON ON ON ON
Card is Master (factory default)
ON ON ON ON OFF OFF OFF OFF Card is Slave
NO OTHER SETTINGS ALLOWED !
