17
TEST PROCEUDRES

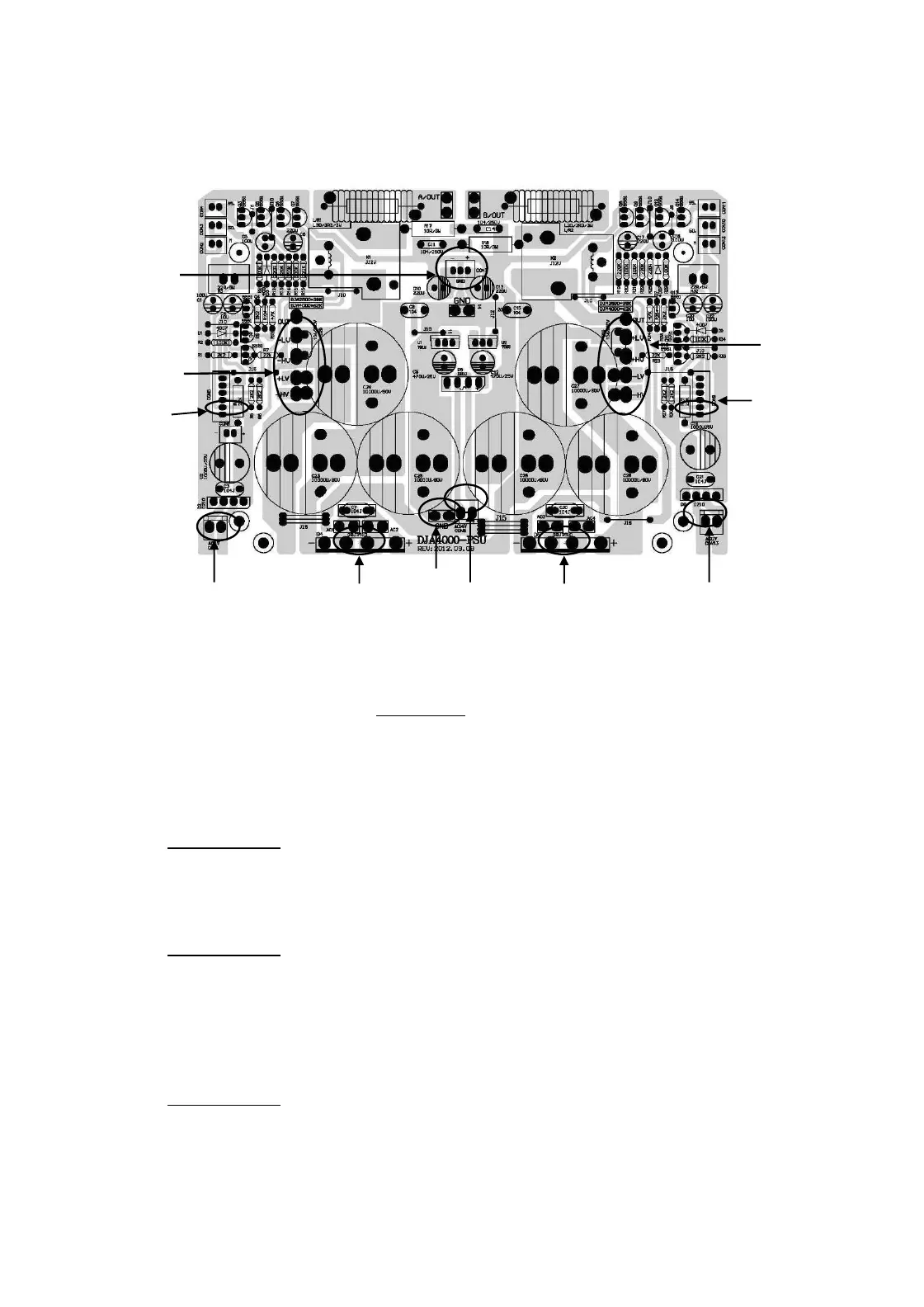

A. PSU TEST PROCEDURE
GND
AC1 AC2 AC3 AC4 AC5
Make secondary wire connections of transformer and measure the voltages as mentioned below
- Keep on/off switch in off.
- Keep Variac in series mode.
- Switch on the power supply. Mains voltage
: 240V, 50Hz.
- Check that mains voltage is not less than 175V
- If there is no loading then switch Variac to parallel mode.
- Check the AC/DC voltages as mentioned below.
DJA2500:
AC VOLATGES
A) AC1, AC5: 13V
B) AC2: 88V
C) AC3: 31V
D) AC4: 176V
DC VOLTAGES
All DC voltages are with reference to GND
A) DC1, DC5: +15.5V
B) DC2, DC4: HV= +/-120V, LV=+/-60V
C) DC3: +/- 11.7V
DJA4000:
AC VOLATGES
E) AC1, AC5: 13V
F) AC2: 104V
G) AC3: 31V
H) AC4: 205V
DC1
DC5
DC2
DC3
DC4
