Studiomaster DPA 2000 - Input-Output Connections

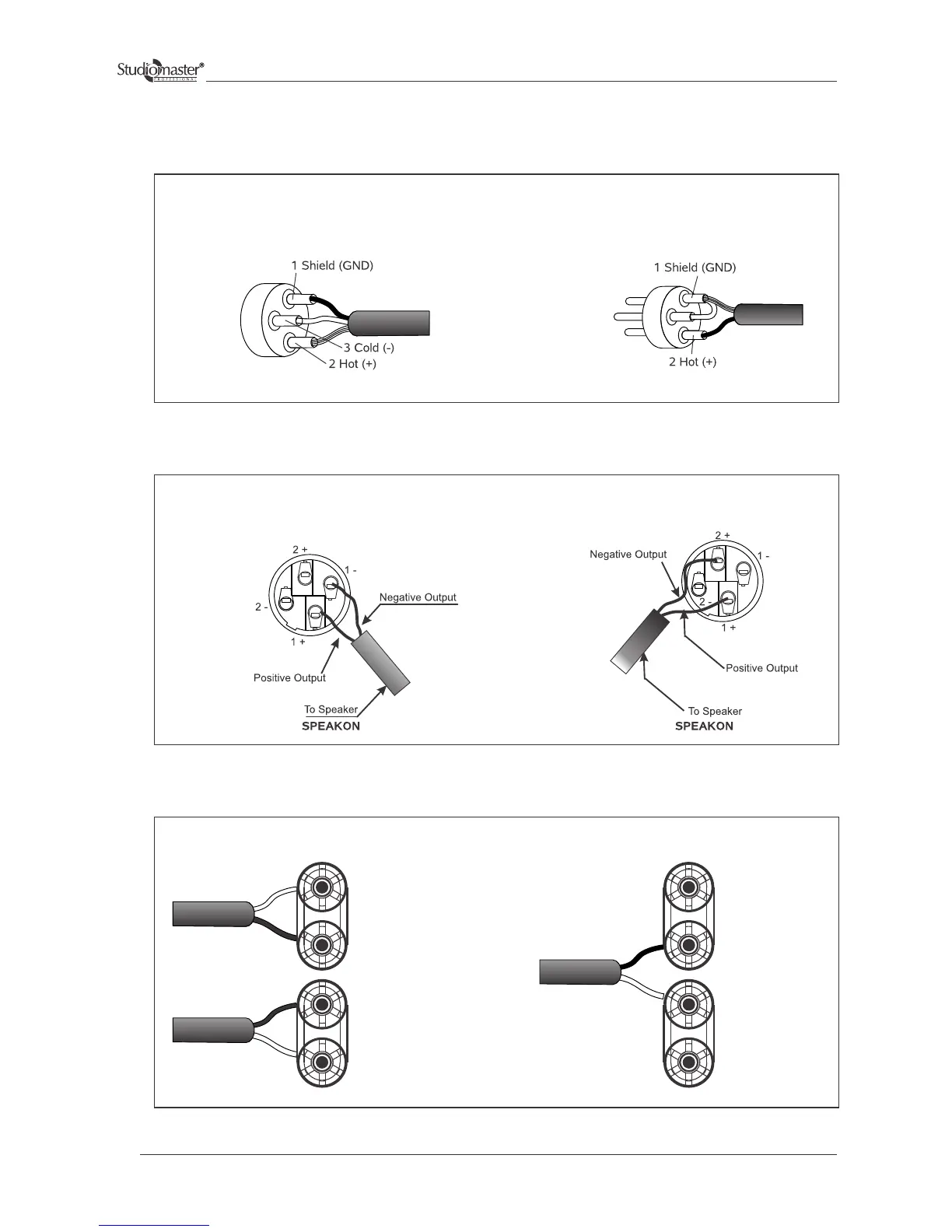

Input-Output Connections
FIG. 1 FIG. 2
FIG. 3
FIG. 5 FIG. 6
FIG. 4
PARALLEL / STEREO OUTPUT CONNECTIONS
PARALLEL / STEREO BINDING POST CONNECTIONS BRIDGE MODE BINDING POST CONNECTIONS
UNBALANCED INPUT CONNECTIONSBALANCED INPUT CONNECTIONS
BRIDGE OUTPUT CONNECTIONS
(CH 1 OUTPUT CONNECTOR)
XLR XLR
-STEREO -STEREO
-VE OUTPUT
+VE OUTPUT
+VE OUTPUT
+VE OUTPUT
-VE OUTPUT
-VE OUTPUT
CH1 OUTBINDING POST CH1 OUTBINDING POST
+STEREO/+BRIDGE +STEREO/+BRIDGE
+STEREO/-BRIDGE +STEREO/-BRIDGE
CH2 OUTBINDING POST CH2 OUTBINDING POST
-STEREO -STEREO
10
