Setup & Operation
Stereo Mode Configuration
In STEREO mode, both channels 1 & 2 are fully independent of each other. The balanced / unbalanced inputs can be
connected either to a stereo signal source or two independent mono signal sources. Each channel can separately drive
loudspeaker loads of 8 ohm or 4 ohm or 2 ohm.

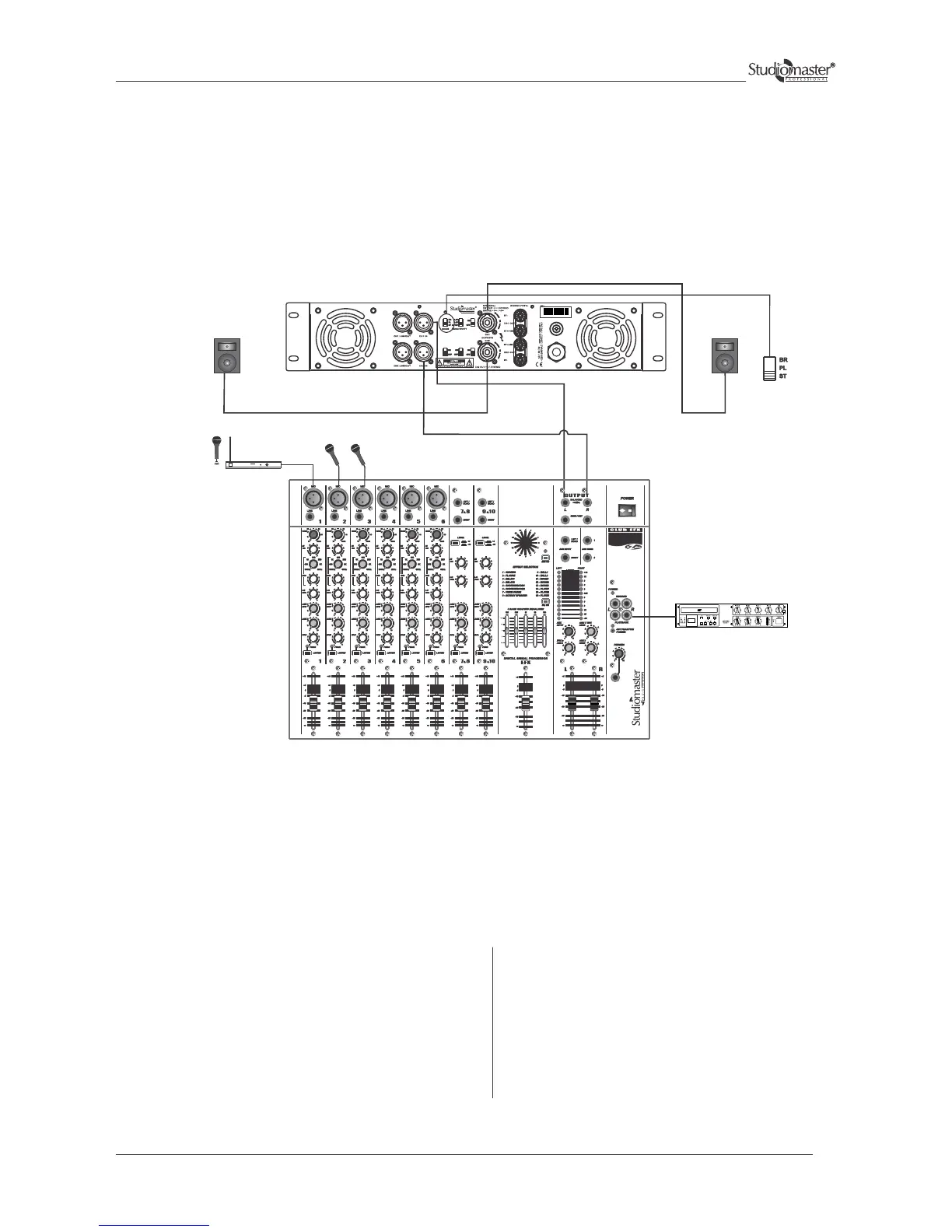

Connect the Left and Right outputs of a mixer to a channel
1 and 2 inputs of the amplifier respectively. Inputs can be
wired as per fig.1 & 2 (Input Connections for Balanced
and Unbalanced Mode)
Connect a speaker system (8 ohm / 4 ohm / 2 ohm) on the
output terminal of each channel.
Either use the speakon connector & wire these as per fig.3
(Output Connections for Stereo / Parallel Mode) or use
Binding Post as per wire diagram of fig. 5.
To select STEREO mode, keep the slide switch,
provided at rear panel, in STEREO position.
Adjust the individual volume controls of each channel
on the front panel to obtain the desired output level.
The level indicator LEDs glow to indicate the
presence of signal at the output terminals.
P A MIXER
CD PLAYER
SPEAKER SYSTEM
(IMP 8Ω / 4Ω / 2Ω)
SPEAKER SYSTEM
(IMP 8Ω / 4Ω / 2Ω)
