5. Installation
5.1 Selection of the installation site
The A/C unit is designed for the inside installation on a level base. The A/C unit is not appropriate for opera-
tion in office rooms or other rooms sensitive to noise.
DANGER
Risk of explosion
The unit may not be operated in an explosive atmosphere!




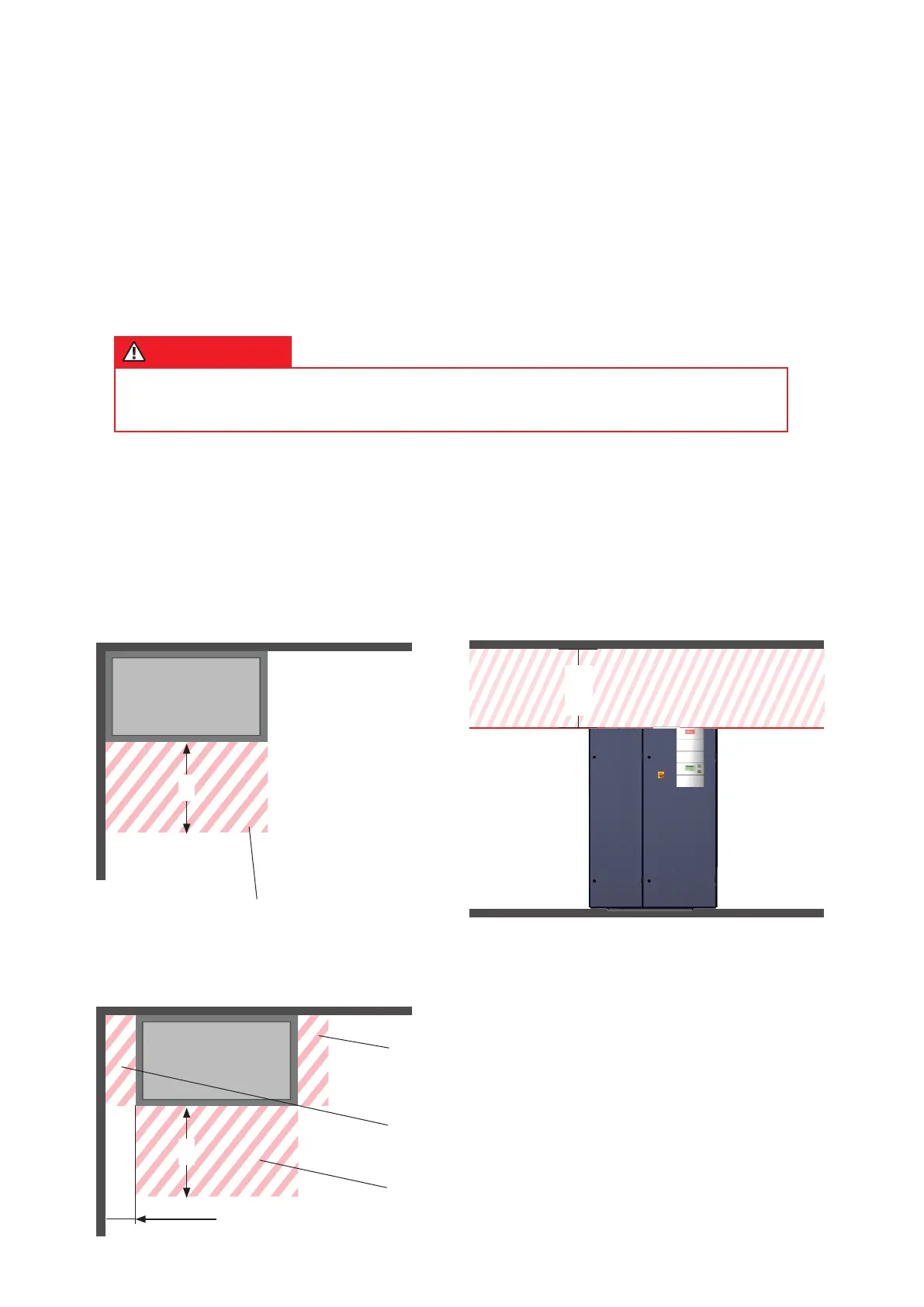

Air intake area for Downflow units
Air outlet area for Upflow units without duct connection
Downflow unit
The A/C unit must be accessible from the front.
Maintenance clearance
Upflow unit
The A/C unit must be accessible from the front and requires
space on the left and right side for the supply connections.
Electrical connection
Supply connections for:
- humidifier (optional)
Maintenance clearance
Clearance for chilled
water connection
