Stulz ASU series - Discharge Plenum

5
B
L1
L1
D
C
B
L1
L1
D
C
500 400
500 400
400
T
T
T1
Baugröße 1 2 3 4 5 7
B mm 950 1400 1750 2200 2550 3110
C mm 75 100 45 112,5 100 140
D mm - - 905 1287,5 1450 1770
L1 mm 800 1200 2800 2800 21000 21200
T mm 884 884 884 884 884 974
T1 mm 600 600 600 600 600 800
© STULZ GmbH – all rights reserved EN/11.2016
air side connection
11.3.4 Discharge plenum

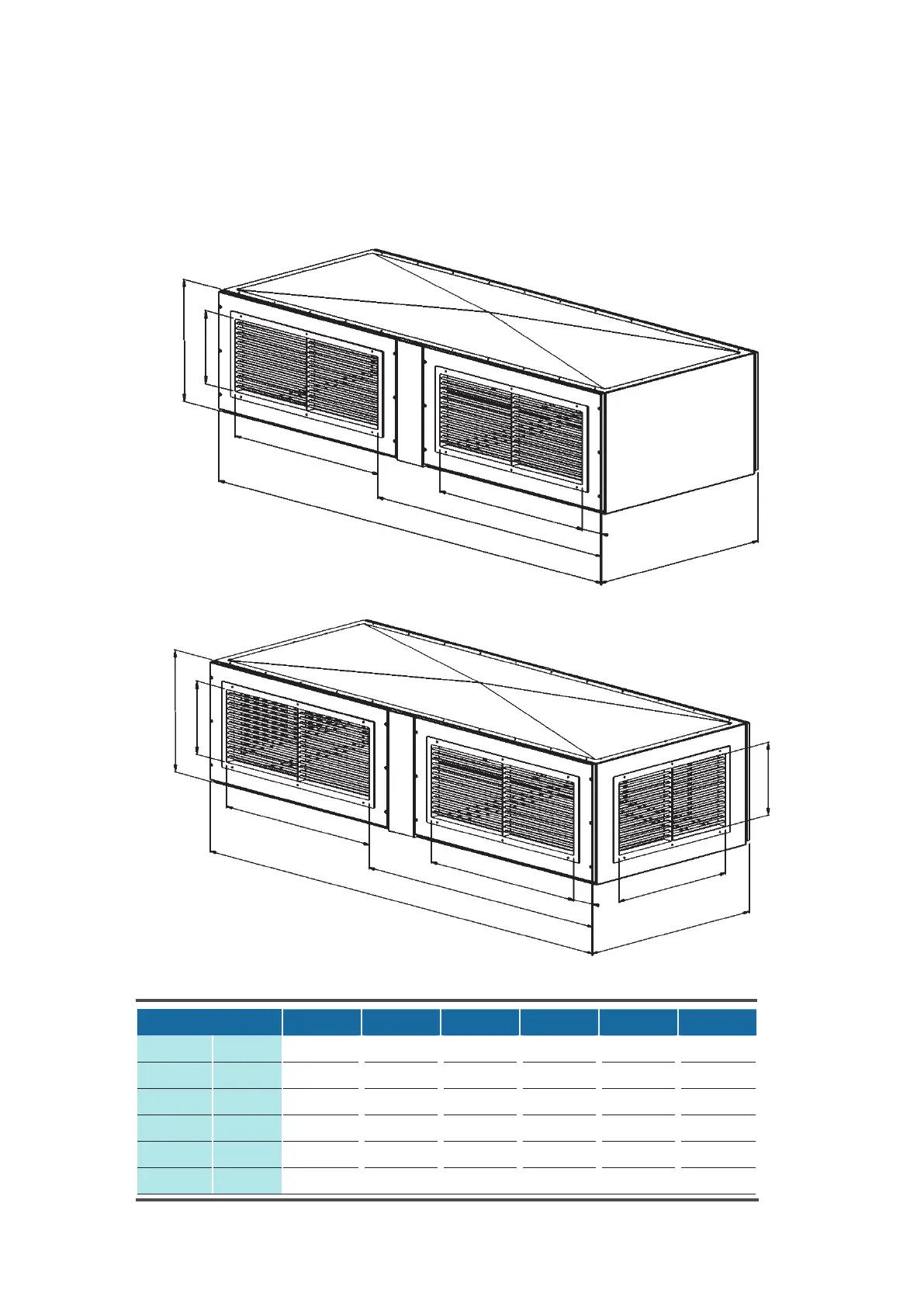

Discharge plenum with front and side grilles
Only one front grille for size 1, 2.
The discharge plenum is availale in two versions.
• Set the discharge plenum on top of the unit and screw it with the unit.
Discharge plenum with front grilles
Cabinet size
