cyberair 3PrO cw2 Original instructiOns
5.2 Positioning the unit
You will need two mounting aids as shown below.
When placing the unit on a raised floor stand, this must be installed first. Refer to the instructions in the chap-
ter „Raised floor stand“.
WARNING
Risk of crushing limbs
A defective lifting device can lead to the uncontrolled fall of the A/C unit.
Do not stay under suspended loads! Wear safety boots.

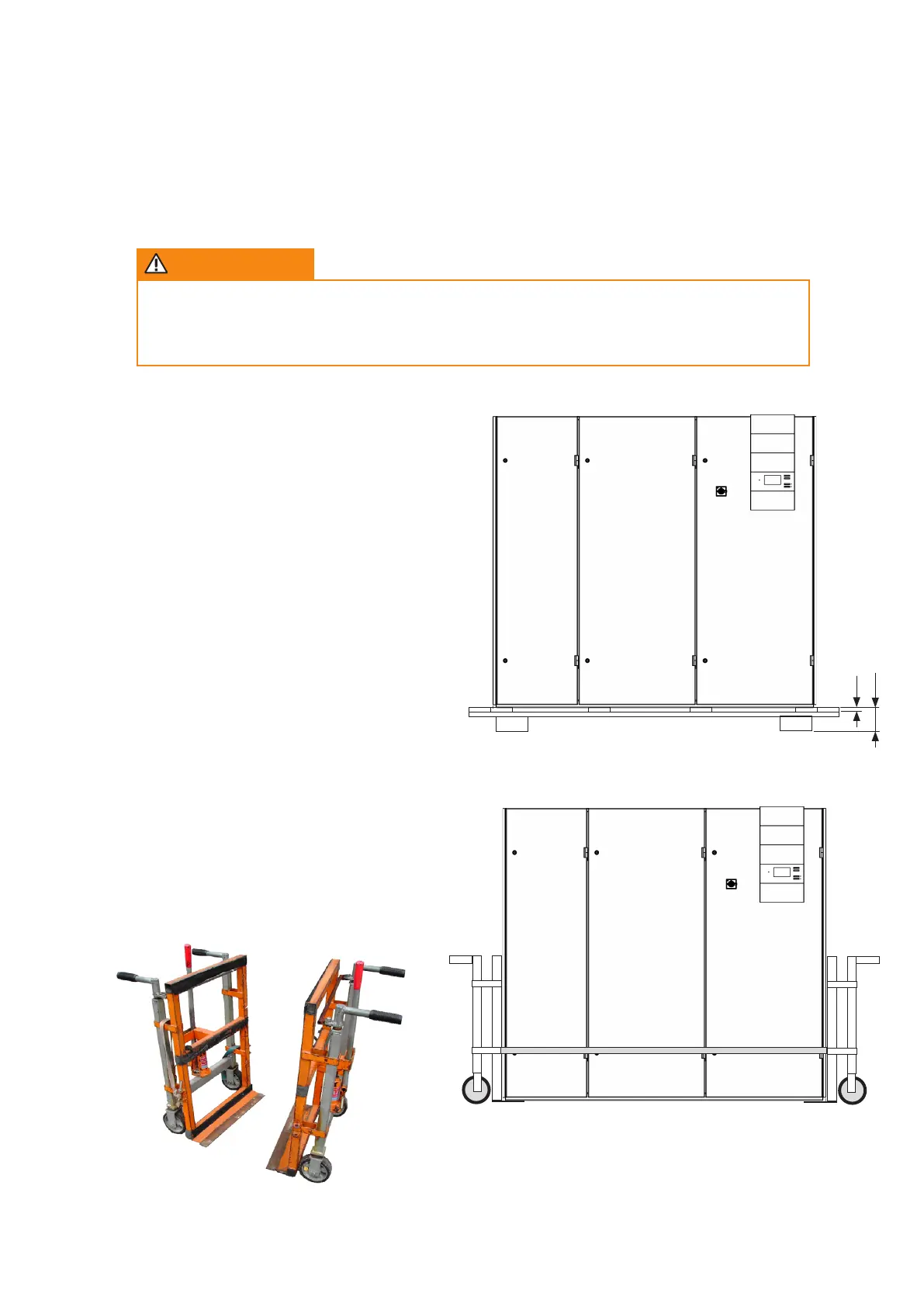

Mounting aids
Pallet height
Transport with a fork lift

as possible to the installation site.

right unit side.

lift, the units of cabinet size 57 with two fork
lifts by 50mm.


side.


at a sufficient height so that the weight of the
A/C unit lies on the mounting aids. Secure the
mounting aids by belts around the unit.


installation site.

the mounting aids.
A/C unit transport with mounting aids
