7
150
H
Baugröße 1 2 3 4 5 7
A mm 950 1400 1750 2200 2550 3110
B mm 190 187 237 237 275 187
C mm 650 1100 1400 1800 2000 1200/1300
D mm 147 97 107 107 107 198
E mm 650 675 675 675 675 675
F mm - - - - - 1797
T mm 890 890 890 890 890 980
H mm 120 175 175 175 175 175
BC
FC
A
890
ED
25
T
© STULZ GmbH – all rights reserved EN/11.2016
air side connection

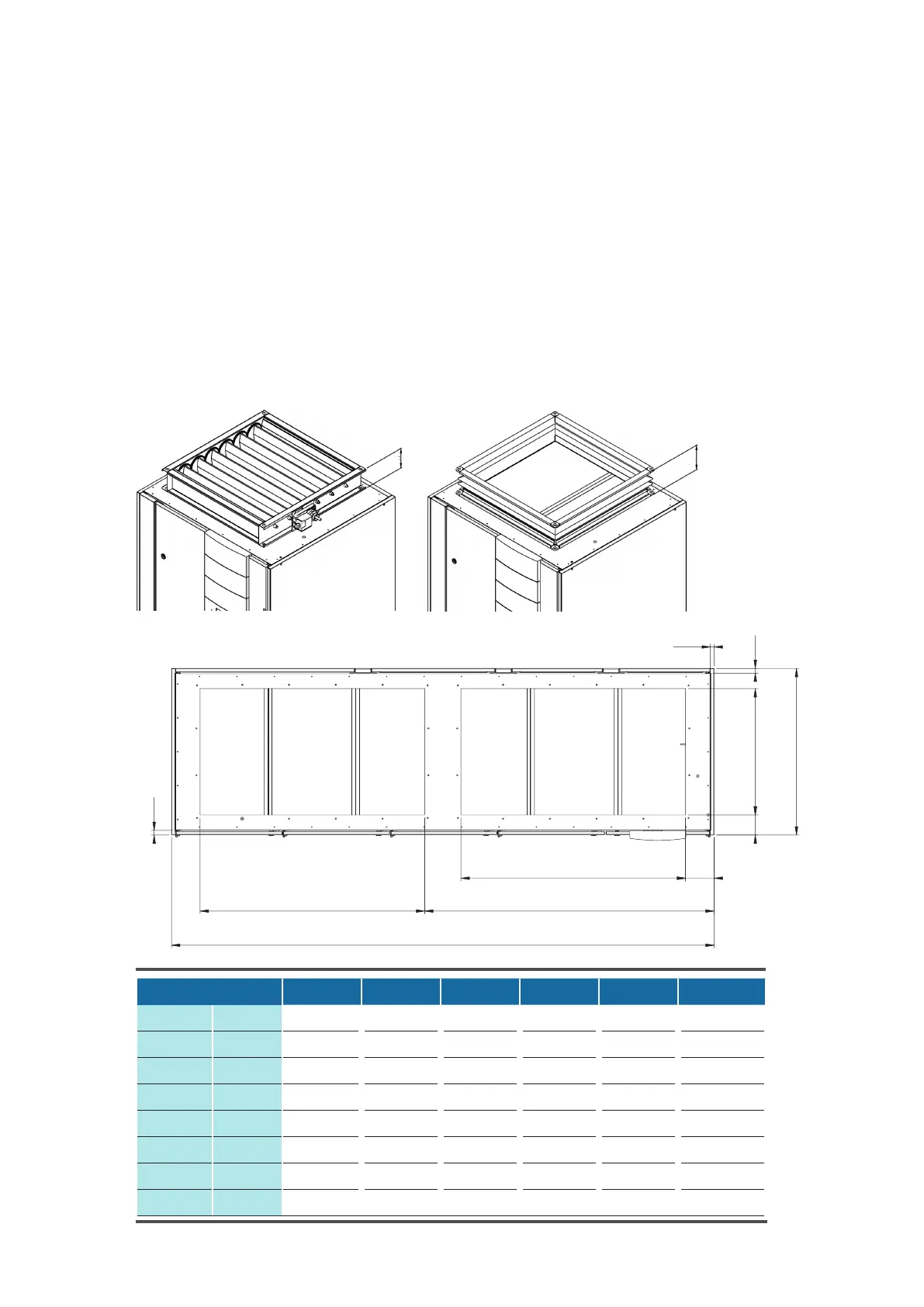

11.3.7 Adapter plate with damper or flexible connection
Adapter plate with damper Adapter plate with flexible connection
If the air side has to be
continued by a duct, the
installation of a flexible
connection is necessary.
Take into account the
installation of pressure
compensations in the
flexible connection.
- Connection on the unit
The adapter plate serves to attach a damper or a flexible connection on top of the unit or a duct. First install
the actuator onto the louver shaft on the right side looking at the unit front. Then fix the louver with the actua-
tor on the adapter plate. Now mount the adapter plate with pre-mounted louver on the unit top by means of a
screw connection.
The damper actuator, which is controlled via a 24 V signal by the controller, has to be electrically connected.
For this the delivered cable must be connected at the motor, be routed through an opening in the adapter
plate into the unit and then be connected at the controller in the electric box according to the electric diagram.
In downflow units route the cable through the side panel.
Cabinet size
