Installation STULZ UltraSonic -System for duct humidication ENS 14 A - 18 A-
Waste water
Drinking water
Systemskizze für Ultrasonic ENS 1200 A - ENS 9600 A mit proportionaler Steuerung
Voltage supply
230V/50-60Hz/1Ph
Voltage supply
230V/50-60Hz/1Ph
Waste water

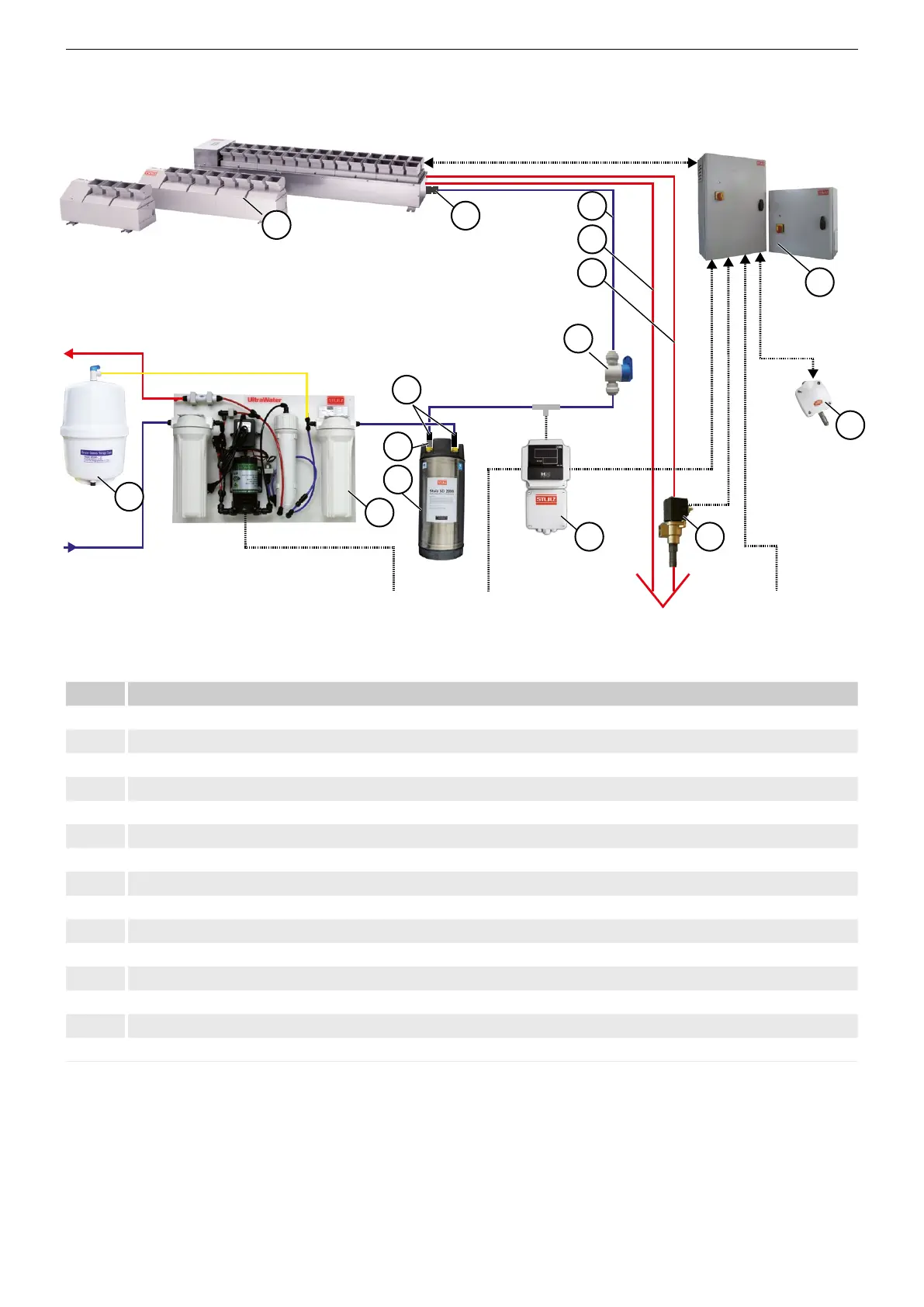

7.1. Installation diagram
13
1
2
4
3
5
6
12
14
15
11
10
9
8
7
Item Name
1 UltraSonic ENS 14 A - 18 A
2 Connector for PE plastic tube
3 Pipe for demineralized drinking water Ø 6 mm
4 Overow pipe Ø 1/2“
5 Drainage pipe Ø 1/2“
6 Plastic stop cock
7 USM-master controller, USM 1303: ENS 14 - 18 A
8 0-10 V DC control signal or humidity sensor
9 Flush valve 48 V AC
10 STULZ conductivity measuring kit
11 Adapter 6 mm / 3/4"
12 STULZ ion exchanger
13 Non-return valve
14 STULZ UltraWater 3-stage reverse osmosis system 120 and 400
15 11 liter water tank for STULZ UltraWater
