Stulz ENS Series - Connecting the Pipe for the Demineralized Drinking Water

DE / 06-2016 / 1000687 © STULZ GmbH, Hamburg
-
42
-
Installation STULZ UltraSonic -System for duct humidication ENS 14 A - 18 A-
ULTRASONIC
Connection for deminer-
alized drinking water
Ø 6 mm stainless steel
Cutting ring
(in product package)
Union nut
(in product package)
Inlet joint on ultrasonic humidier

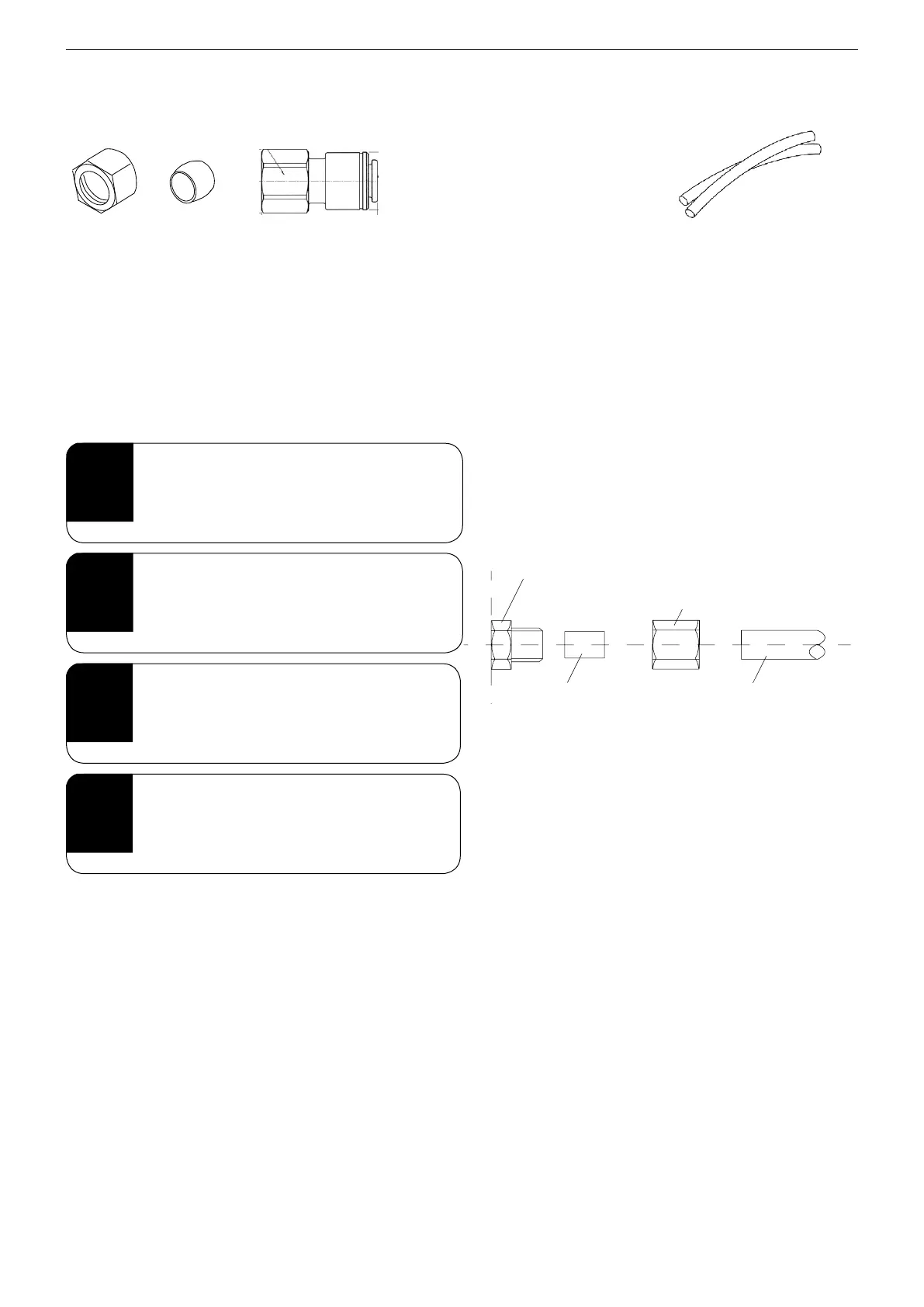

7.4.1. Connecting the pipe for the demineralized drinking water
Proceed as follows to connect the pipe for the demineralized drinking water:
Connection to stainless steel tube:
The supplied connection material consists of the following: Optional accessories
2
Push the union nut with cutting ring over
the stainless steel tube.
1
Clean all components (stainless steel
tube, threaded joints).
3
Screw the union nut onto the inlet joint on
the ultrasonic humidier.
4
Check that connections are secure.
Threaded joint
for stainless steel
tube
connection 6 mm
Connector
for PE plastic tube
connection 6 mm
