STULZ UltraSonic -System for duct humidication ENS 14 A - 18 A- Installation
Proceed as follows to mount the ultrasonic humidier in the duct:
1
Choose a suitable position for the ultra-
sonic humidier.
2
Afx the fastening elements of the chosen
mounting system in the duct using the
specied hole spacing.
3
a) Bracket
Secure the humidier to the wall bracket
with the M6 bolts.
b) Safety tray
Install the humidier in the safety tray.

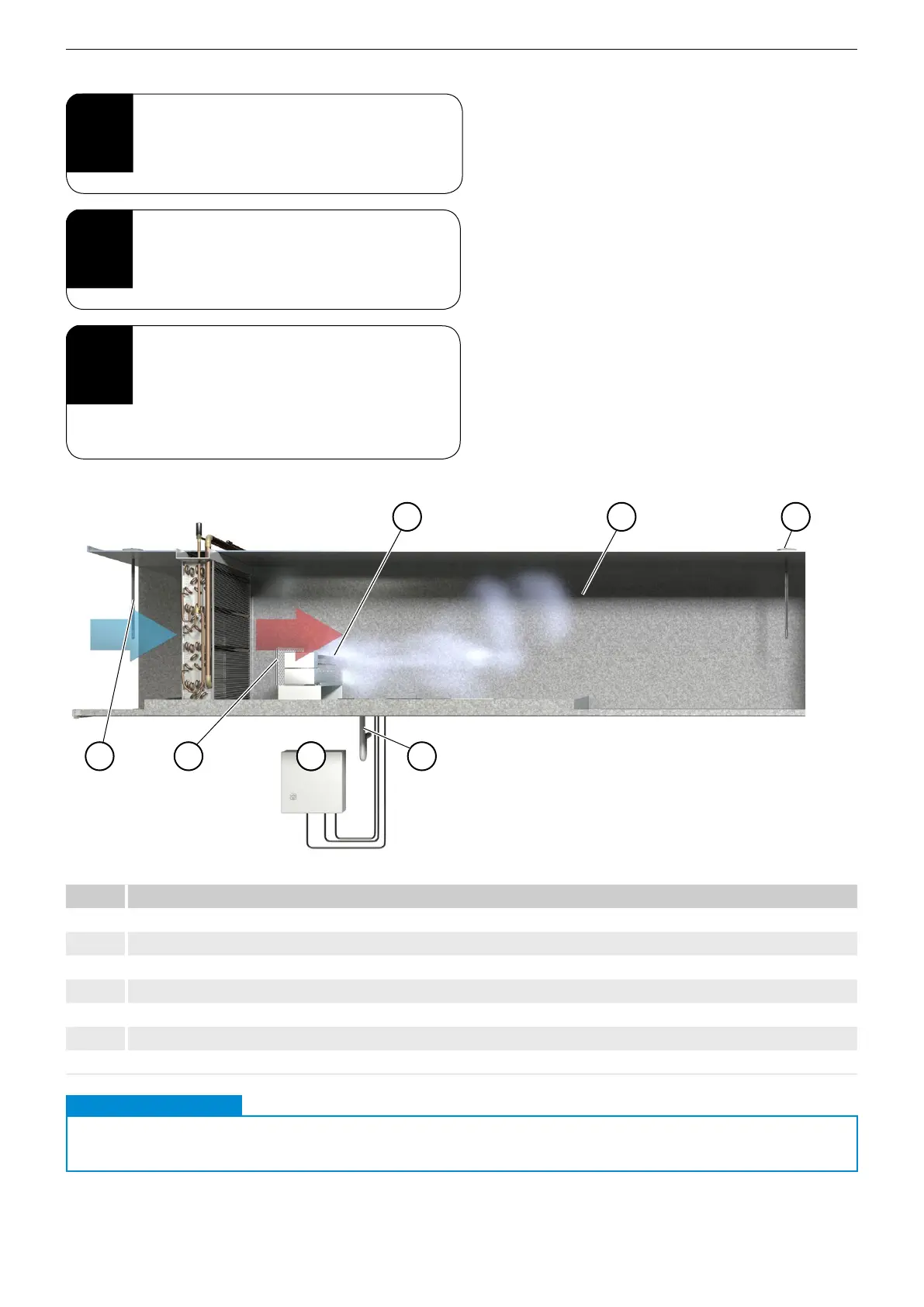

Item Name
1 UltraSonic ENS 14 A - 18 A
2 Duct section of stainless steel
3 Supply air humidity sensor or hygrostat
4 Water drain (provide siphon)
5 Control cabinet USM/USS
6 Perforated plate for non-laminar incoming ow. Requirement: open diameter 60 %
7 Return air humidity sensor
4
7
3
4
1
2
6
5
CAUTION
Safety tray.
STULZ recommends the use of a safety tray along the entire humidier distance.
Note
