ASSEMBLY ENS SERIES

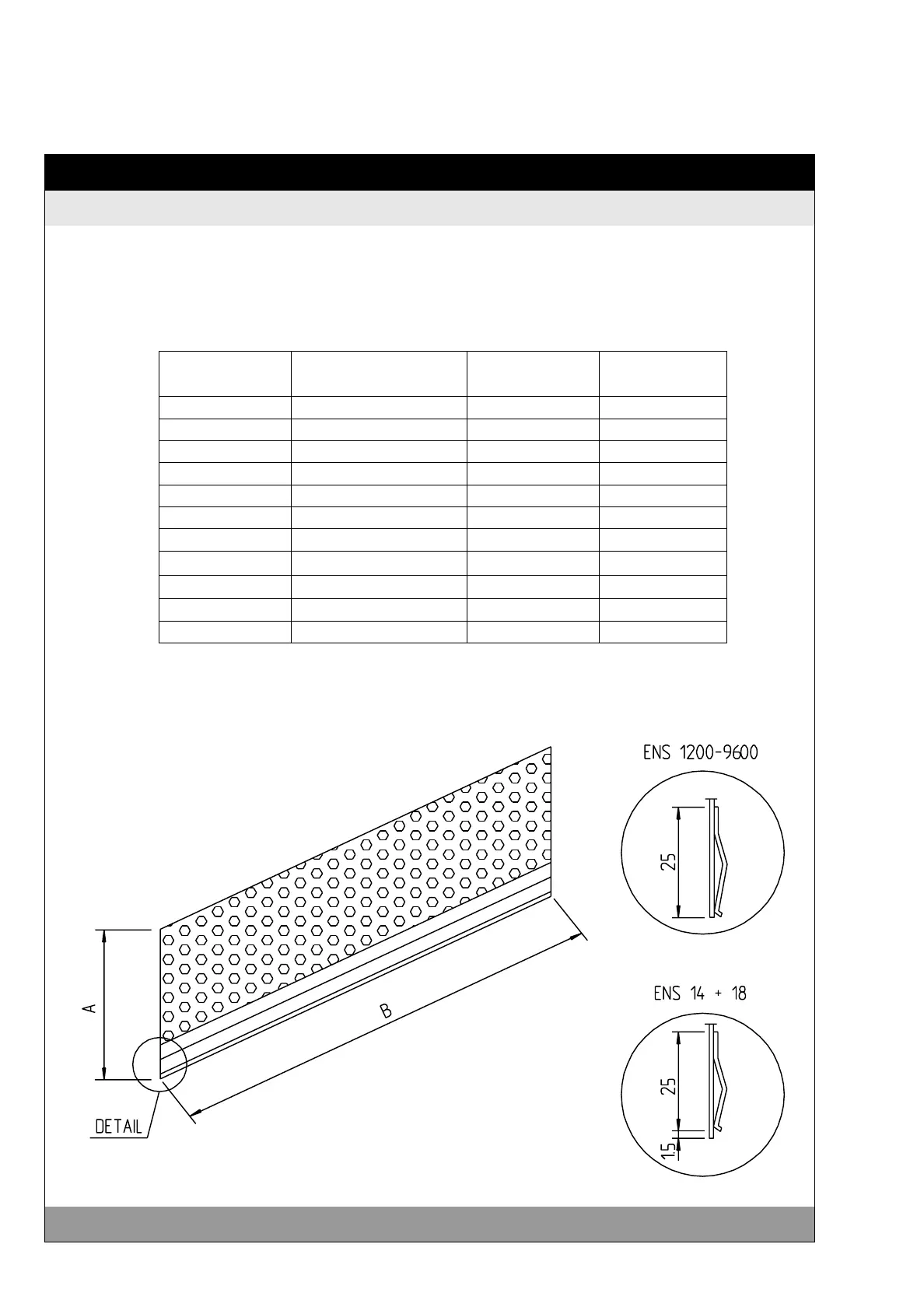

Illustration no. 1
Perforated plate Ultrasonic ENS
Article-no. Humidifier type A [mm] B [mm)
M03191 ENS 1200 185 136
M03190 ENS 2400 185 255
M03189 ENS 3600 185 375
M10431 ENS 4800 185 495
M03188 ENS 6000 185 615
M03187 ENS 7200 185 735
M03186 ENS 8400 185 855
M03184 ENS 9600 185 975
M10432 ENS 14 165 705
M10433 ENS 18 165 870
Material: Aluminium perforated plate
A FRE approx.. 38 %
d hole 3.2 mm
d= 1 mm
