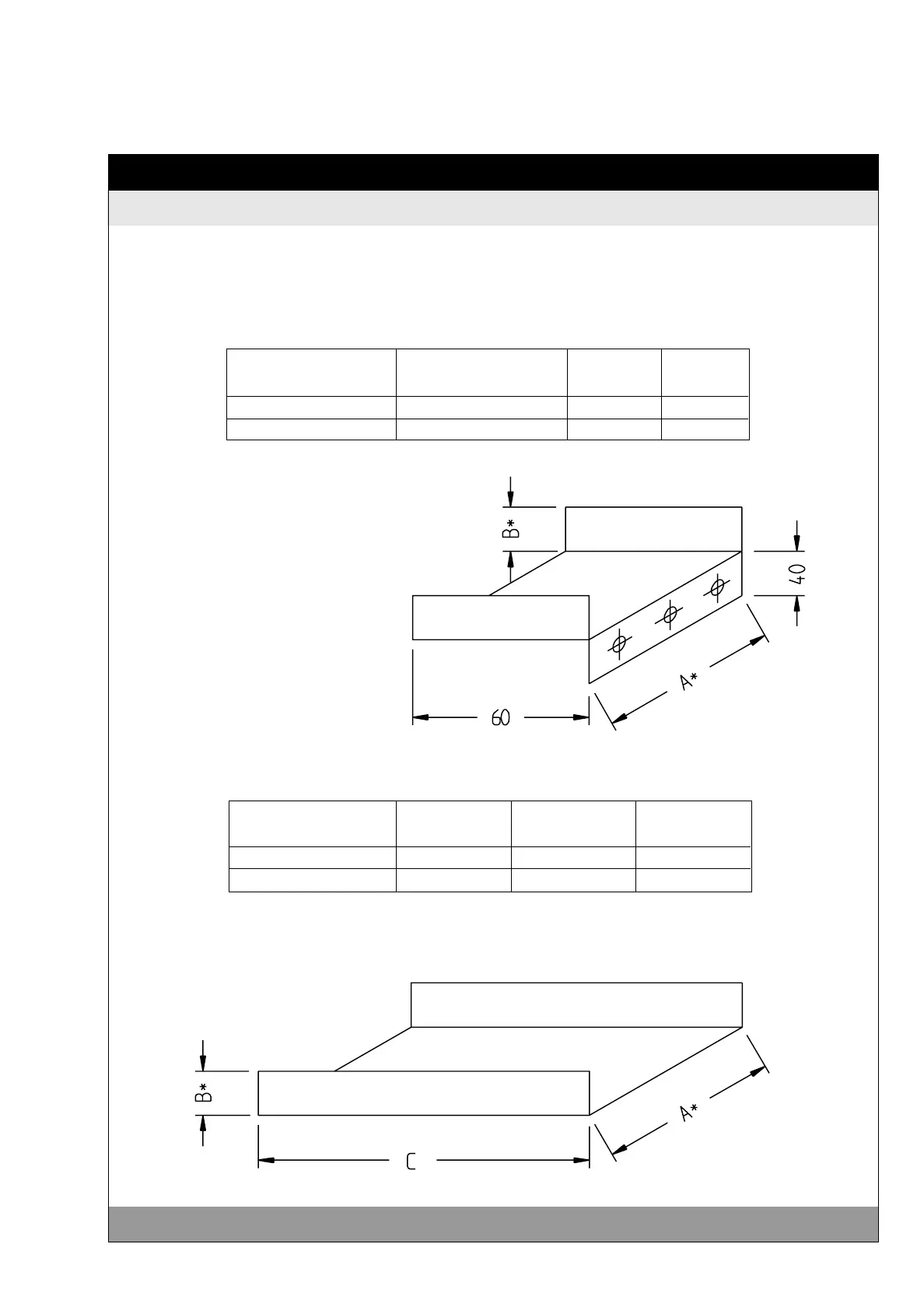

Illustration no. 8: Assembly design ENS
Brackets
Article-No. Type A * B *
* inside dim.
M03180 ENS 1200 - 9600 173 25
M03183 ENS 14 +18 273 40
Material: V2A 1mm
Illustration no. 8a:
U-shaped bar
Type A * B * C
*Inside dim
ENS 1200 - 9600 170 25
ENS 14 +18 270 40
Material: V2A 1mm
ASSEMBLY ENS SERIES
