ULTRASONIC
58
Copyright STULZ GmbH 02/1997
ASSEMBLY ENS SERIES

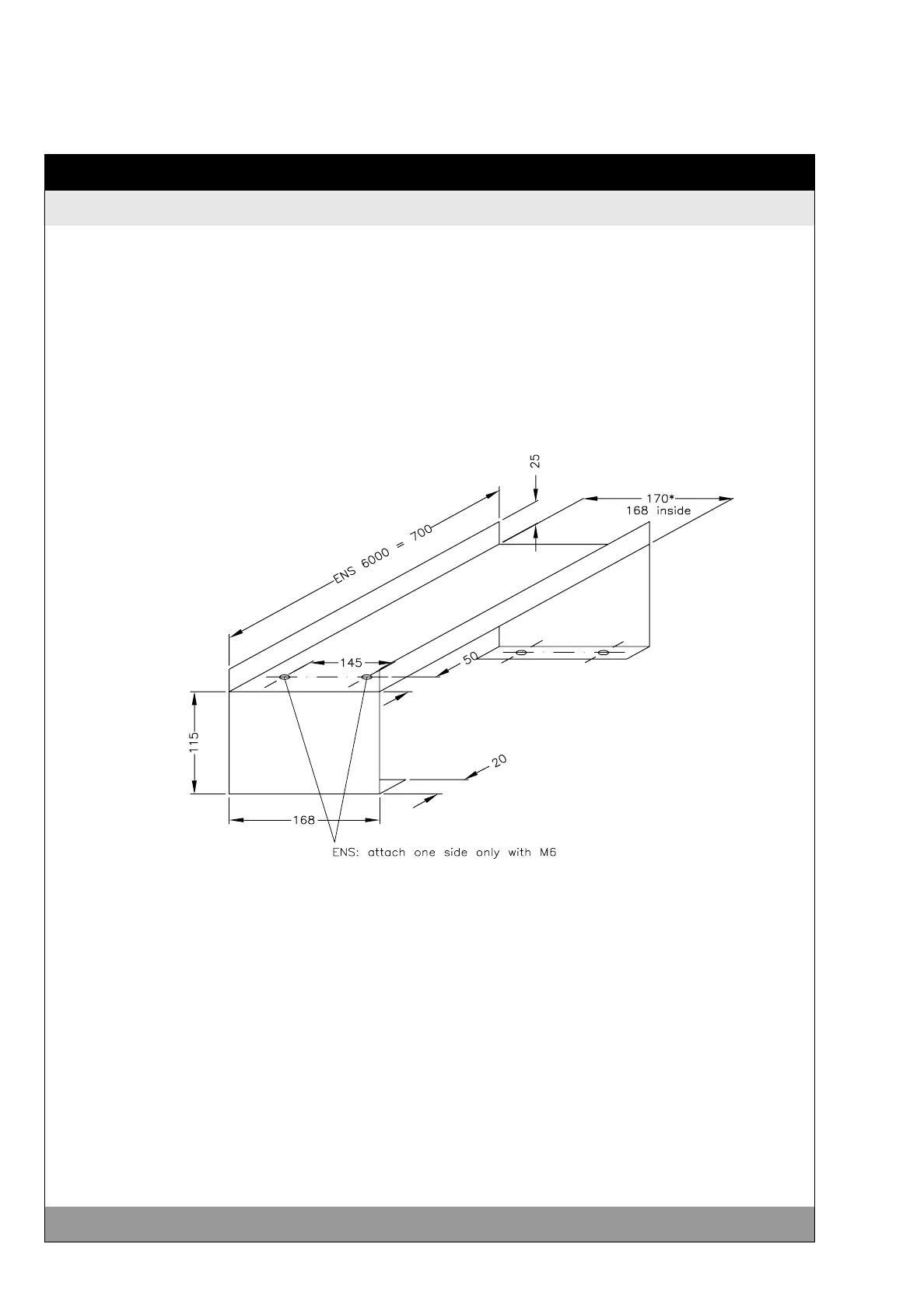

Should only one humidifier ENS be installed in a duct or an air
treatment unit, a simple bracket is sufficient (please refer to illu-
stration). The bracket provides a distance between the humidifier
and the pan of > 100 mm.
This clearance is necessary for the generation of the carrier
airflow for the mist. The same clearance should be provided above
the humidifier.
It is recommended to install and attach the bracket to the drain pan
to be provided.
*This dimension applies to ENS 1200-9600. The dimension for ENS
1/18 is 270.
Stainless steel
Thickness: 1mm
