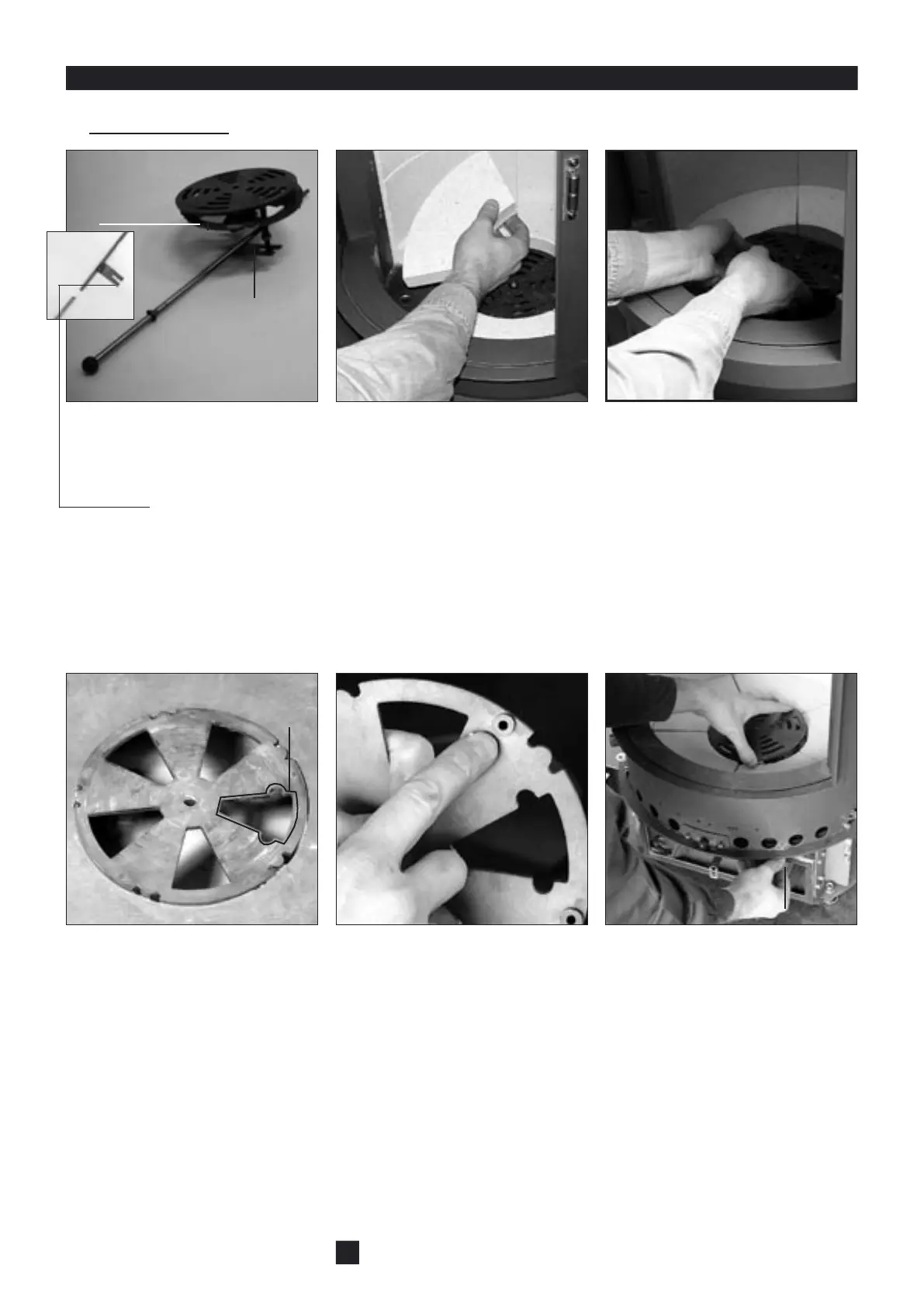

2 Open a door.
Remove both front refractors.
4 & 5 Separate the grate in 3 parts. Position the lower grate in place.
Its 3 lugs should fit into half-moon recesses in bottom of stove.
Careful: A-shaped opening fits on the RH side.
1 Grate mechanism.
A Red knob of grate shaker
B Mobile upper grate
C Fixed lower grate
D Fork
3 Remove grate with its pin
6 Refit refractors. Using red knob of
grate shaker (pic. 1A & 6A) twist
fork (pic. 1D) full-lock (135° anti-
clockwise). Then position mobile
upper grate (pic. 1B) and make sure
its rod slides into fork (pic 1 D).
Replacing ashtray grate
1
A
B
C
D
4
A
5
3
1. Removal of grate
A
6
