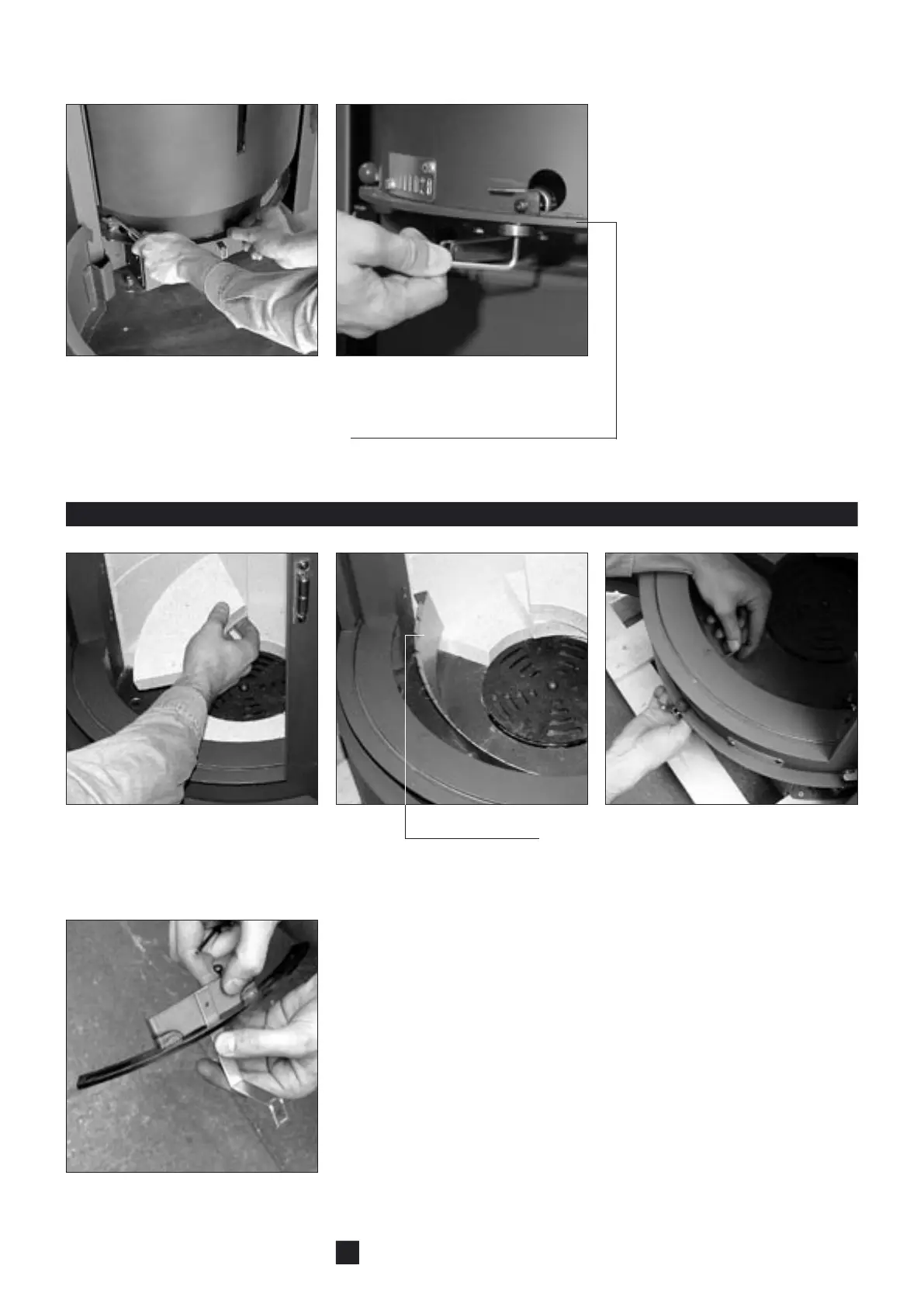

Stuv 30-in - Replacing drum guide bearing; Replacing damper and regulator

5
S30-in M. En
03-05
4 5
4 Remove damper from inside and
regulator from outside stove.
1 2
2 Remove primary air deflector. 3 Using Allen key n°8 undo screw
holding damper regulator.
3
1 Remove both front refractors.
Replacing damper and regulator
2. Replacing drum guide bearing
1 2
2 Using Allen key n°4 undo bearing
axle pin. Don’t forget to refit washer
between bearing and drum lower
ring.
1 Rotate drum for easy access to bear-
ing
