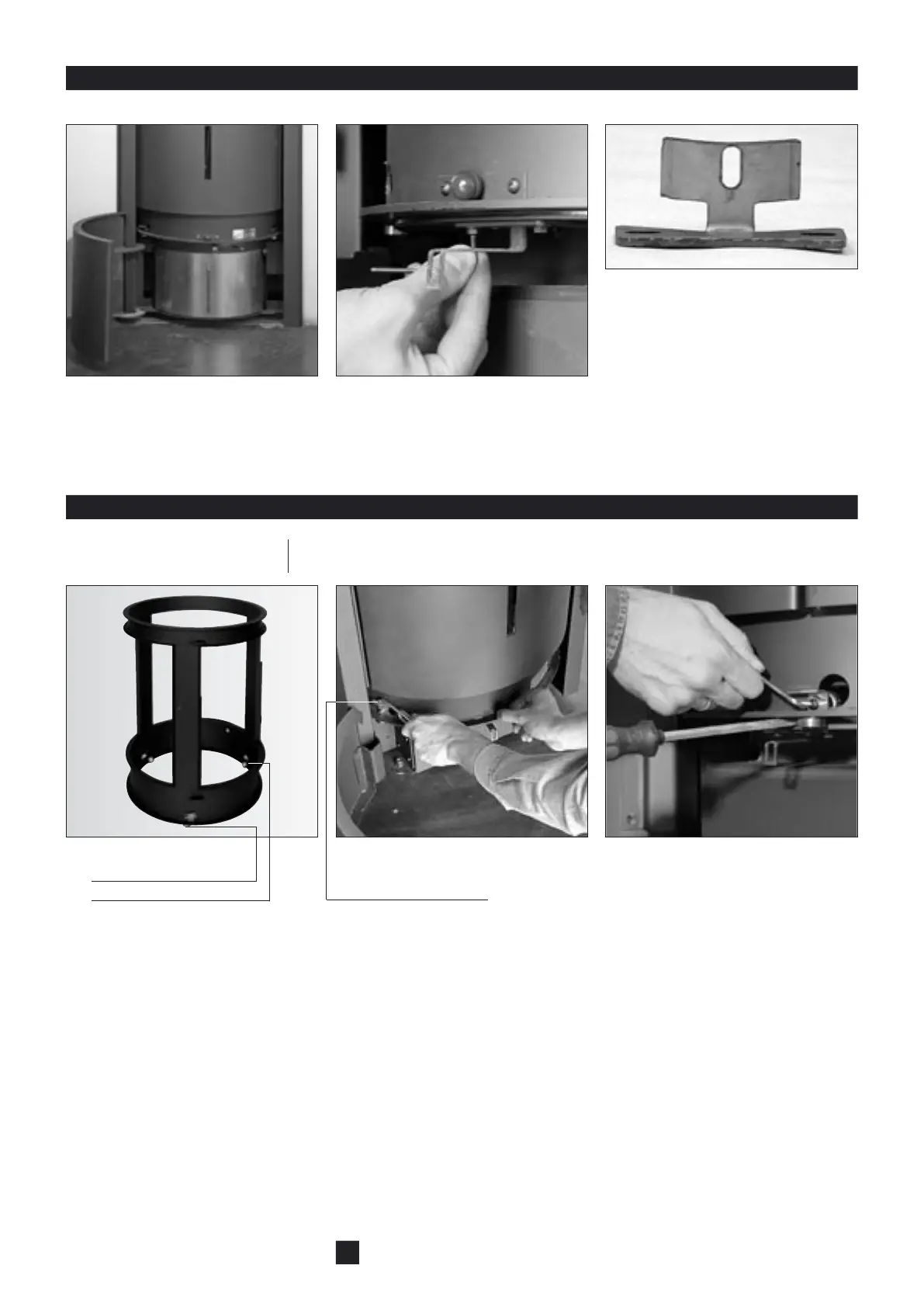

Stuv 30-in - Replacing drum positioner; Drum rotation; Replacing drum support bearing

4
S30-in M. En
03-05
1 2
2 Using 8mm key, undo 2 screws hold-
ing drum positioner.
To refit, insert positioner using
2 screws with fan-washers. Do not
tighten. Check that door lines up with
front panel and ashtray door before
tightening screws.
1 Open ashtray door with RH.
Replacing drum positioner
The positioner is the fixed female element in which the bolt inserts to immobilise the drum.
1
2
3
1 View of drum with :
- support bearings
- guide bearings
2 Rotate drum for easy access to bear-
ing (or to grip hook).
3 Insert a flat screwdriver between rail
and drum lower ring and raise drum
slightly. Using Allen key n°4 loosen
screw 2 or 3 turns and move grip
hook to the right then remove bear-
ing through hole.
Drum rotation
1. Replacing drum support bearing
grip hook
2’
2’
