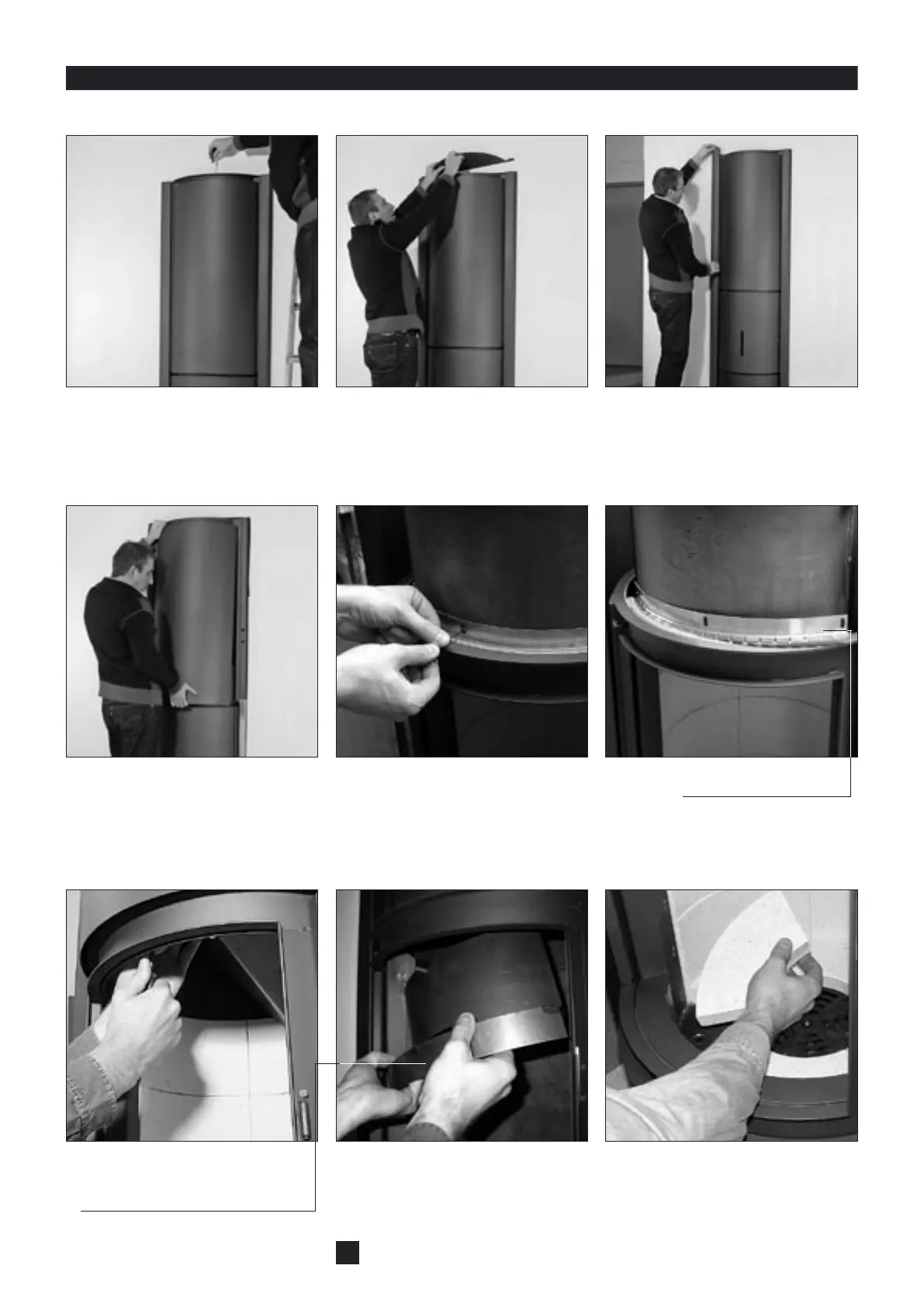

Stuv 30-in - Replacing upper seal between body & drum

4 Remove front panel.
4
5 Undo 3 hexagonal headed screws to
release stainless-steel seal retainer.
5
6 Remove stainless-steel seal retainer.
6
6
S30-in M. En
03-05
Carefully note seal position before removal.
1 2
2 Remove semi-circular panel. 3 Undo both side finishing frames.
3
1 Using Allen key n°3 unscrew semi-
circular panel on stove top.
Replacing upper seal between body & drum
7
8
9
7 Using an 8mm open-end spanner
and 8mm socket wrench, undo bolt
holding upper crosspiece.
8 Rotate drum 10cm to the right.
Remove upper crosspiece.
9 Remove both bottom front refrac-
tors from stove.
