S30-in M. En
03-05
7
10

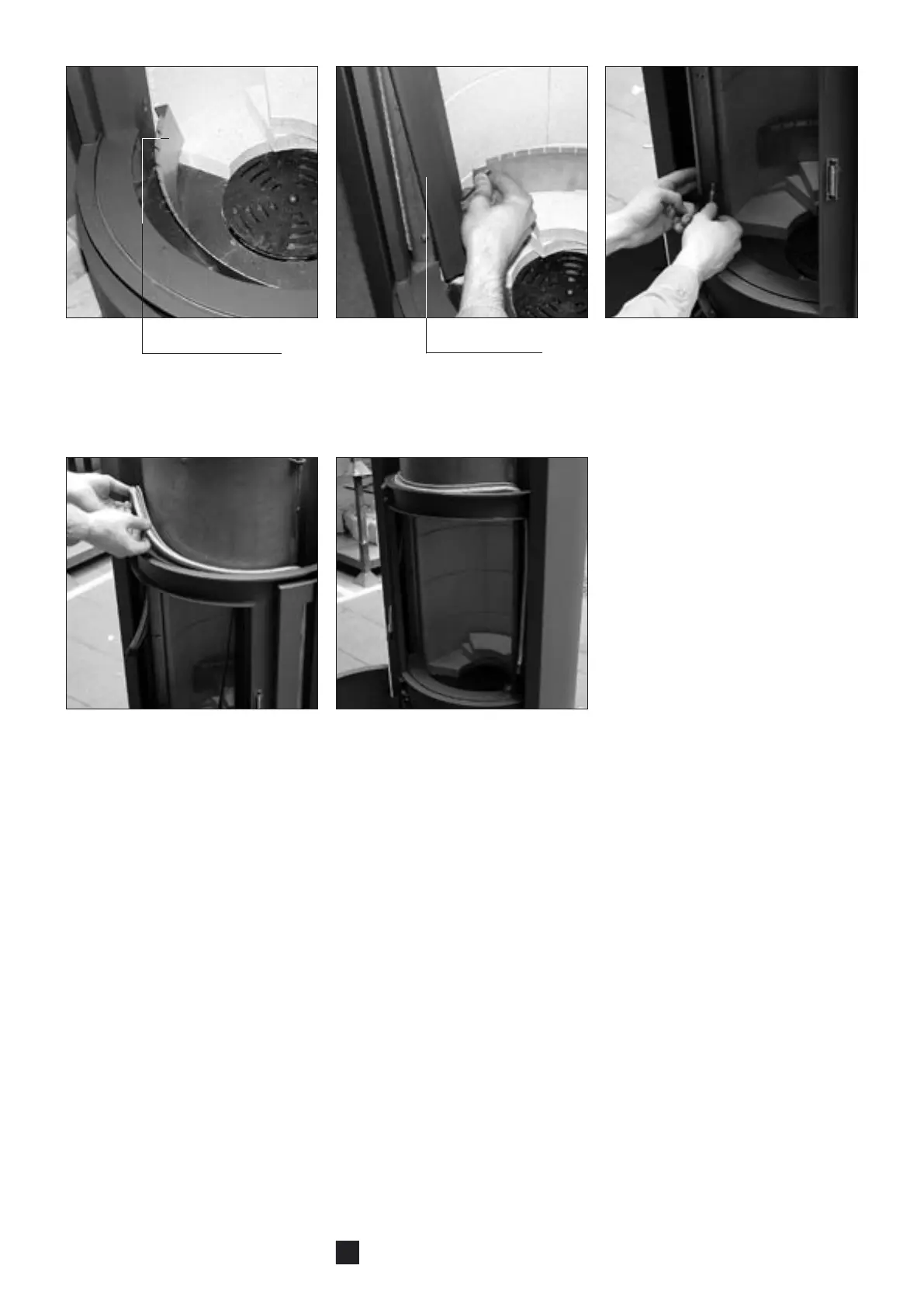

10 Remove stainless-steel primary air
deflector.
11
11 Remove 2 vertical protective sec-
tions by raising them through holes
provided for fixing the barbecue
grill.
12
12 Unscrew vertical seal retainer bolts
a few turns.
13
14
14 Fit new seal with flexible edge out-
wards and thin section against stove
face.
First refit the LH vertical seal retainer,
tightening only the bottom bolt, then
pull the seal upwards while tightening
the other 2 bolts. Proceed in the same
way for the RH side, then fit the rest of
the seal evenly along horizontal part.
Check seal tightness by rotating drum
several times.
13 Remove used seal.
