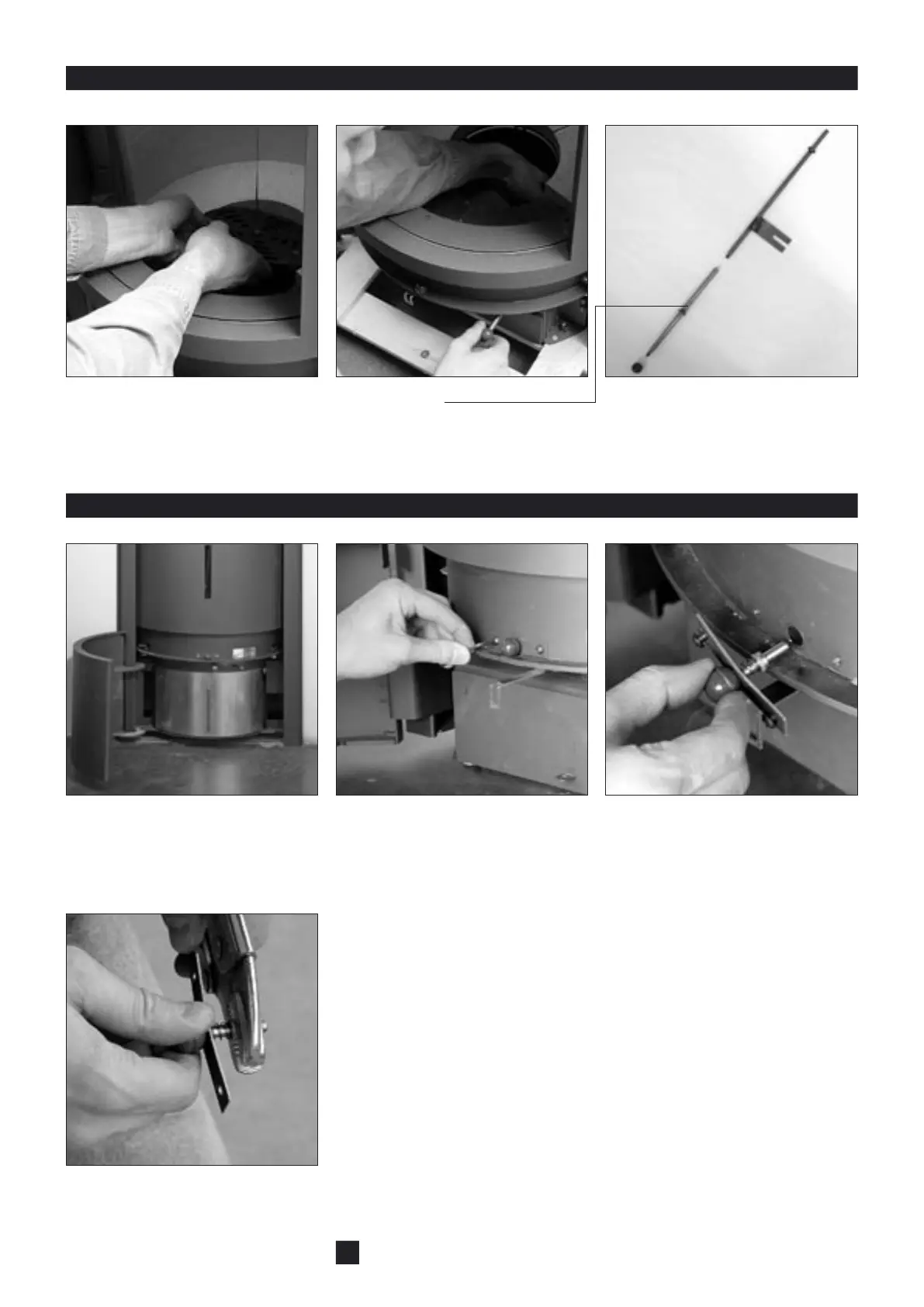

2 Unscrew both grate shaker parts
holding red knob with RH and fork
with LH.
1
2
3
1 Open a door. Remove front refrac-
tors. Remove grate and grate
holder.
3 Unscrew red knob from rod to allow
both rod sections to be removed
from stove.
Replacing ashtray shaker
1
2
3
1 Open ashtray door with cold hand-
grip.
4
4 Unscrew red knob to remove spring.
2 Using 8mm key, undo two M5
screws.
3 Remove bolt from drum.
S30-in M. En
03-05
3
Replacing drum bolt & bolt spring
