STÛV GAS FIREPLACE INSTALLATION / STÛV INSTALLATION FOYERS AU GAZ
30

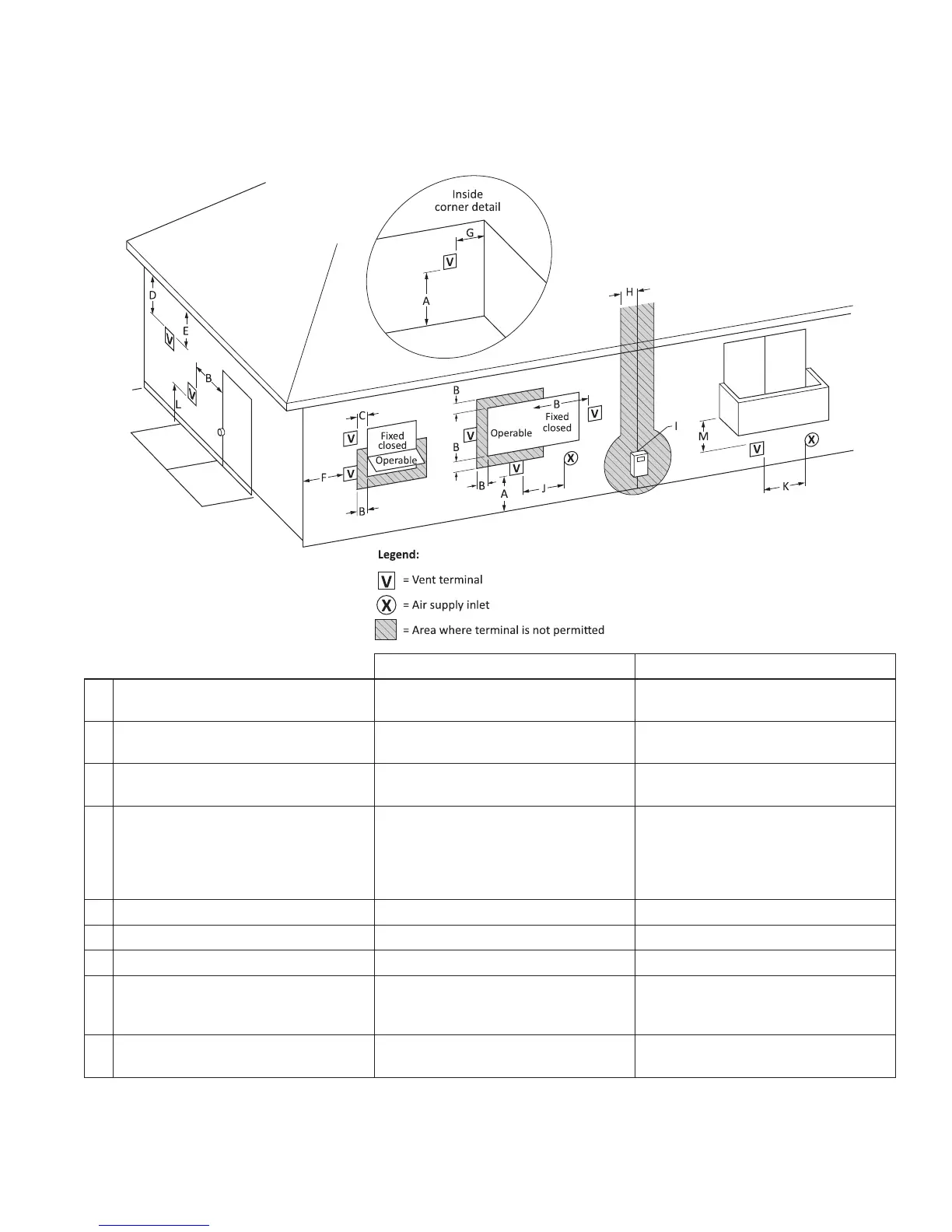

4.2 Locating the wall mounted terminals 4.2 Instructions pour le positionnement
du débouché mural
Canadian installations1 US installations2
A Clearance above grade, veranda,
porch, deck, or balcony
12 in (30 cm) 12 in (30 cm)
B Clearance to window or door that
may be opened
12 in (30 cm) 9 in (23 cm)
C Clearance to permanently closed
window
12 in (30 cm) 9 in (23 cm)
D Vertical clearance to ventilated
soffit located above the terminal
within a horizontal distance of 2 feet
(61 cm) from the center line of the
terminal
24 in (60 cm) 24 in (60 cm)
E Clearance to unventilated soffit 18 in (45 cm) 18 in (45 cm)
F Clearance to outside corner 6 in (15 cm) 6 in (15 cm)
G Clearance to inside corner 12 in (30 cm) 12 in (30 cm)
H Clearance to each side of center line
extended above meter/regulator
assembly
3 ft (91 cm) within a height 15 ft
(4.5 m) above the meter/ regulator
assembly
3 ft (91 cm) within a height
15 ft (4.5 m) above the
meter/regulator assembly
I Clearance to service regulator vent
outlet
3 ft (91 cm) 3 ft (91 cm)
