Sub-Zero 601R Planning Information

Planning Information
Built-In Model 601R
Dimensions in parentheses are in
millimeters unless otherwise specified.
12
1
1
/4" (32) PANEL
1" (25) PANEL
1
/4" (
6) PANEL
1
/2" (
13) PANEL
3
/4" (19) PANEL
5
/8" (16) PANEL
DOOR
1
/4" (
6)
APPROXIMATE THICKNESS OF WRAPPED STAINLESS STEEL DOOR
NOTE: FOR OVERLAY APPLICATIONS, OPTIONAL STAINLESS STEEL HANDLE
MUST BE MOUNTED ON PANEL MINIMUM 5/8" (16) THICK.
1"
2"
(
51)
3"
(
76)
S
TANDARD STAINLESS STEEL HANDLE

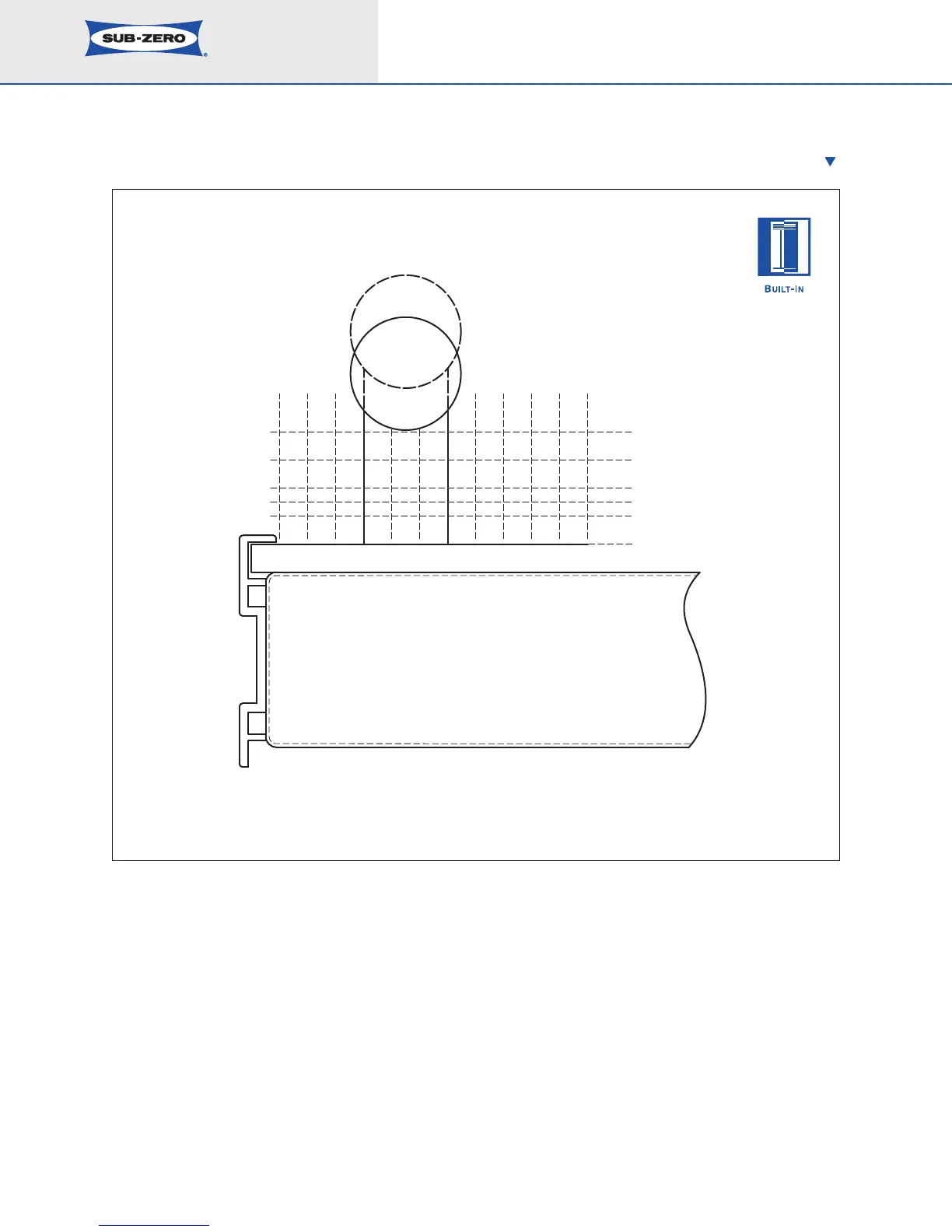

PANEL AND HANDLE PROFILE
The full-scale illustr
ation a
bove shows handle
placement for the standard stainless steel
handle on the wrapped stainless steel door and
on overla
y panel applications shown in the
dashed line
.
IMPORTANT NOTE: For overlay applications,
the optional stainless steel handle must be
mounted on a panel at least
5
/8" (16) thick.
For overlay applications, mount door handles
close to the opening edge of the door for ease
of opening
.
HANDLE PROFILE – STAINLESS STEEL / OVERLAY APPLICATIONS

Sub-Zero 601R Specifications

General

Type	Refrigerator
Height	84 inches
Energy Star Certified	No
Door Alarm	Yes
Lighting	LED
Product Type	Built-In Refrigerator
Installation Type	Built-In
Brand	Sub-Zero
Model	601R
Configuration	All Refrigerator
Ice Maker	No
Water Dispenser	No
Depth	24 inches
Door Style	Panel Ready
Finish	Panel Ready
Width	30 inches
