Sub-Zero 601R

Planning Information
Built-In Model 601R
Dimensions in parentheses are in
millimeters unless otherwise specified.
7
FRAMED PANELS
Framed door panel
1
/4" (6) thick or less
Framed door panel thicker than
1
/4" (6)
FRAMED PANELS
If the thickness of the custom panels is less than
1
/4"
(6), they must be backed up with a sheet of shim material
to build the total thickness to
1
/4" (6). If the panel is thicker
than
1
/4" (6), an edge must be routed around the panel to
ensure a proper fit. Refer to the illustrations on this page.
I
MPORTANT NOTE:
R
outing, recessing or optional
extended handles may be required on raised panels for
finger clearance under the handle. Refer to the full-scale
illustrations on pages 11–14.
IMPORTANT NOTE: The weight of each panel cannot
exceed 50 lbs (23 kg).
The traditional framed models come with an 11" (279)
louvered grille and elegant full-length handle. Optional
extended full-length handles that provide additional finger
clearance for raised panels are available through your
Sub-Zero dealer. To obtain local dealer information, visit
the Locator section of our website
, subzero.com.
To install framed panels, refer to the installation instruc-
tions shipped with each unit
. These instructions can also
be found on our website, subzero.com.

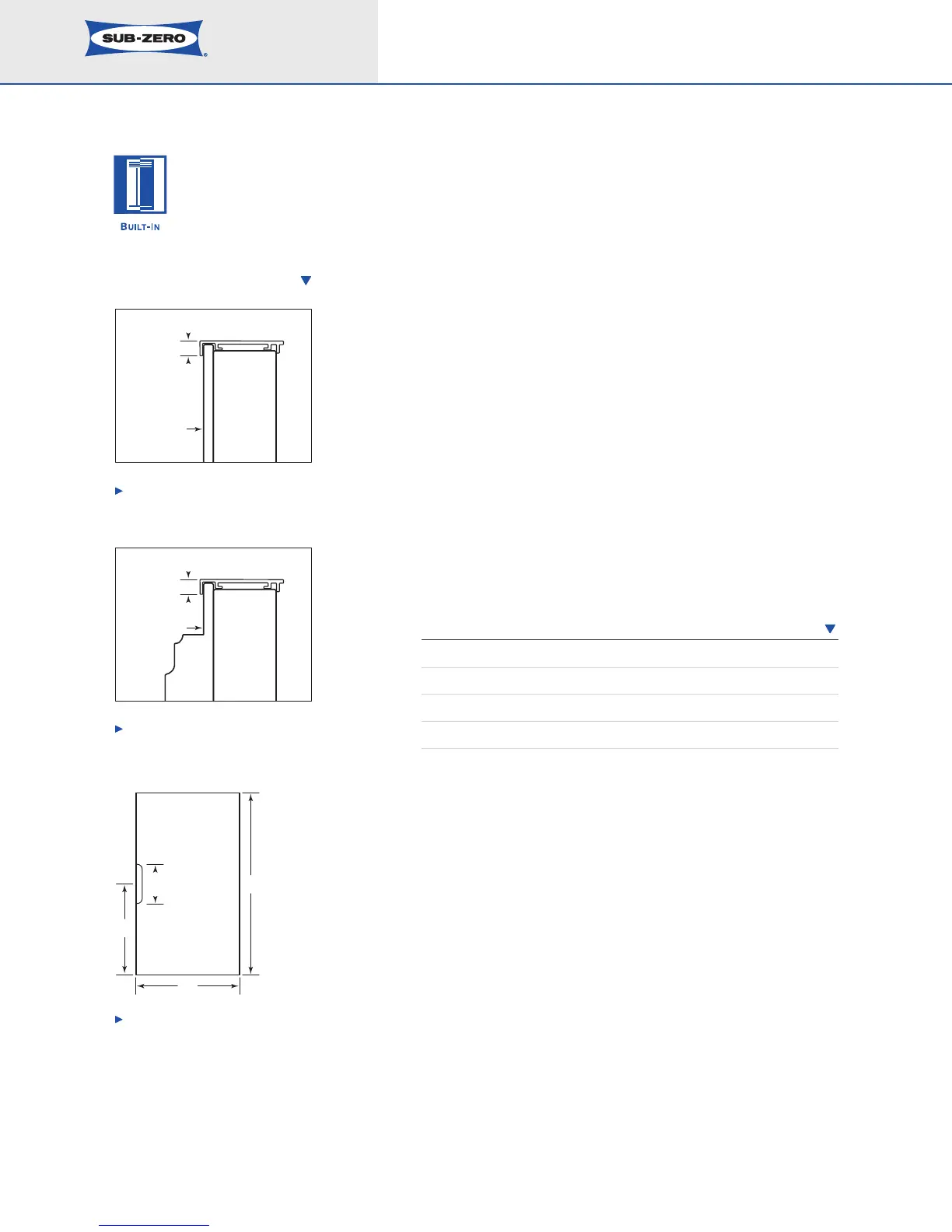

FRAMED PANEL DIMENSIONS
WIDTH HEIGHT
Door Panel 34
1
/8" (867) 58
15
/16" (1497)
Handle Recess Location A – 29
15
/32" (749)
Maximum Panel Weight 50 lbs (23 kg)
PANELS
1
/4" (6) THICK OR LESS
1
/4" (6) Panel
Trim reveal
1
/4" (6) min
PANELS THICKER THAN
1
/4" (6)
Trim reveal
1
/4" (6) min
Rout to
1
/4" (6)
thickness
W
H
A
14" (356)
H
Framed Door Panel
