Planning Information
Built-In Model 611
Dimensions in parentheses are in
millimeters unless otherwise specified.
10

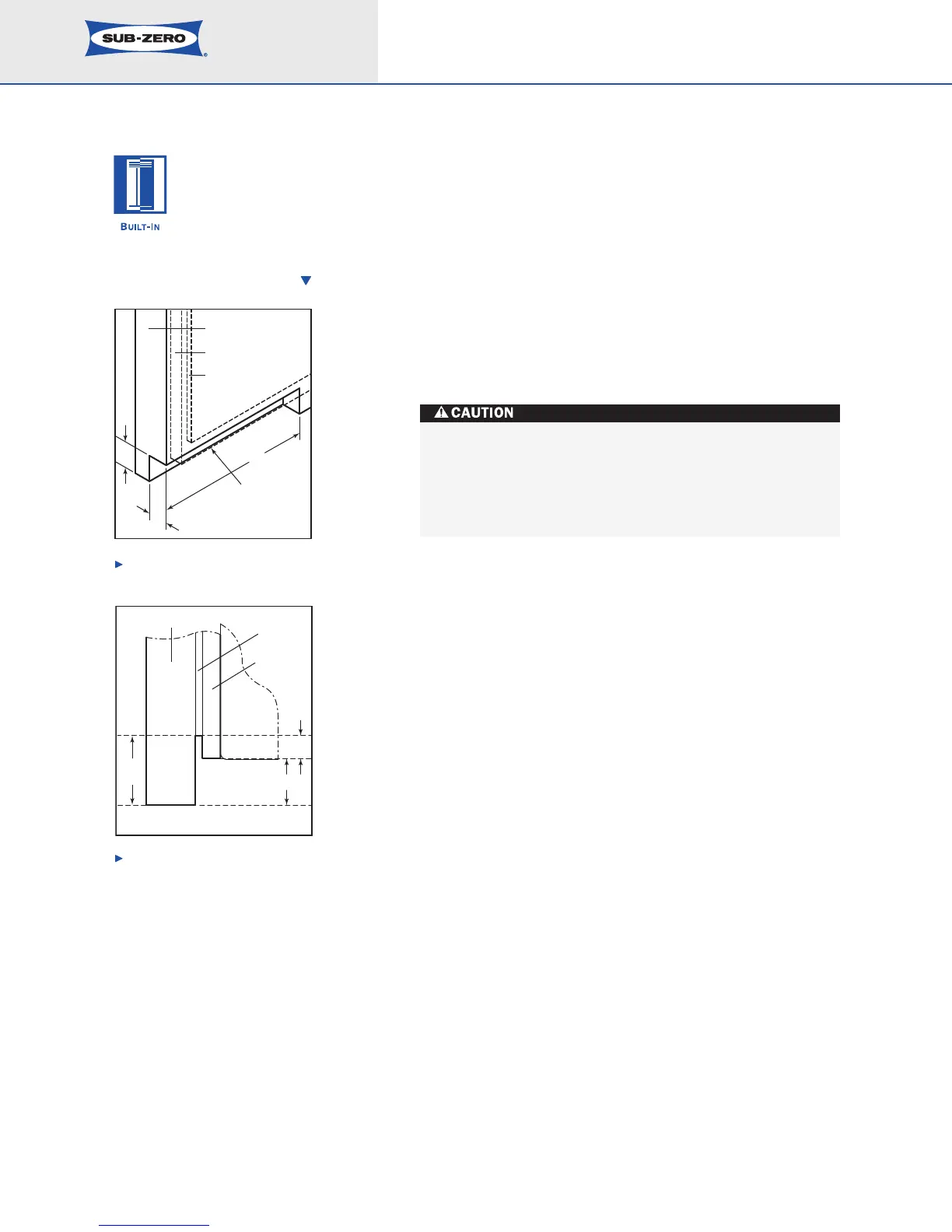

OVERLAY DOOR PANELS
IMPORTANT NOTE: For overlay door panels, it is neces-
sary to rout a space for the unit‘s lower hinge plate so
that it does not strike the door panel. Refer to the top
illustration on this page.
You will minimize the reveal between the bottom of the
o
verlay door panel and the top of the overlay drawer panel.
Refer to the bottom illustration on this page.
I
f you choose not to rout a space for the lower hinge plate,
you can reduce the total height of the overlay panel (deco-
rative panel only) by
1
/2" (13).
OVERLAY PANELS
Recessed area for hinge plate
1
/4"(6) Backer Panel
Overlay Panel
3" (76)
Bottom Edge –
Hinge Side
(rear view)
Spacer Panel
3
/8" (10)
1
/2"
(13)
Do not exceed the overlay panel dimensions listed. If
you try to make the reveal tighter between the door
and drawer panels, the panels may hit when opening
and closing, causing possible damage to the panels and
the Sub-Zero unit.
Reveal area for door panel
Overlay Panel
5
/16"
(8)
17
/32
"
(13)
27
/32"
(21)
Spacer Panel
Backer
Panel
