Sub-Zero 611

Planning Information
Built-In Model 611
Dimensions in parentheses are in
millimeters unless otherwise specified.
7
FRAMED PANELS
An 11" (279) louvered grille is standard on framed applica-
tions. Optional louvered grilles are available in 1" (25)
height increments from 10" (254) to 15" (381).
You may choose to use Sub-Zero's optional panel grille for
the framed application. Optional panel grilles are available
i
n 1" (25) height increments from 10" (254) to 15" (381).
Refer to the chart below for panel dimensions.
FRAMED PANEL DIMENSIONS
WIDTH HEIGHT
Refrigerator Door Panel 28
1
/8" (714) 48
1
/16" (1221)
Freezer Door Panel 28
1
/8" (714) 18
3
/8" (467)
Handle Recess Location A – 24
1
/32" (610)
B – 14
1
/16" (357)
Maximum Weight (per panel) 50 lbs (23 kg)
FRAMED GRILLE P ANEL DIMENSIONS
WIDTH HEIGHT
10" (254) Grille 28
3
/16" (716) 8
15
/16" (227)
11" (279) Grille 28
3
/16" (716) 9
15
/16" (252)
12" (305) Grille 28
3
/16" (716) 10
15
/16" (278)
13" (330) Grille 28
3
/16" (716) 11
15
/16" (303)
14" (356) Grille 28
3
/16" (716) 12
15
/16" (329)
15" (381) Grille
28
3
/16" (716) 13
15
/16" (354)

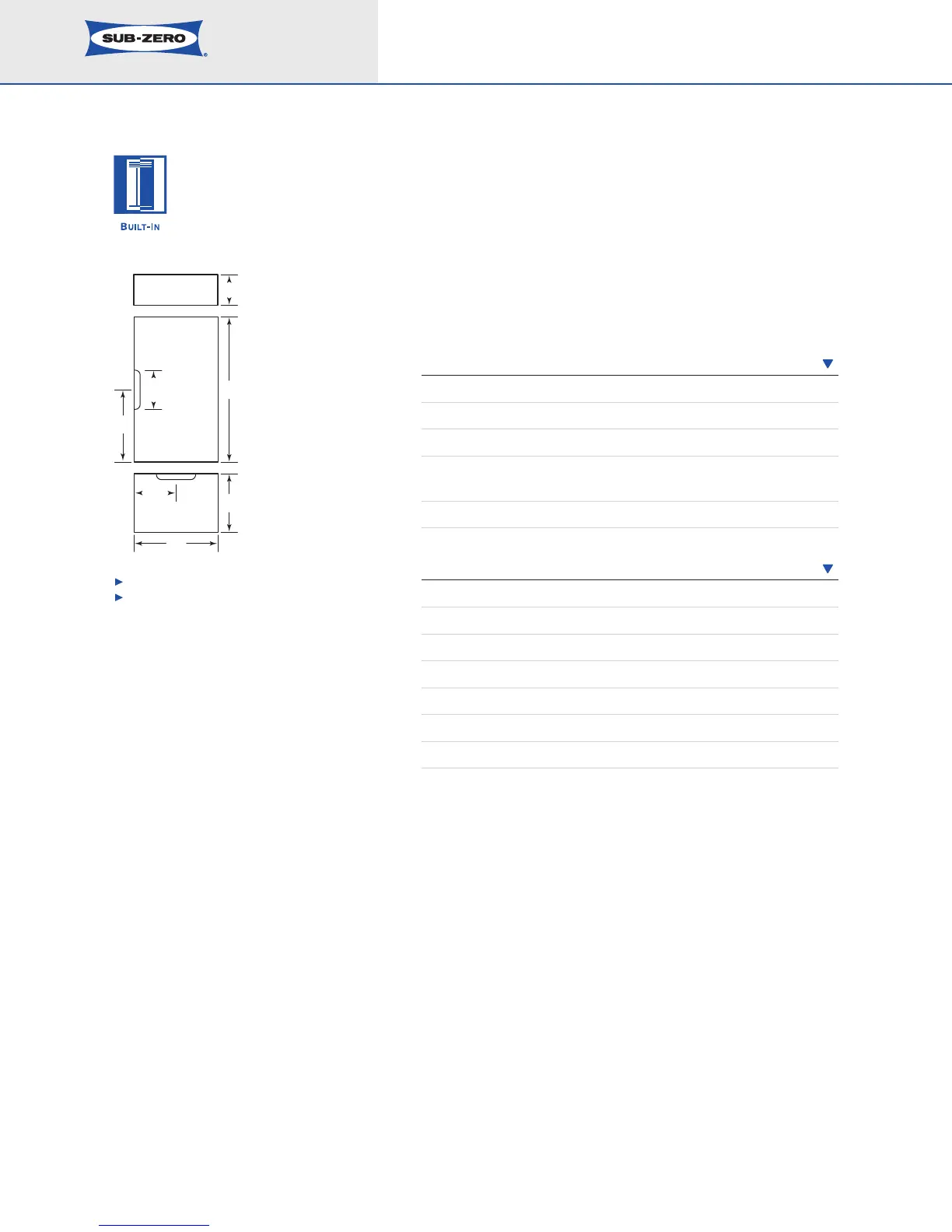

W
H
H
H
A
B
14" (356)
Framed Door Panels
Framed Grille Panel
