Sub-Zero 685 Planning Information

Planning Information
Built-In Model 685
Dimensions in parentheses are in
millimeters unless otherwise specified.
14
2" (
51)
1" (25)
S
TAINLESS STEEL
H
ANDLE PROFILE
GLASSWELL PROFILE
R

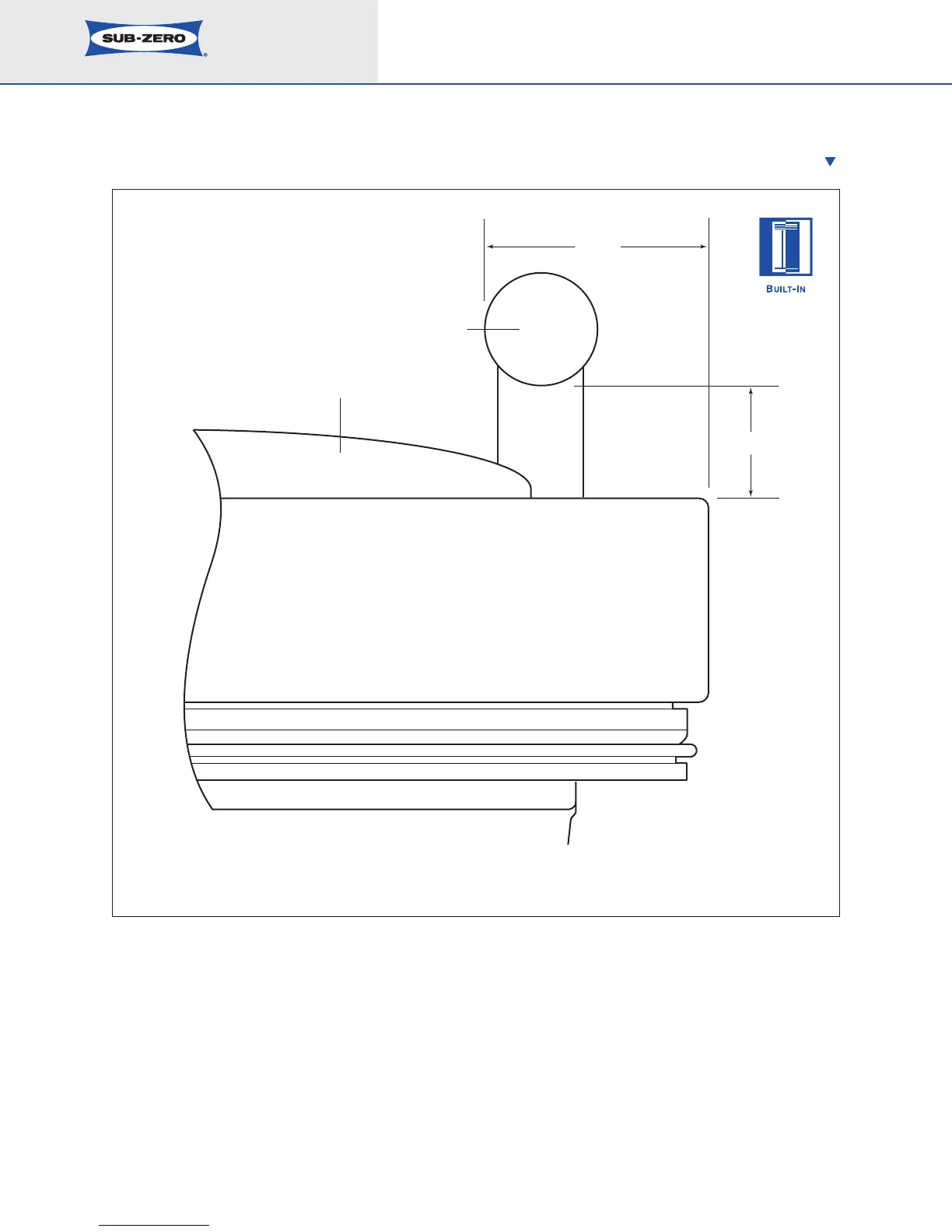

EFRIGERATOR DOOR PROFILE – TOP VIEW
DOOR
NOTE: FOR OVERLAY APPLICATIONS, OPTIONAL STAINLESS STEEL HANDLE
MUST BE MOUNTED ON PANEL MINIMUM 5/8" (16) THICK.
HANDLE PLACEMENT
The full-scale illustration above shows proper
placement of the stainless steel handle for
the Model 685 refrigerator door in an overlay
application.
Adequate clearance is required under the handle
to assure proper access to the glasswell.
IMPOR
TANT NOTE:
F
or overlay applications,
the optional stainless steel handle must be
mounted on a panel at least
5
/8" (16) thick.
HANDLE PLACEMENT – OVERLAY APPLICATION
