Planning Information
Built-In Model 685
Dimensions in parentheses are in
millimeters unless otherwise specified.
4

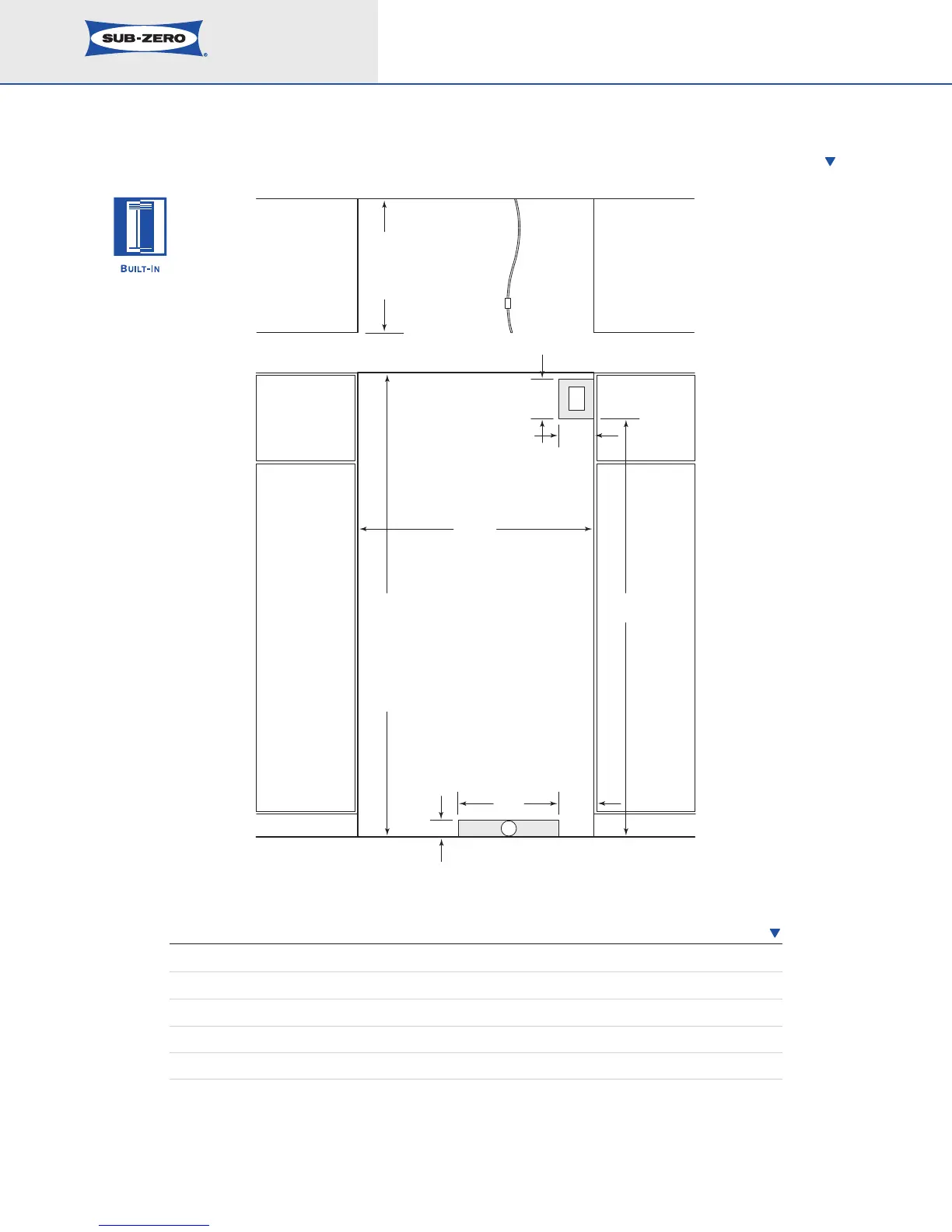

INSTALLATION SPECIFICATIONS
83
3
/4"
(2127)
ROUGH
OPENING
HEIGHT
WITH
STANDARD
11" (279)
GRILLE
75
1
/2"
(1918)
7"
(178)
6"
(
152)
41
1
/2"
(1054)
ROUGH OPENING WIDTH
24"
(
610)
R
OUGH
O
PENING
D
EPTH
E
3"
(76)
18"
(457)
W
LOCATE WATER SUPPLY
WITHIN SHADED AREA
LOCATE ELECTRICAL
WITHIN SHADED AREA
6"
(152)
SHUT-OFF
V
ALVE
E
XTEND WATER LINE
APPROX. 36" (914)
FROM BACK WALL
FRONT VIEW
T
OP VIEW
DIMENSIONS
Finished Rough Opening Width 41
1
/2" (1054)
Finished Rough Opening Height 83
3
/4" (2127)
Finished Rough Opening Depth 24" (610)
Location of Electrical Within upper shaded area
Location of W
ater Supply
Within lower shaded area
See Installation Instructions shipped with unit for detailed specifications.
Refer to the Sub-Zero Design Guide pdf file for additional specifications.
