Sub-Zero BI-36UFD User Manual

Built-In Refrigeration 22

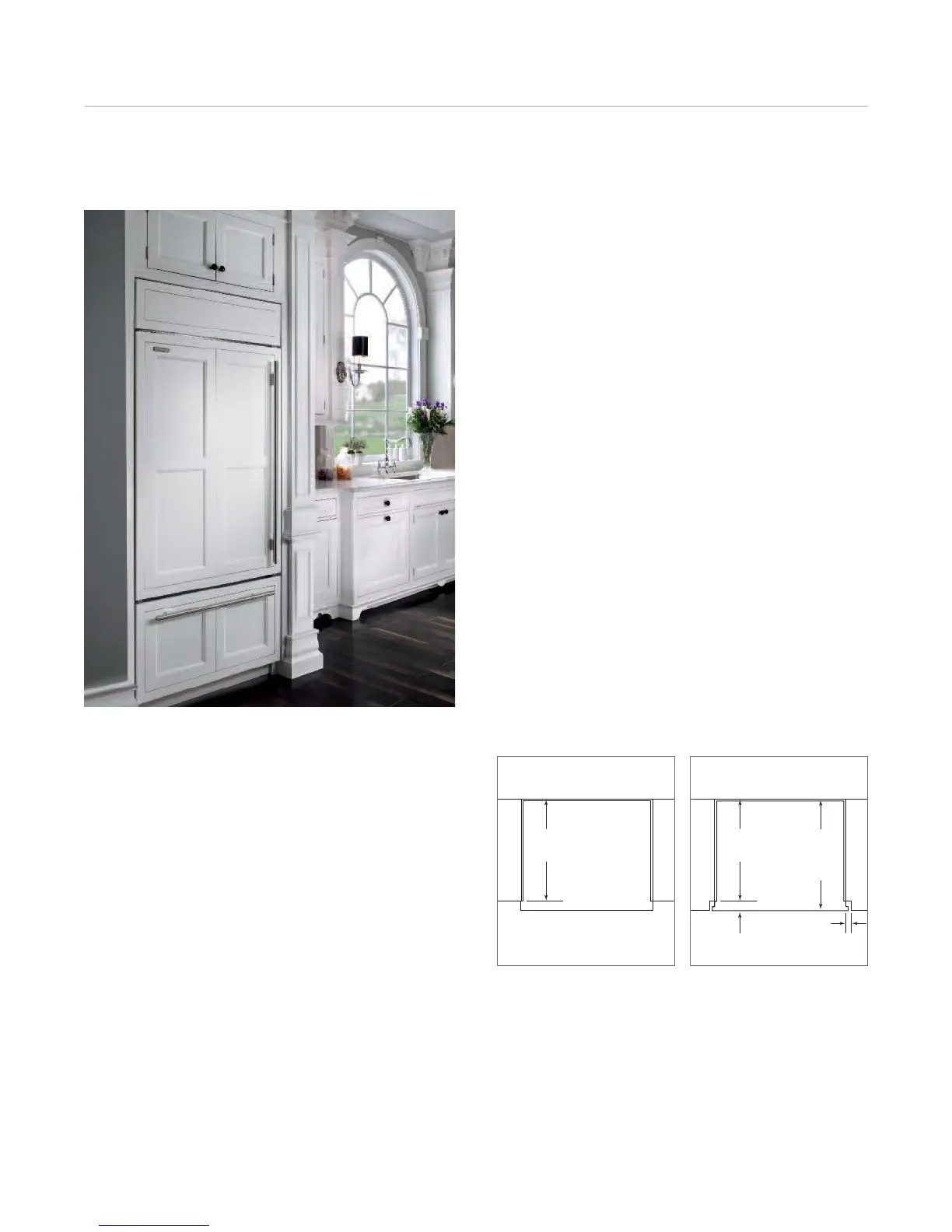

This design option allows for a flush door and grille. Stainless
steel panels are available as sales accessories. Shown with
tubular handle option to mirror Wolf built-in ovens.
Flush Inset Application
It is necessary to consider the following points when
planning for a flush inset application:
• The flush inset depth is 2
3
/16" (56) deeper than the
standard opening.
• The flush inset width is 2
1
/2" (64) wider than the
standard opening.
• The flush inset height is
1
/4" (6) higher than the
standard opening.
• Panel widths increase to achieve the flush inset look.
• You must allow a
1
/2" (13) reveal around the perimeter
of the unit and grille to allow for proper door swing and
airflow.
IMPORTANT NOTE: The flush inset application is not a
separate model. This is an overlay unit in a flush installa-
tion. The same model is used in an overlay or flush inset
application.
Rough opening dimensions for the flush inset application
assume the use of a
3
/4" (19) decorative panel. The illustra-
tions below show the difference between standard and
flush inset installations.
STANDARD INSTALLATION
24" (610)
OPENING
DEPTH
TOP VIEW
Standard installation. Flush inset installation.
26
3
/16"
(665)
FLUSH
INSET
DEPTH
2
3
/16"
(56)
1
1
/4"
(32)
TOP VIEW
FLUSH INSET INSTALLATION
WITH
3
/4" (19) PANEL
24" (610)
OPENING
DEPTH
