Built-In Refrigeration 34
Dual Installation
FLUSH INSET PANEL OFFSETS
When installing two built-in models side by side in a flush
inset application, you must decrease the width of the dec-
orative flush inset panels by
1
/2" (13). Adjustments to the
panel offsets will also need to be made. These adjust-
ments are needed to achieve a proper fit and to ensure the
panels do not collide when closing. Panel dimensions in
the chart below have been adjusted to reflect the
decrease in panel dimensions.
IMPORTANT NOTE: If a filler strip is not used, dual instal-
lations can only be accomplished using two units with
opposite hinges.

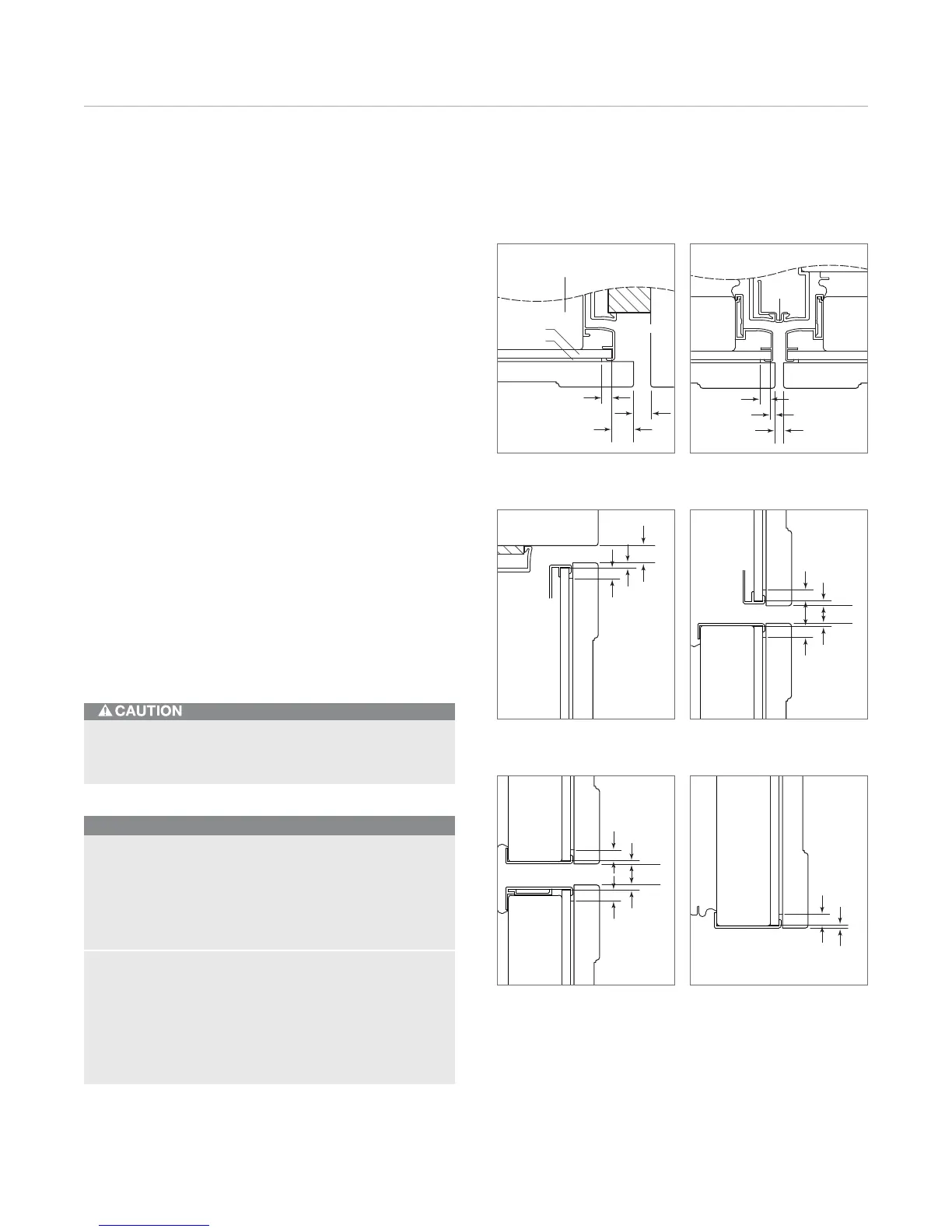

Illustrations A–F provide panel offsets and reveals for all
built-in models in a flush inset application. Refer to the
chart below for reference to the illustrations relating to
your specific model. All reveals are
1
/2" (13) unless other-
wise specified.
For additional information on model-specific panel reveals,
visit the specification library section of our website,
subzerotrade.com.
5
/8"
(16)
5
/16" (8)
1
/2"
(13)
FLUSH INSET PANEL
SPACER
BACKER
DOOR / DRAWER / GRILLE
TOP VIEW
CABINETRY
Illus. A Illus. B
DUAL
TRIM
1
/4" (6)
REVEAL
5
/16" (8)
1
/8" (3)
DOOR DOOR
TOP VIEW
1
/2"(13)
5
/16"
(8)
1
/8"
(3)
CABINETRY
GRILLE
SIDE VIEW
Illus. C Illus. D
1
/2"(13)
3
/32"
(2)
5
/16"
(8)
5
/16"
(8)
5
/32"
(4)
GRILLE
DOOR
SIDE VIEW
5
/8"(16)
5
/32"
(4)
5
/16"
(8)
5
/16"
(8)
3
/32"
(2)
DOOR
DRAWER
SIDE VIEW
Illus. E Illus. F
5
/16"
(8)
3
/32"
(2)
DOOR /
DRAWER
SIDE VIEW
Panel Offsets Illus.
ALL REFRIGERATOR / ALL FREEZER
Doors (hinge) / Grille Sides A
Doors (handle) Sides B
Grille Top C
Grille Bottom / Door Top D
Door Bottom F
OVER-AND-UNDER
Doors (hinge) / Drawer / Grille Sides A
Doors (handle) Sides B
Grille Top C
Grille Bottom / Door Top D
Door Bottom / Drawer Top E
Drawer Bottom F
Do not exceed flush inset panel dimensions, as this
could cause damage to panels and the Sub-Zero unit.
