Built-In Refrigeration 43
subzero.com/specs
1
1
/2" (38)
1
/2" (13)
FILLER STRIP
PROFILE OF
3
/4" (19) FLUSH INSET PANEL
AND TUBULAR HANDLE
DOOR
CLOSED
DOOR
OPEN 110°

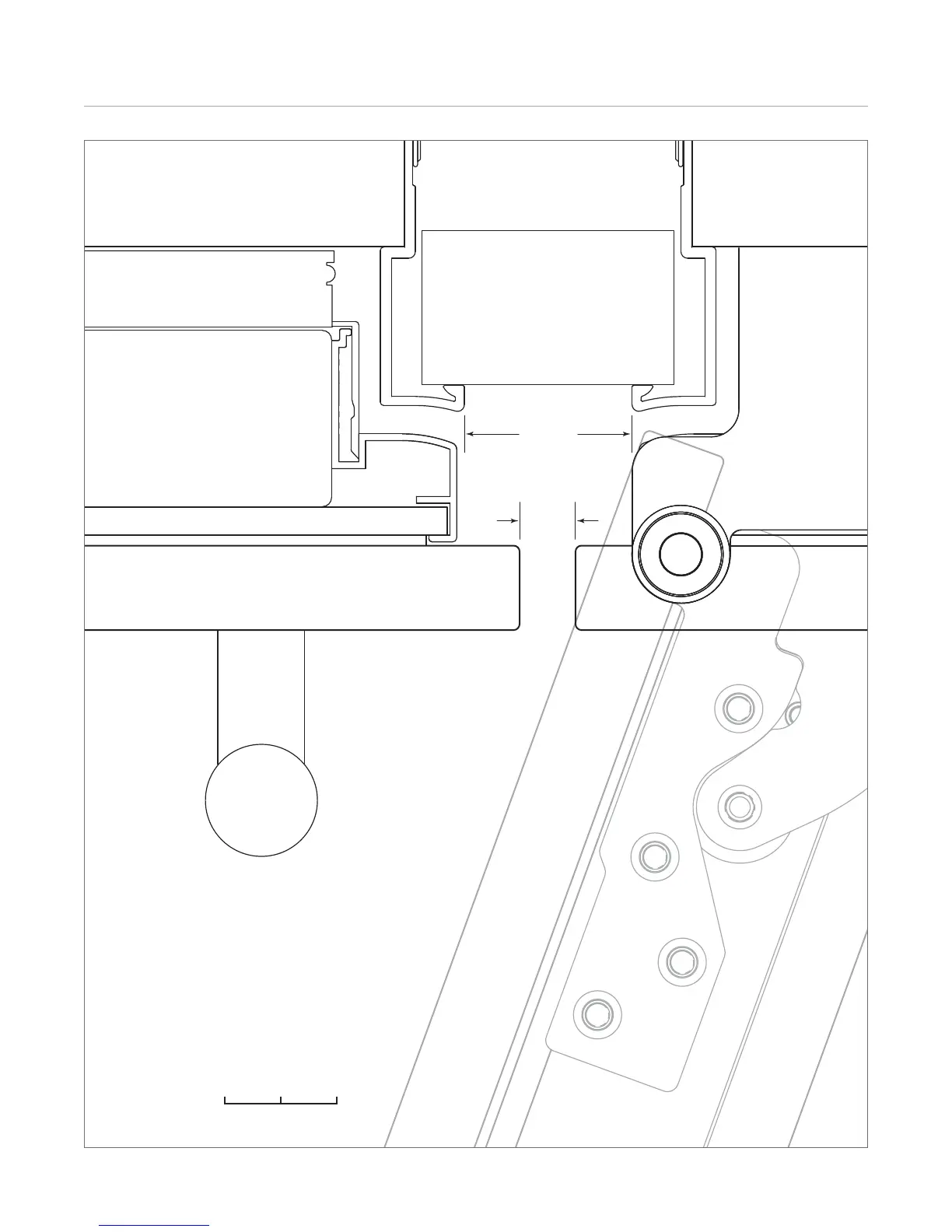

Dual Installation—Flush Inset
FULL-SCALE TEMPLATE
Typical flush inset dual installation with
filler strip at maximum 110° door
opening. Depending on panel thickness,
a 90° door stop may be required.
FLUSH INSET
TOP VIEW
1" (25)0"
SCALE
