Model WS-30
FLUSH INSET PANEL
Overlay model WS-30 used in a flush inset application
allows the decorative panel to cover the door trim for a
seamless appearance. The most common way to achieve
this look is to work with three panels—the decorative flush
inset panel, which is typically
3
/4" (19), a .10" (3) spacer
panel and a
1
/4" (6) backer panel. Depending on your
cabinet manufacturer, this could be one panel routed for
different dimensions. The illustrations below will give you a
better idea of the panel construction and how it interacts
with our frame. The size of the flush inset panel is critical,
it must fit over the door frame.
IMPORTANT NOTE: Do not cover the glass door with a
solid panel. The inside edges of the rough opening as well
as the sides and a portion of the back side of the decora-
tive panels will need to be finished, as they will be
exposed when the doors are open. The window cut-out
edges of the overlay, spacer and backer panels will also
need to be finished.
IMPORTANT NOTE: For flush inset panels thicker than
3
/4" (19), a 90° door stop may be required to prevent inter-
ference with adjacent cabinets.
Wine Storage 76
9
/16"
(14)
FLUSH INSET PANEL
SPACER PANEL
BACKER PANEL
TRIM
5
/16" (8) min

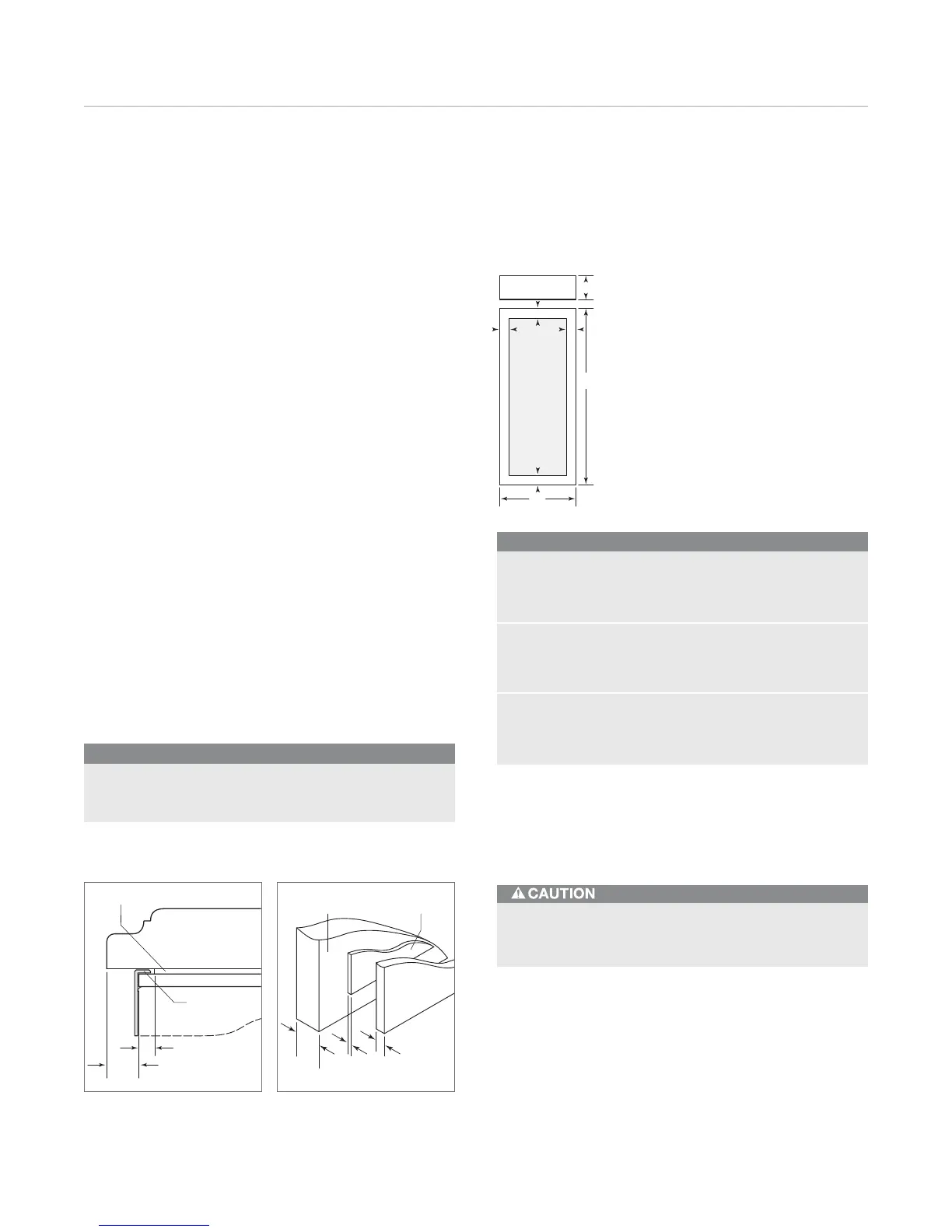

Panel assembly cross
section.
Panel assembly rear view.
1
/4" (6)
.10" (3)
FLUSH INSET
PANEL
SPACER
PANEL
BACKER
PANEL
3
/4"
(19)
typical
Grille panel dimensions listed are for a standard 84" (2134)
overall height of the unit. For an 83" (2108) overall height,
subtract 1"
(25) from grille panel height dimensions. For an
88"
(2235) overall height, add 4" (102) to height dimensions.
WS-30 Flush Inset
DOOR W H
Flush Inset Panel 31" (787) 69
3
/4" (1772)
Spacer Panel 29
1
/8" (740) 68
15
/16" (1751)
Backer Panel 29
3
/4" (756) 69
9
/16" (1767)
GRILLE W H
Flush Inset Panel 31" (787) 9
1
/4" (235)
Spacer Panel 29
1
/8" (740) 8
5
/16" (211)
Backer Panel 29
3
/4" (756) 8
15
/16" (227)
WINDOW W H
Cut-Out 23
1
/2" (597) 62
1
/4" (1581)
A
Location 3
3
/4" (95)
H
W
H
AA
A
A
Do not exceed flush inset panel dimensions, as this
could cause damage to panels and the Sub-Zero unit.
FLUSH INSET PANEL SPECIFICATIONS
Flush Inset Panel Requirements
MODEL WS-30
Max Panel Weight 75 lbs (34 kg)
Min Panel Thickness
5
/8" (16)
