Model WS-30
OVERLAY PANEL
Overlay model WS-30 can be used in an overlay or flush
inset application. The specific application will affect panel
sizes, opening dimensions and the installation.
Overlay model WS-30 will be shipped without handle
hardware and with an overlay panel grille as standard
equipment. Along with the door panel, you will need to
provide a panel for the grille and hardware to complement
your surrounding cabinetry.
The overlay design allows the decorative panel to cover
the door trim for a more seamless appearance. The most
common way to achieve this look is to work with three
panels—the decorative overlay panel, which is typically
3
/4" (19), a .10" (3) spacer panel and a
1
/4" (6) backer panel.
Depending on your cabinet manufacturer, this could be
one panel routed for different dimensions. The illustrations
below will give you a better idea of the panel construction
and how it interacts with our frame. The size of the overlay
panel is critical, it must fit over the door frame.
IMPORTANT NOTE: Do not cover the glass door with a
solid panel. The window cut-out edges of the overlay,
spacer and backer panels will need to be finished, as they
will be exposed.

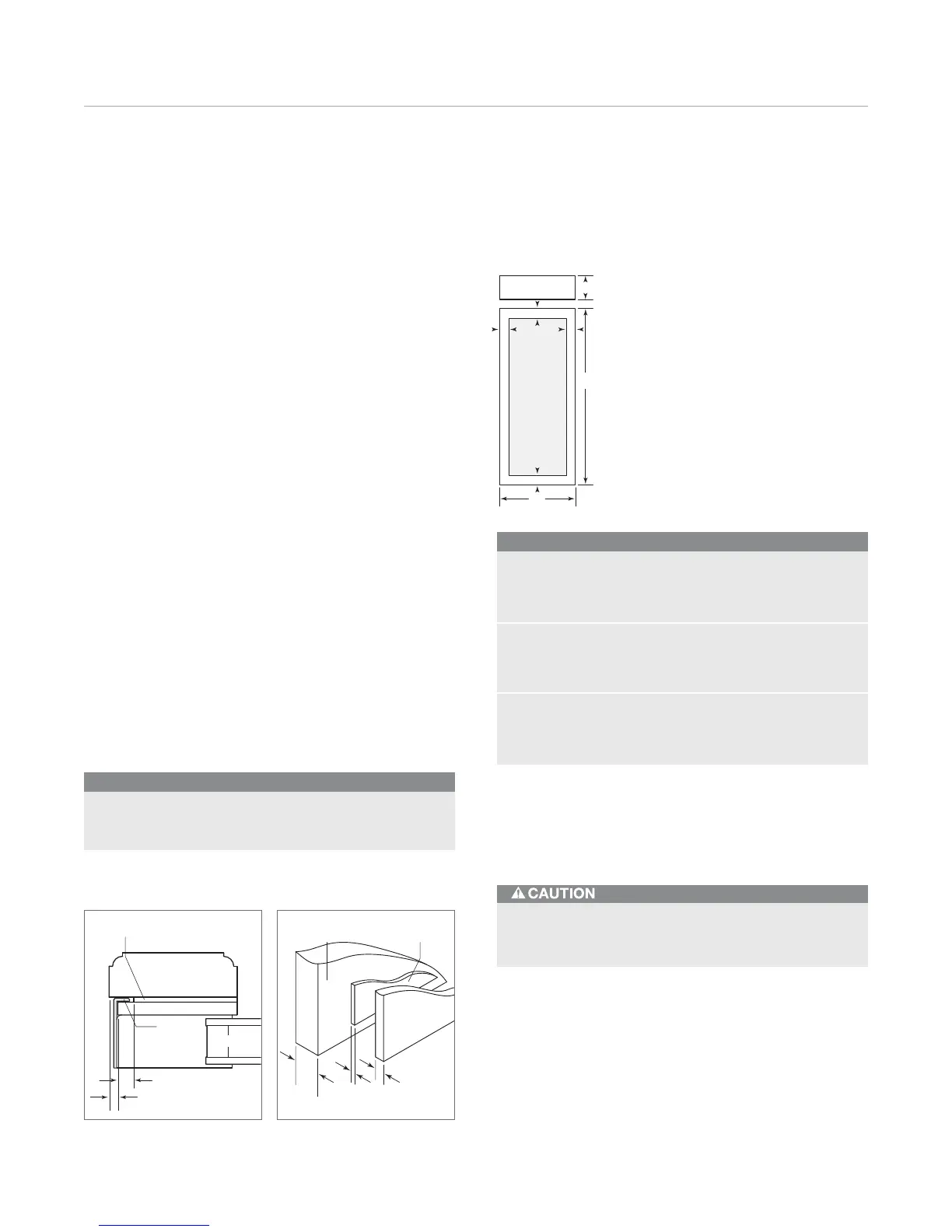

OVERLAY PANEL SPECIFICATIONS
Wine Storage 75
subzero.com/specs
Do not exceed overlay panel dimensions, as this could
cause damage to panels and the Sub-Zero unit.
1
/8"
(3)
OVERLAY PANEL
SPACER PANEL
BACKER PANEL
TRIM
5
/16" (8) min
DOOR FRAME
GLASS
Panel assembly cross section. Panel assembly rear view.
1
/4" (6)
.10" (3)
OVERLAY
PANEL
SPACER
PANEL
BACKER
PANEL
3
/4"
(19)
typical
Grille panel dimensions listed are for a standard 84" (2134)
overall height of the unit. For an 83" (2108) overall height,
subtract 1"
(25) from grille panel height dimensions. For an
88"
(2235) overall height, add 4" (102) to height dimensions.
WS-30 Overlay
DOOR W H
Overlay Panel 30" (762) 69
3
/4" (1772)
Spacer Panel 29
1
/8" (740) 68
15
/16" (1751)
Backer Panel 29
3
/4" (756) 69
9
/16" (1767)
GRILLE WH
Overlay Panel 30" (762) 9
1
/4" (235)
Spacer Panel 29
1
/8" (740) 8
5
/16" (211)
Backer Panel 29
3
/4" (756) 8
15
/16" (227)
WINDOW W H
Cut-Out 23
1
/2" (597) 63
1
/4" (1607)
A
Location 3
1
/4" (83)
H
W
H
AA
A
A
Overlay Panel Requirements
MODEL WS-30
Max Panel Weight 75 lbs (34 kg)
Min Panel Thickness
5
/8" (16)
