Wine Storage 80
Handle Hardware
For overlay and integrated models, handle hardware must
be provided. Optional stainless steel tubular and pro
handles are available through your authorized Sub-Zero
dealer.
The door frame has numerous mounting holes on each
side to accommodate handle hardware. Using the pre-
drilled holes to attach the handle will provide the best
alignment and strength.
IMPORTANT NOTE: Refer to the full-scale template at the
end of this section for a profile of the door frame and
position of the glass. Do not drill through the glass.
Side Panels
MODEL WS-30
When planning for side panels with the installation of the
model WS-30, you need to be aware of the space configu-
ration to achieve a pleasing fit. Depending on the exact
panel you are using, the height of the panel may vary.
IMPORTANT NOTE: The use of side panels may change
the width of your rough opening.
When installing a model WS-30 with a custom side panel,
an accessory kit is required. Stainless steel side panels
are also available through your authorized Sub-Zero dealer.
The side panel will need to be a minimum of 24"
(610) deep
and
1
/2" (13) thick. Refer to the illustrations below for side
panel dimensions. Routing will be necessary so that the
side panel fits flush against the side of the unit.

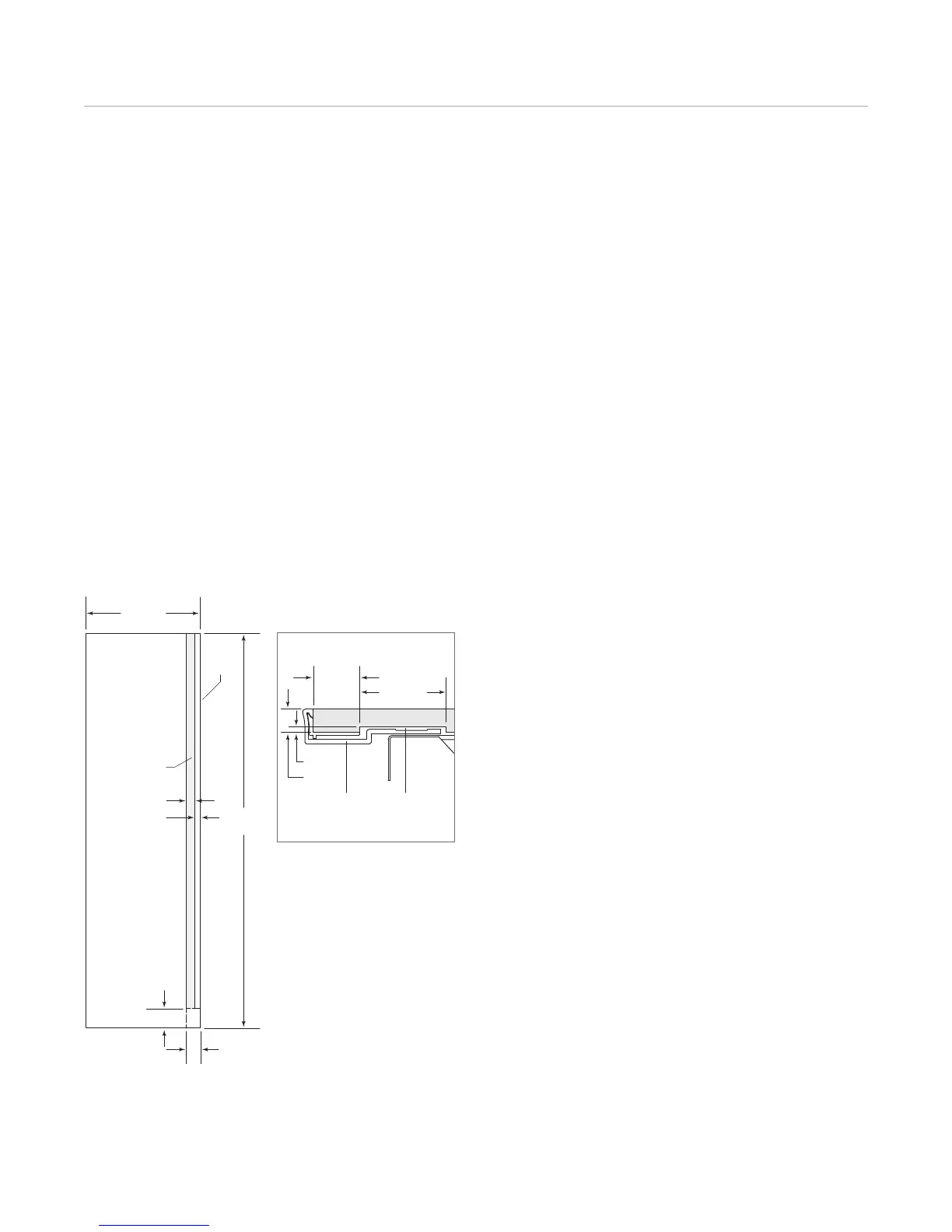

Routing detail.
MAIN
FRAME
SIDE PANEL
ROUTING
1" (25)
1
7
/8" (48)
1
/8" (3)
1
/2" (13)
84"
(2134)
24" (610)
OPTIONAL
TOE KICK
CUT-OUT
4" (102)
1
7
/8"(48)
1" (25)
ROUT TO
1
/8" (3)
FRONT
OF SIDE
PANEL
2
5
/8"
(67)
Side panel dimensions.
