18
|
Sub-Zero Customer Care 800.222.7820
Completion
Reinstall the drain pan and verify it is in the proper position.
Install the kickplate using screws to attach it to brackets on
the inside of each roller base. Refer to the illustration below.
The kickplate must be removable for service. The oor
cannot interfere with removal. Refer to the label mounted on
the kickplate support for height clearance.
Turn power on by touching POWER on the control panel.
Install the light diffuser by aligning the slots of the light
diffuser onto the bracket pegs and pulling forward so the
tabs on the slots engage the bracket pegs. Refer to the
illustration below.
INSTALLATION
PEG
SLOT

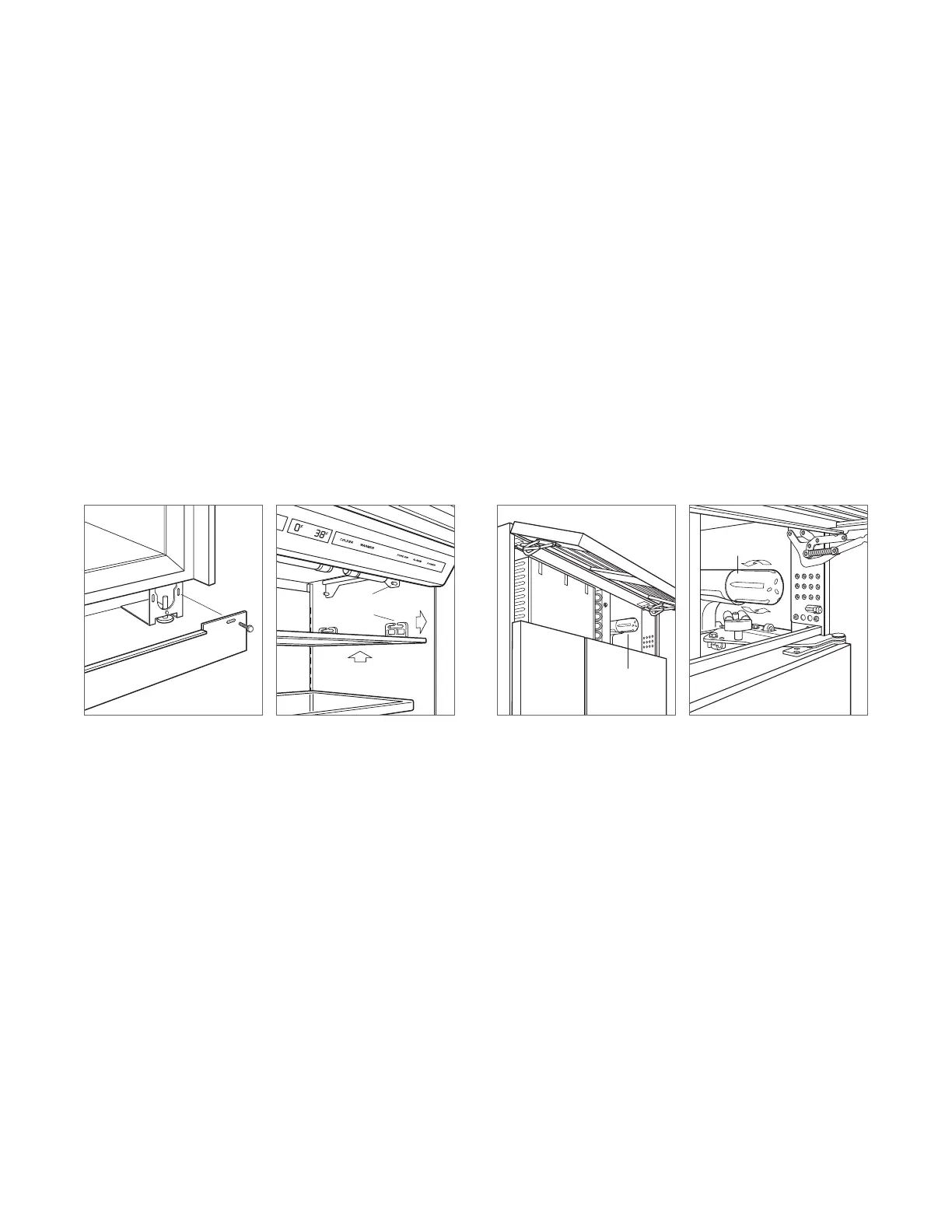

Kickplate installation.
Light diffuser installation.
WATER FILTER BYPASS
If the water ltration system will not be utilized, it can be
placed in water lter bypass mode by removing the water
lter. Refer to the illustration below. Follow these steps to
remove the water lter:
1 Pull out on the bottom edge of the grille assembly and
tilt the grille frame upward.
2 To remove the cartridge, rotate the cartridge counter-
clockwise one-quarter turn and pull out. Refer to the
illustration below.
WATER
FILTER
WATER FILTER
Location of water lter.
Water lter removal.
