Sub-Zero BI-42UFDID/O Installation Guide

subzero.com | 17
INSTALLATION
ANCHORING
After the unit has been leveled and door adjustment com-
pleted, anchor the unit to the opening to ensure a proper t
and secure installation.
To anchor the top of the unit, open the grille and install the
screws provided, through the grille frame into cabinetry.

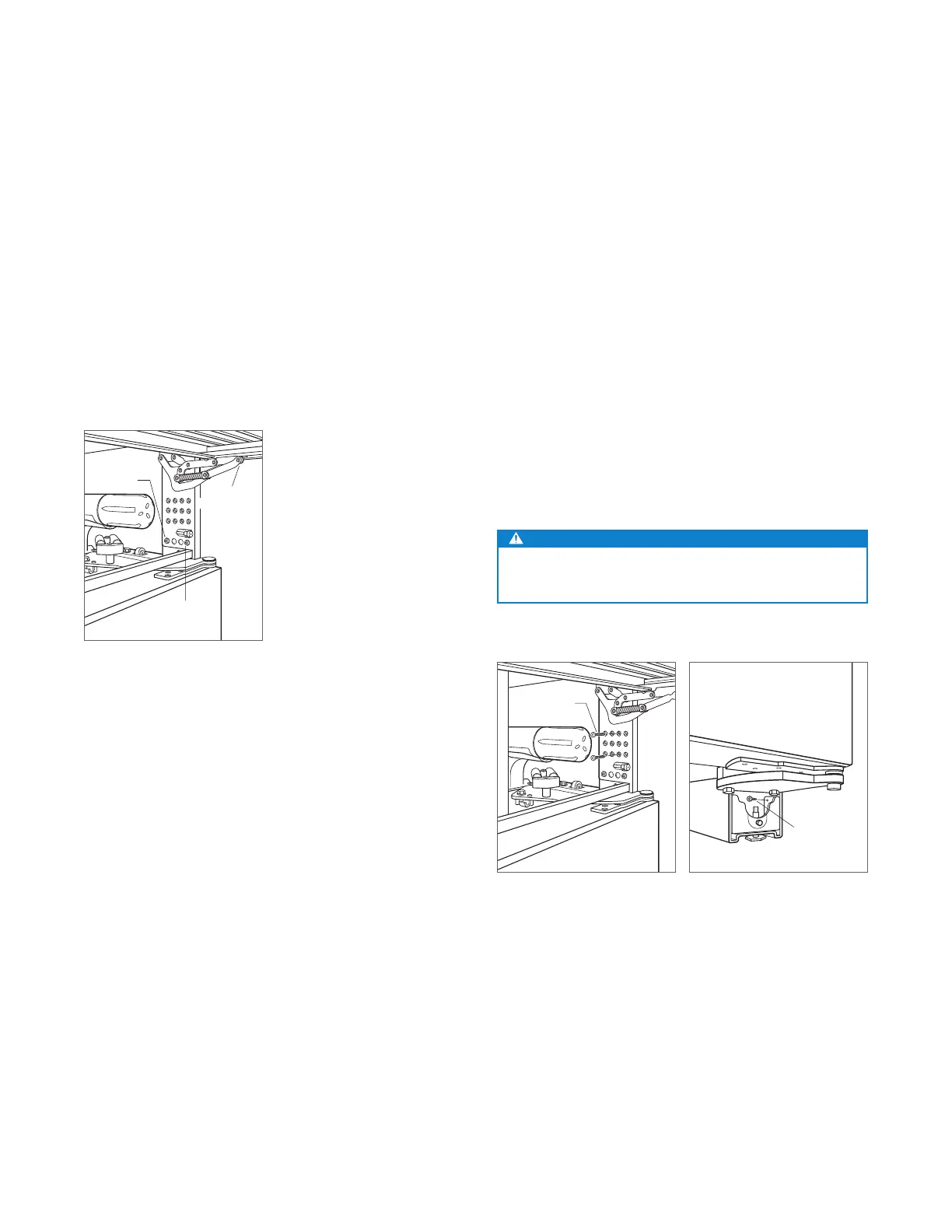

There are several hole locations. Refer to the illustration
below. Check for proper door clearance by opening the
door.
To anchor the bottom of the unit, drive a screw through the
side hole inside each roller base assembly. The screw will
need to go in at an angle to attach properly. Refer to the
illustration below. Additional material may be needed behind
the cleat to ensure sufcient anchoring.
CAUTION
If the screws provided are not suitable for the installa-
tion, use adequate screws.
ANCHORING
SCREWS
ANCHORING
SCREW
Top anchoring. Bottom anchoring.
Completion
GRILLE INSTALLATION
Install the grille assembly and check for proper t. The grille
is designed to rest on the upper door hinge(s) to minimize
the reveal between the top of the door and bottom of the
grille. To eliminate interference, the grille height can be
adjusted. Loosen the four grille adjustment screws (two on
each side) and adjust the grille height as needed. Refer to
the illustration below.
BACK GRILLE
SCREW
FRONT
GRILLE SCREW
GRILLE
ADJUSTMENT
SCREW
Grille height adjustment.
