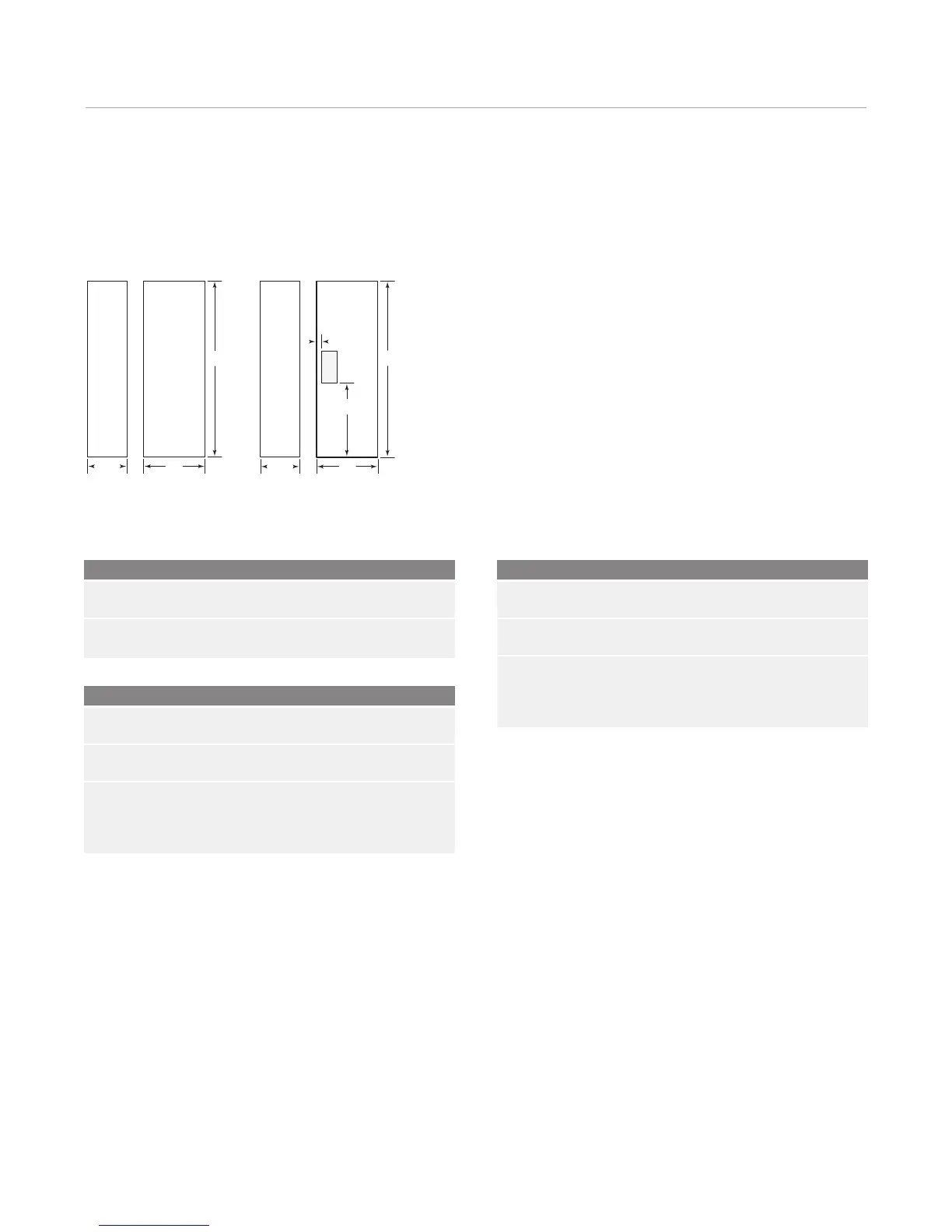

Framed Panel Specifications
BI-36S / BI-42S / BI-48S BI-42SD / BI-48SD
WW
H
WW
H
A
B
For models BI-42SD and BI-48SD, panel thickness in the dis-
penser area can range from
1
/4" (6) to a maximum of
1
1
/8" (29). If the panel is thicker, you must rout out a minimum
1
/4" (6) flat landing area to accommodate the glasswell bezel.
Model BI-36S
REFRIGERATOR WH
Door Panel 19
13
/16" (503) 69
9
/16" (1767)
FREEZER WH
Door Panel 15
7
/16" (392) 69
9
/16" (1767)
Models BI-42S and BI-42SD
REFRIGERATOR WH
Door Panel 24
13
/16" (630) 69
9
/16" (1767)
FREEZER WH
Door Panel 16
7
/16" (418) 69
9
/16" (1767)
BI-42SD WH
Dispenser Cut-Out 5
7
/8" (149) 12
7
/16" (316)
AB
Cut-Out Location 1
7
/8" (48) 28
3
/4" (730)
Models BI-48S and BI-48SD
REFRIGERATOR WH
Door Panel 28
1
/2" (724) 69
9
/16" (1767)
FREEZER WH
Door Panel 18
3
/4" (418) 69
9
/16" (1767)
BI-48SD WH
Dispenser Cut-Out 5
7
/8" (149) 12
7
/16" (316)
AB
Cut-Out Location 1
7
/8" (48) 28
3
/4" (730)
