Manual Freezer Evaporator Defrost
Manual Freezer Evaporator Defrost was incorporated into the electronic control to assist a customer that may inad-
vertently leave the freezer door ajar, causing a heavily frosted evaporator, and may also be utilized by a Service
Technician for servicing and diagnostics.
To initiate manual freezer evaporator defrost the unit must be ON, then press and hold the ICE MAKER key for five
(5) seconds, at this time the freezer evaporator temperature will be displayed at left in the LCD with the refrigerator
evaporator temperature displayed at right for five (5) seconds (See Figure 3-28), then compartment temperatures
will be displayed (See Figure 3-29).
NOTES:
• Though the refrigerator evaporator temperature is also shown when manual defrost is initiated, only the freezer
evaporator is affected.
• Manual Freezer Evaporator Defrost will not operate if unit is in Sabbath Mode.
• The defrost terminator will not allow power to the defrost heater if the evaporator is above 30°F (1°C).

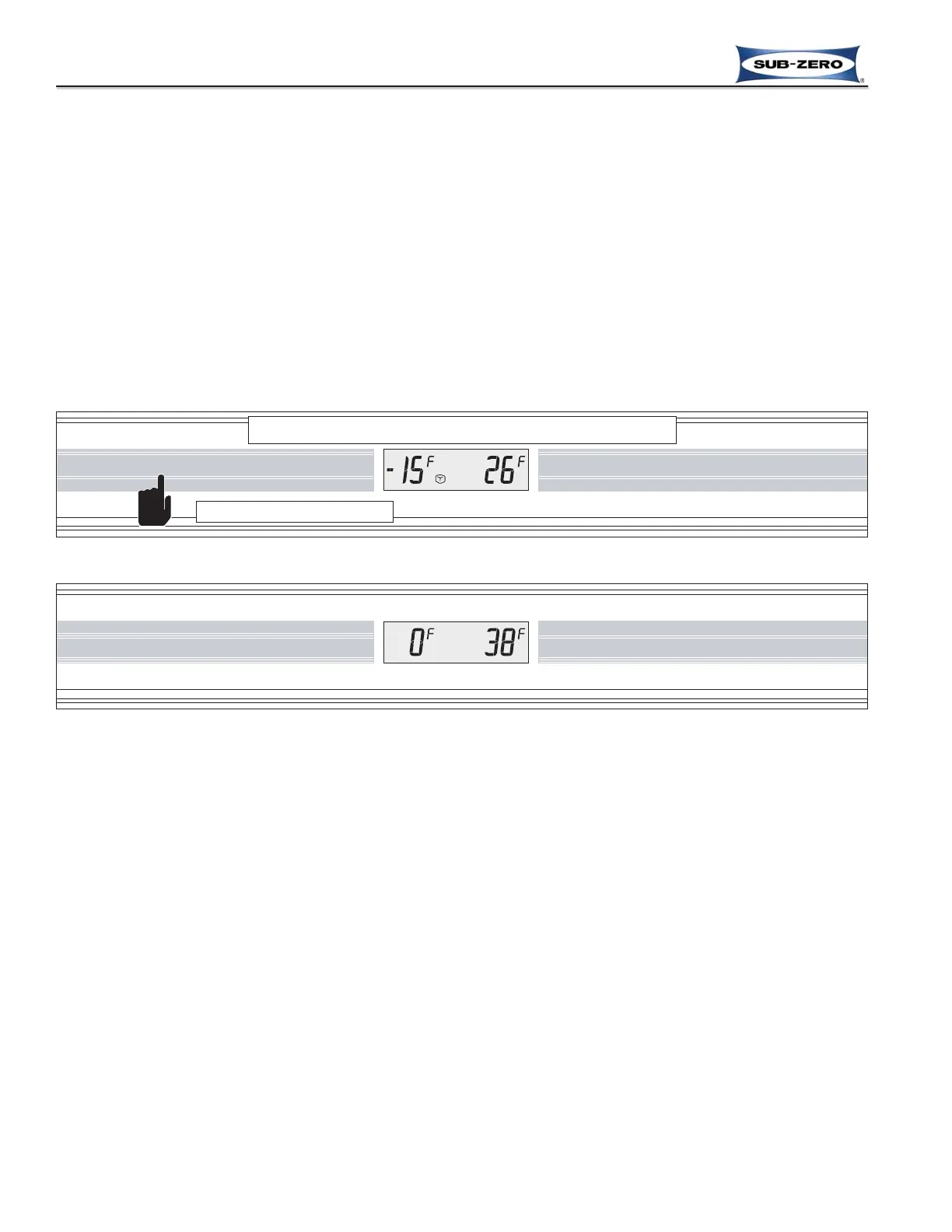

Figure 3-28. Initiate Manual Freezer Evaporator Defrost - Press and Hold ICE MAKER Key for 5 Seconds
Press and hold for 5 seconds
Evaporator Temperatures Displayed for 5 Seconds when Initiated
