Sr.
No.
Parameter setting method
Description of parameters and functions.
Parameter
Once the set key is pressed, the controller
goes into the normal mode and displays
the voltage readings.
12
Function :To end programming.
To change the end parameter,
press the set key.
Technical Data

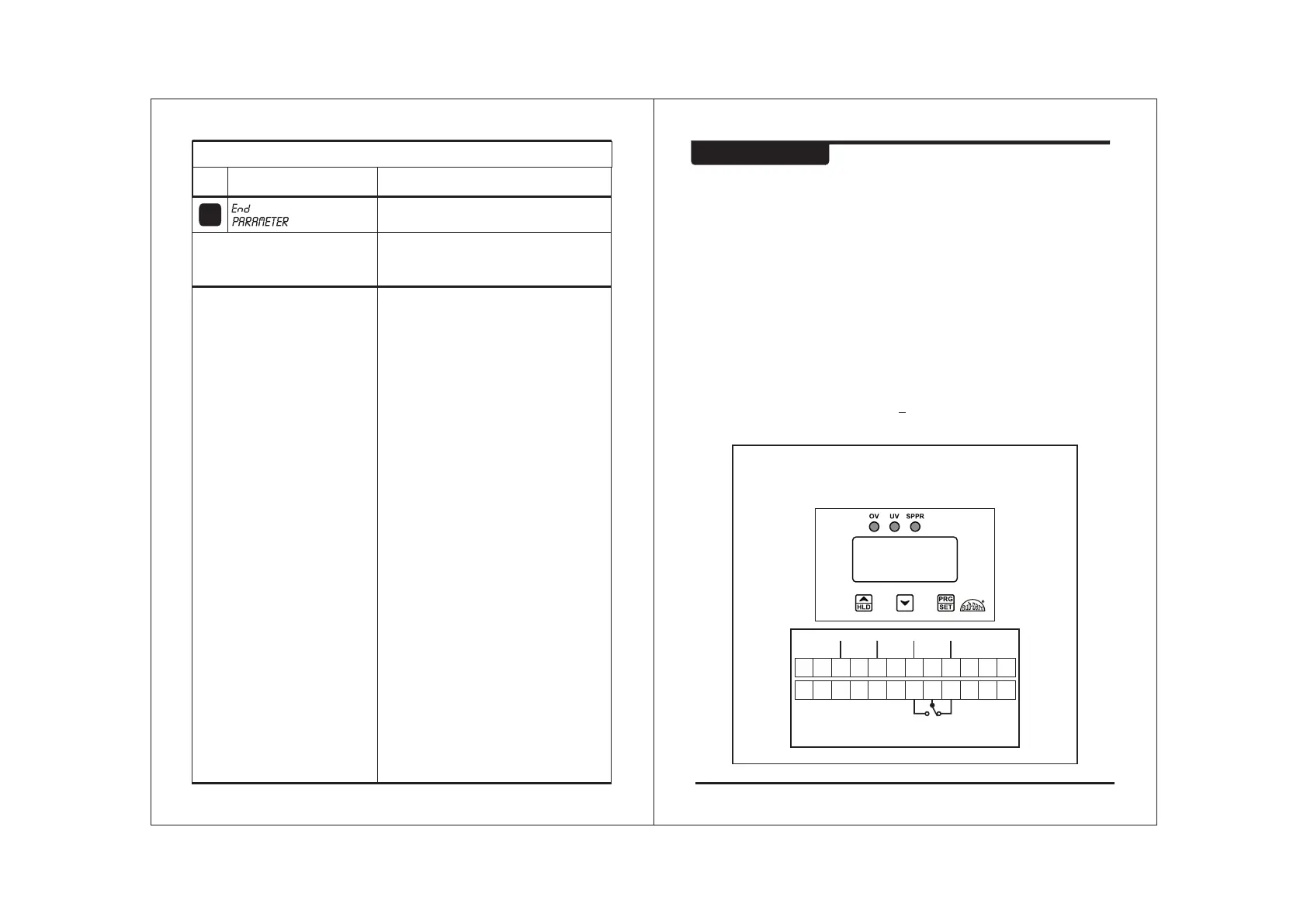

Three Phase Voltage Monitor (VMRC- 10/3)
Front View & Connetion Diagram for
RELAY
NCCNO
7
8 9
R
15 17
19
21
Y B N
General Specification :
Under voltage and Over voltage detection.
Application : Voltage and phase sequence monitoring and controlling.
Connections : Screw terminals : < 2.5sqmm one wire/terminal only.
Mounting : Din rail mounting.
Main Functions : Voltage Monitoring.
Phase Sequence Monitoring.
Phase Loss and Phase Unbalance detection.
Uv and Ov Detection.
Settable Uv and Ov Parameter.
Input : R, Y, B Phases and Neutral Input.
Output : Alarm Relay : 5A Resistive.
Input Voltage Range from 100VAC to 265VAC.
Dimensions : Front : 70mm X 45mm,
Depth : 72.3 mm
VMRC-10/3
34
35
To Next Page
