M Series Wall Oven
M Series Wall Oven
Component Removal
3-8
#824974 - Revision C - November, 2016

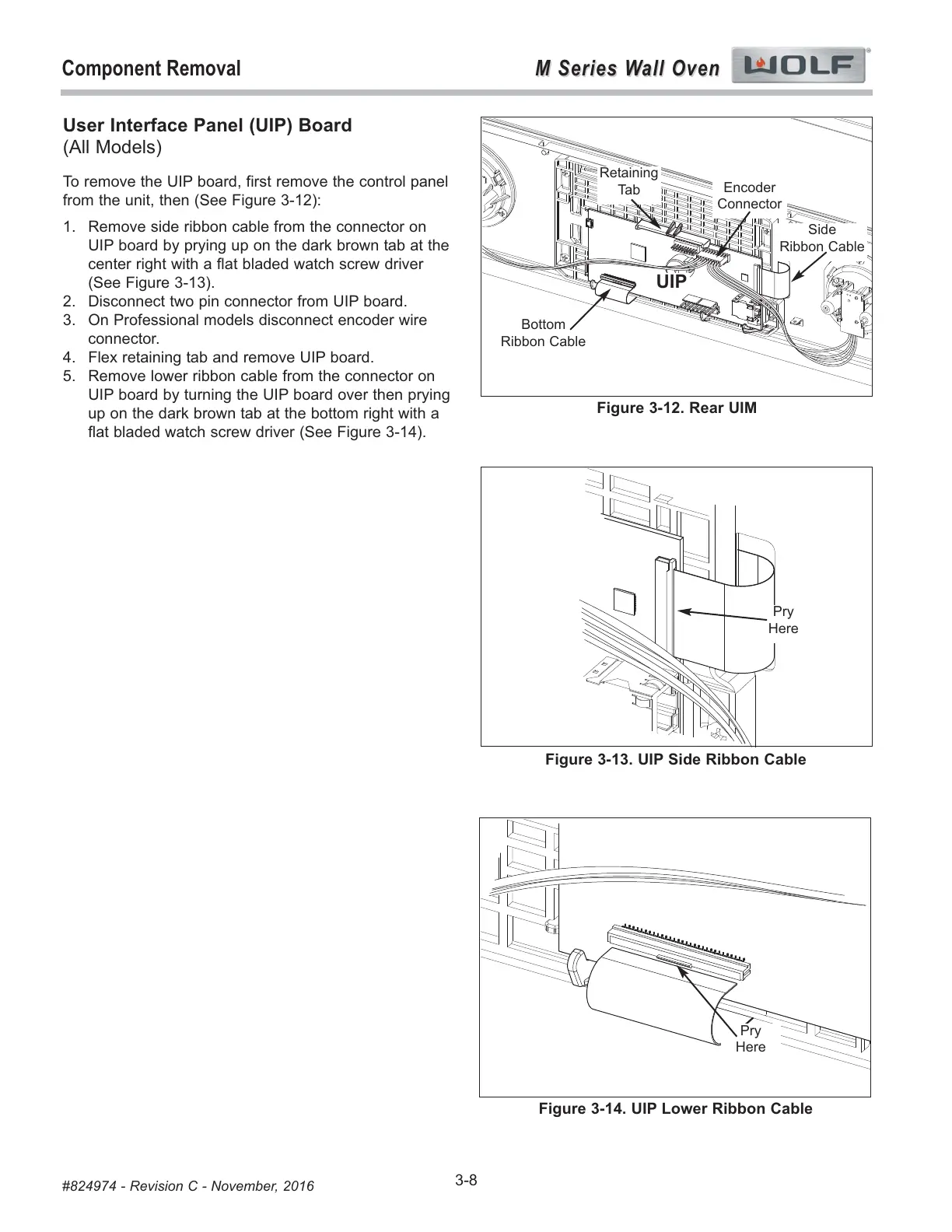

User Interface Panel (UIP) Board
(All Models)
To remove the UIP board, first remove the control panel
from the unit, then (See Figure 3-12):
1. Remove side ribbon cable from the connector on
UIP board by prying up on the dark brown tab at the
center right with a flat bladed watch screw driver
(See Figure 3-13).
2. Disconnect two pin connector from UIP board.
3. On Professional models disconnect encoder wire
connector.
4. Flex retaining tab and remove UIP board.
5. Remove lower ribbon cable from the connector on
UIP board by turning the UIP board over then prying
up on the dark brown tab at the bottom right with a
flat bladed watch screw driver (See Figure 3-14).
Figure 3-14. UIP Lower Ribbon Cable
Figure 3-13. UIP Side Ribbon Cable
Pry
Here
Pry
Here
Encoder
Connector
Retaining
Tab
Side
Ribbon Cable
Bottom
Ribbon Cable
UIP
Figure 3-12. Rear UIM
