Large Oven Light Bulb (All Models)
To remove the large oven light bulb, first remove the
rack guide, then (See Figure 3-23):
1. Use a small flat blade screwdriver pry light lens
away from housing.
2. Remove bulb by pulling straight up from socket.
3. Use a clean dry cloth to insert new bulb.
4. Install light lens.
NOTE: Oils from fingers and hands that are transferred
to bulb can shorten the life of the bulb.
Small Oven Light Bulb (All Models)
The small oven light has two metal clips on the light
lens. To remove the small light lens, first remove the
oven racks, then (See Figure 3-24):
1. Use a small flat blade screwdriver pry light lens
away from housing on left hand side of light lens.
2. Pull light lens down and to the left.
3. Remove bulb by pulling straight out to the right.
4. With a clean dry cloth insert new bulb.
5. Install left side of light lens into metal clip.
6. Depress clip on right hand side of light lens and
insert into housing.
NOTE: Oils from fingers and hands that are transferred
to bulb can shorten the life of the bulb.
Intake Baffle (All Models)
To remove the intake baffle, first remove rack guides,
then (See Figure 3-25):
1. Use a 1/4” nut driver or T-20 to extract screws
and washers.
2. Remove intake baffle.

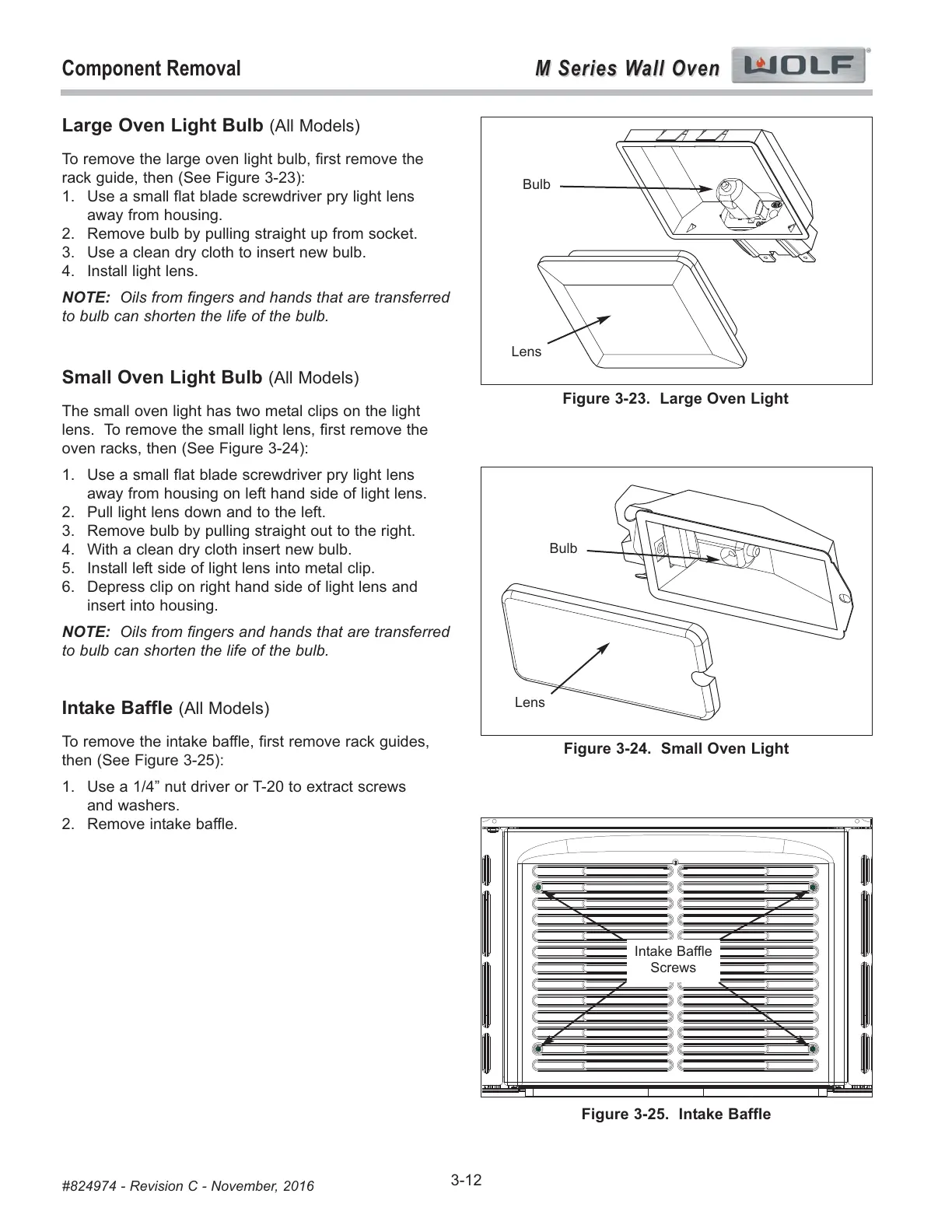

Figure 3-23. Large Oven Light
Bulb
Lens
Figure 3-24. Small Oven Light
Bulb
Lens
Intake Baffle
Screws
Figure 3-25. Intake Baffle
