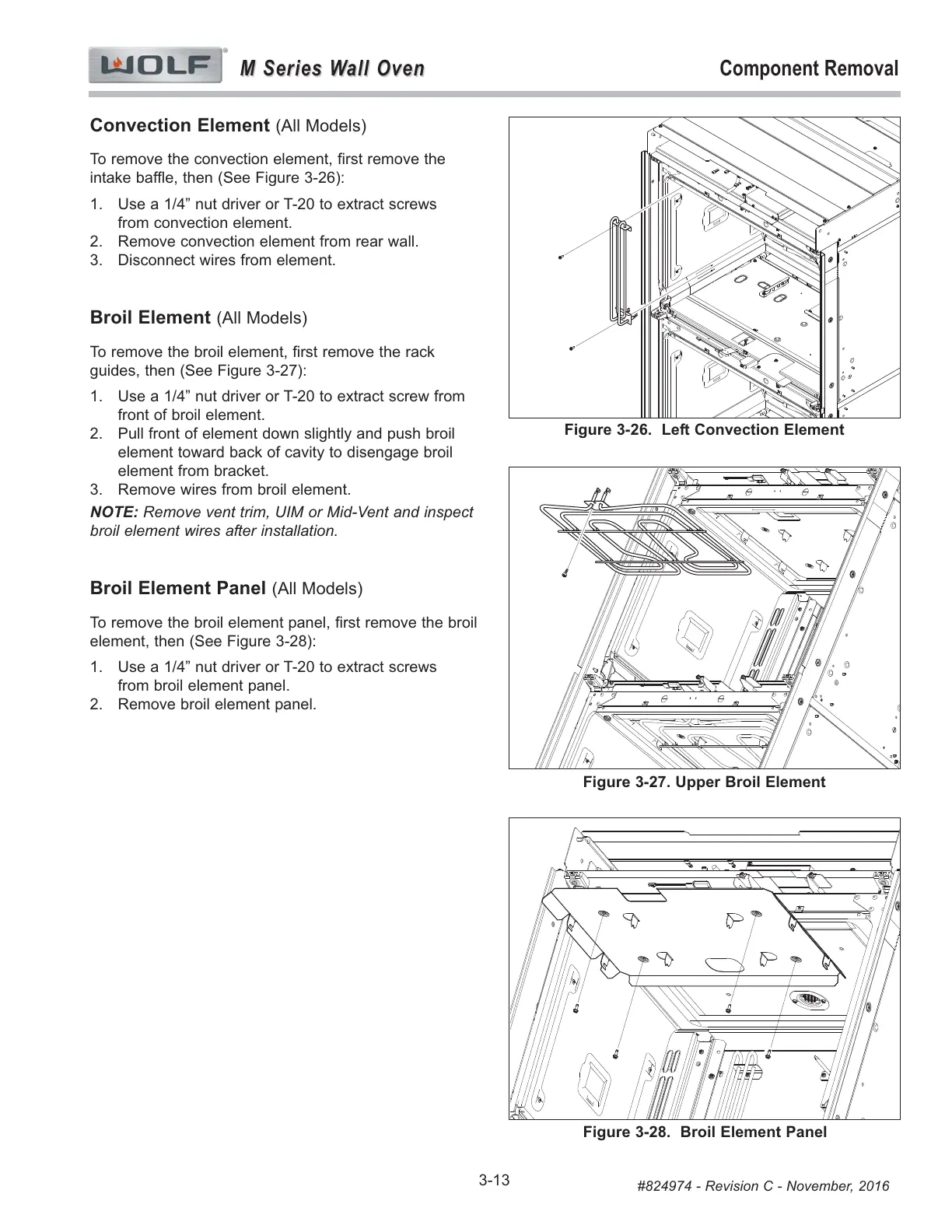

Component Removal
M Series Wall Oven
M Series Wall Oven
3-13
#824974 - Revision C - November, 2016
Convection Element (All Models)
To remove the convection element, first remove the
intake baffle, then (See Figure 3-26):
1. Use a 1/4” nut driver or T-20 to extract screws
from convection element.
2. Remove convection element from rear wall.
3. Disconnect wires from element.
Broil Element (All Models)
To remove the broil element, first remove the rack
guides, then (See Figure 3-27):
1. Use a 1/4” nut driver or T-20 to extract screw from
front of broil element.
2. Pull front of element down slightly and push broil
element toward back of cavity to disengage broil
element from bracket.
3. Remove wires from broil element.
NOTE: Remove vent trim, UIM or Mid-Vent and inspect
broil element wires after installation.
Broil Element Panel (All Models)
To remove the broil element panel, first remove the broil
element, then (See Figure 3-28):
1. Use a 1/4” nut driver or T-20 to extract screws
from broil element panel.
2. Remove broil element panel.
Figure 3-26. Left Convection Element
Figure 3-28. Broil Element Panel
Figure 3-27. Upper Broil Element
