M Series Wall Oven
M Series Wall Oven
Component Removal
3-14
#824974 - Revision C.1 - March, 2018

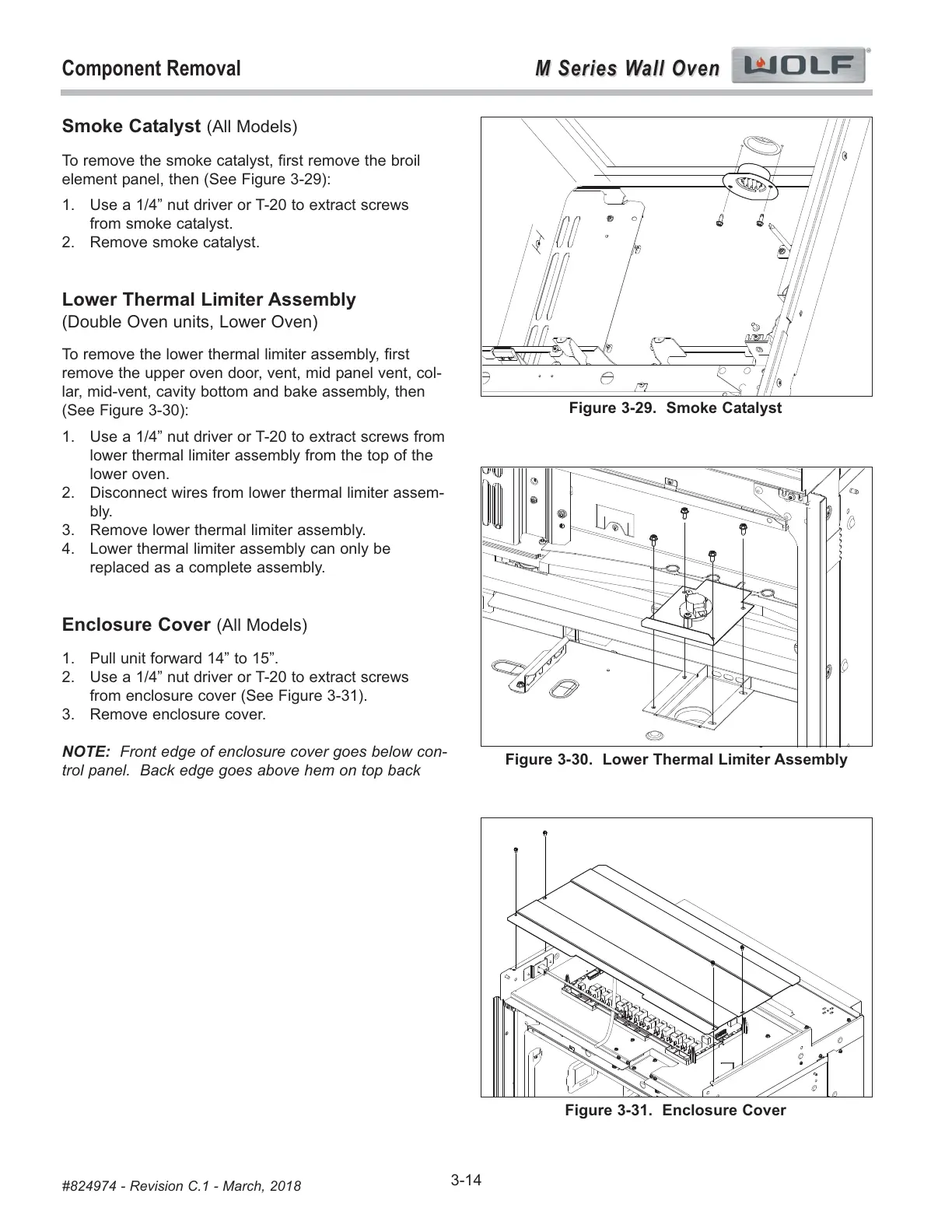

Smoke Catalyst (All Models)
To remove the smoke catalyst, first remove the broil
element panel, then (See Figure 3-29):
1. Use a 1/4” nut driver or T-20 to extract screws
from smoke catalyst.
2. Remove smoke catalyst.
Lower Thermal Limiter Assembly
(Double Oven units, Lower Oven)
To remove the lower thermal limiter assembly, first
remove the upper oven door, vent, mid panel vent, col-
lar, mid-vent, cavity bottom and bake assembly, then
(See Figure 3-30):
1. Use a 1/4” nut driver or T-20 to extract screws from
lower thermal limiter assembly from the top of the
lower oven.
2. Disconnect wires from lower thermal limiter assem-
bly.
3. Remove lower thermal limiter assembly.
4. Lower thermal limiter assembly can only be
replaced as a complete assembly.
Enclosure Cover (All Models)
1. Pull unit forward 14” to 15”.
2. Use a 1/4” nut driver or T-20 to extract screws
from enclosure cover (See Figure 3-31).
3. Remove enclosure cover.
NOTE: Front edge of enclosure cover goes below con-
trol panel. Back edge goes above hem on top back
Figure 3-29. Smoke Catalyst
Figure 3-30. Lower Thermal Limiter Assembly
Figure 3-31. Enclosure Cover
