Component Removal
M Series Wall Oven
M Series Wall Oven
3-15
#824974 - Revision C - November, 2016
Relay Board (All Models)
To remove the relay board, first remove the enclosure
cover, then (See Figure 3-32):
1. Disconnect all electrical connectors from relay
board.
2. Pull relay board and frame toward front of oven.
3. Lift board and frame up and remove from unit.
Serial # Break:
Single Oven: 16219812 - 16219842, and above 16223239
Double Oven: 16228579 - 16228656, and above 16230892
Top Back Cover (Models Below Serial # Range)
To remove the top back cover, first remove the unit from
the installation, then (See Figure 3-33):
1. Use a 1/4” nut driver or T-20 to extract screws
from top back cover.
2. Remove top back cover.
Top Back Cover (Models Above Serial # Range)
To remove the top back cover, first remove the unit from
the installation, then (See Figure 3-34):
1. Use a 1/4” nut driver or T-20 to extract screws
from top back cover.
2. Remove top back cover.

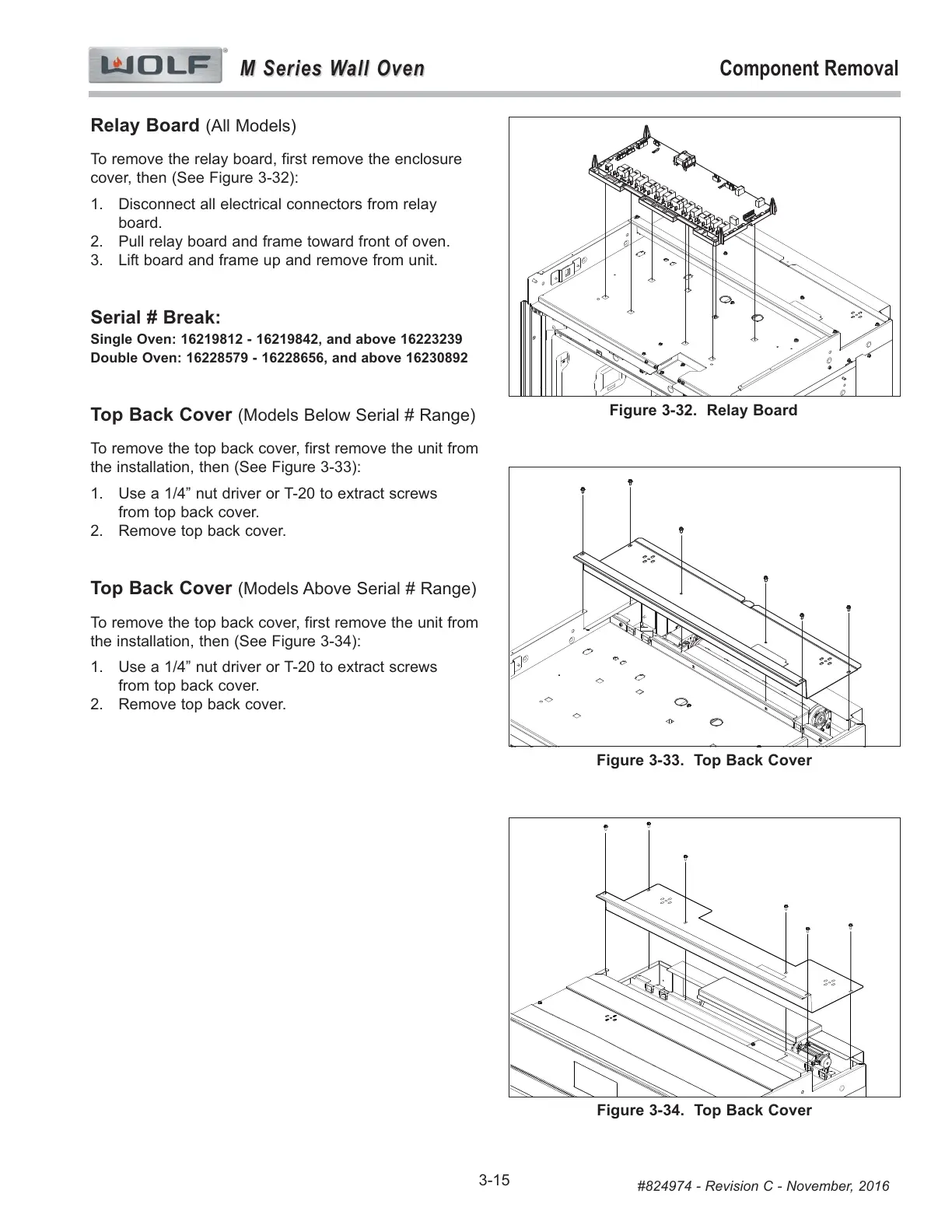

Figure 3-32. Relay Board
Figure 3-33. Top Back Cover
Figure 3-34. Top Back Cover
