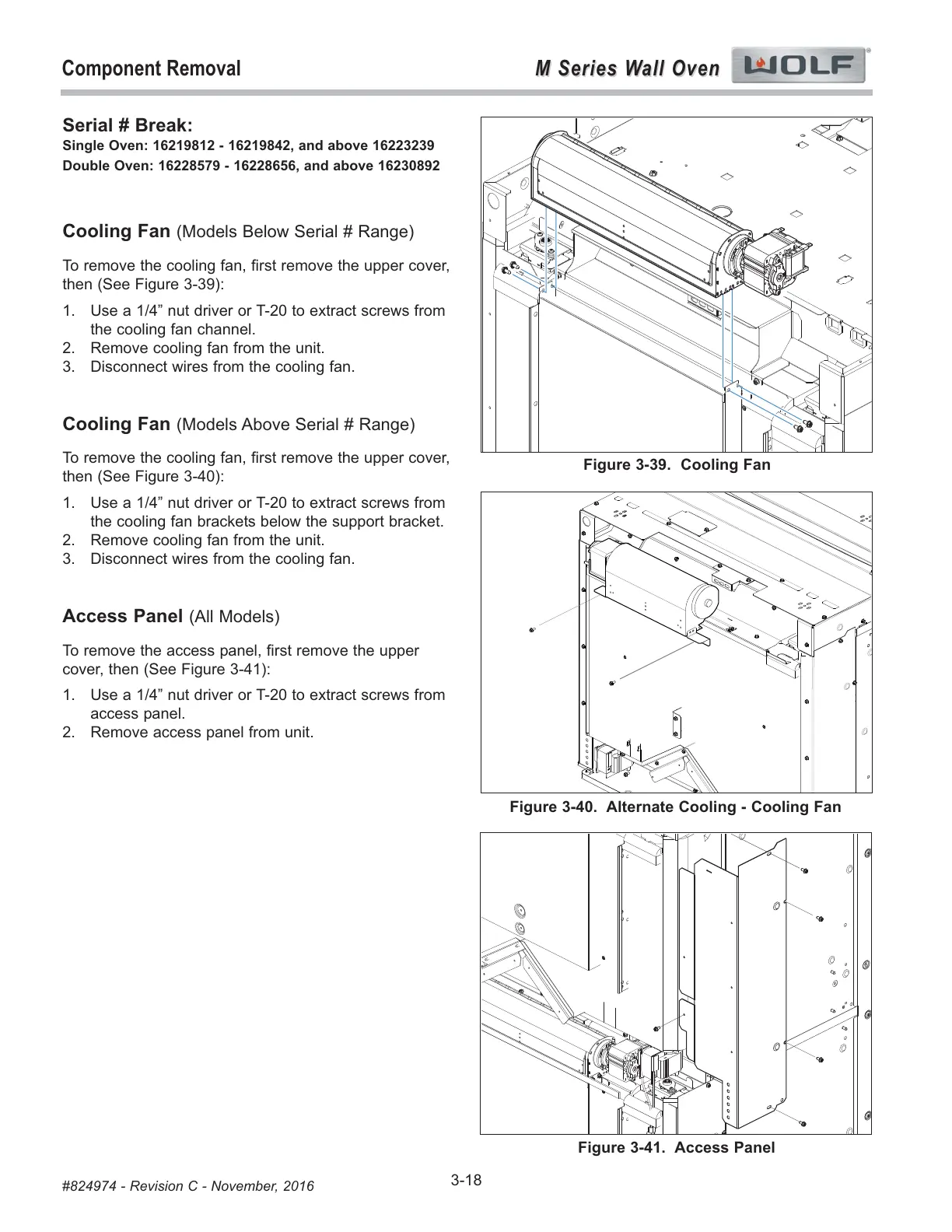

M Series Wall Oven
M Series Wall Oven
Component Removal
3-18
#824974 - Revision C - November, 2016
Serial # Break:
Single Oven: 16219812 - 16219842, and above 16223239
Double Oven: 16228579 - 16228656, and above 16230892
Cooling Fan (Models Below Serial # Range)
To remove the cooling fan, first remove the upper cover,
then (See Figure 3-39):
1. Use a 1/4” nut driver or T-20 to extract screws from
the cooling fan channel.
2. Remove cooling fan from the unit.
3. Disconnect wires from the cooling fan.
Cooling Fan (Models Above Serial # Range)
To remove the cooling fan, first remove the upper cover,
then (See Figure 3-40):
1. Use a 1/4” nut driver or T-20 to extract screws from
the cooling fan brackets below the support bracket.
2. Remove cooling fan from the unit.
3. Disconnect wires from the cooling fan.
Access Panel (All Models)
To remove the access panel, first remove the upper
cover, then (See Figure 3-41):
1. Use a 1/4” nut driver or T-20 to extract screws from
access panel.
2. Remove access panel from unit.
Figure 3-39. Cooling Fan
Figure 3-41. Access Panel
Figure 3-40. Alternate Cooling - Cooling Fan
