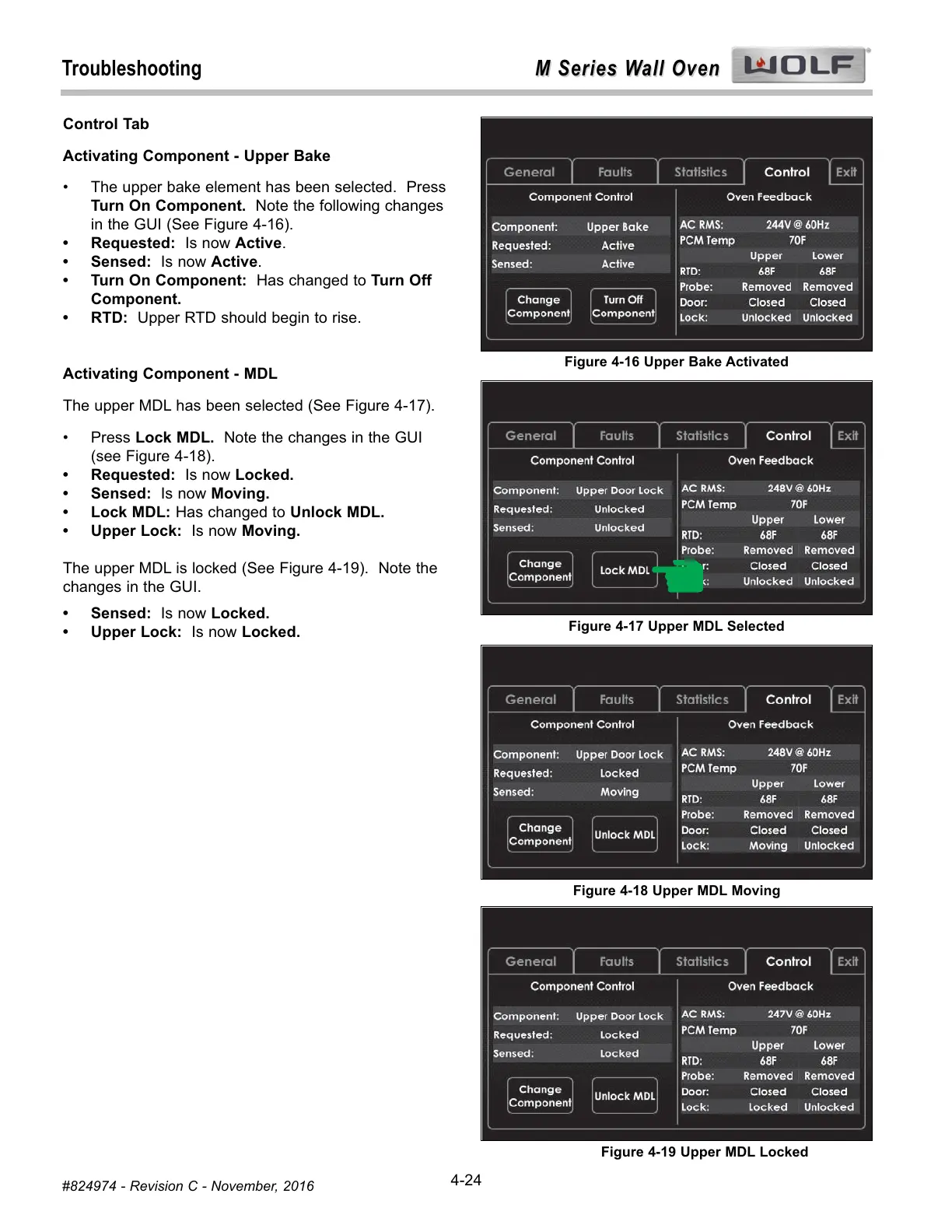

M Series Wall Oven
M Series Wall Oven
Troubleshooting
4-24
#824974 - Revision C - November, 2016
Control Tab
Activating Component - Upper Bake
The upper bake element has been selected. Press•
Turn On Component. Note the following changes
in the GUI (See Figure 4-16).
Requested: Is now Active.•
Sensed: Is now Active.•
Turn On Component: Has changed to Turn Off•
Component.
RTD: Upper RTD should begin to rise.•
Activating Component - MDL
The upper MDL has been selected (See Figure 4-17).
Press Lock MDL. Note the changes in the GUI•
(see Figure 4-18).
Requested: Is now Locked.•
Sensed: Is now Moving.•
Lock MDL: Has changed to Unlock MDL.•
Upper Lock: Is now Moving.•
The upper MDL is locked (See Figure 4-19). Note the
changes in the GUI.
Sensed: Is now Locked.•
Upper Lock: Is now Locked.•
Figure 4-16 Upper Bake Activated
Figure 4-17 Upper MDL Selected
Figure 4-18 Upper MDL Moving
Figure 4-19 Upper MDL Locked
